Ferrari 488 Pista — [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM (diagram 0186)

Exploded view of the [electrical system] - f.11 - anti-theft system on the Ferrari 488 Pista, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

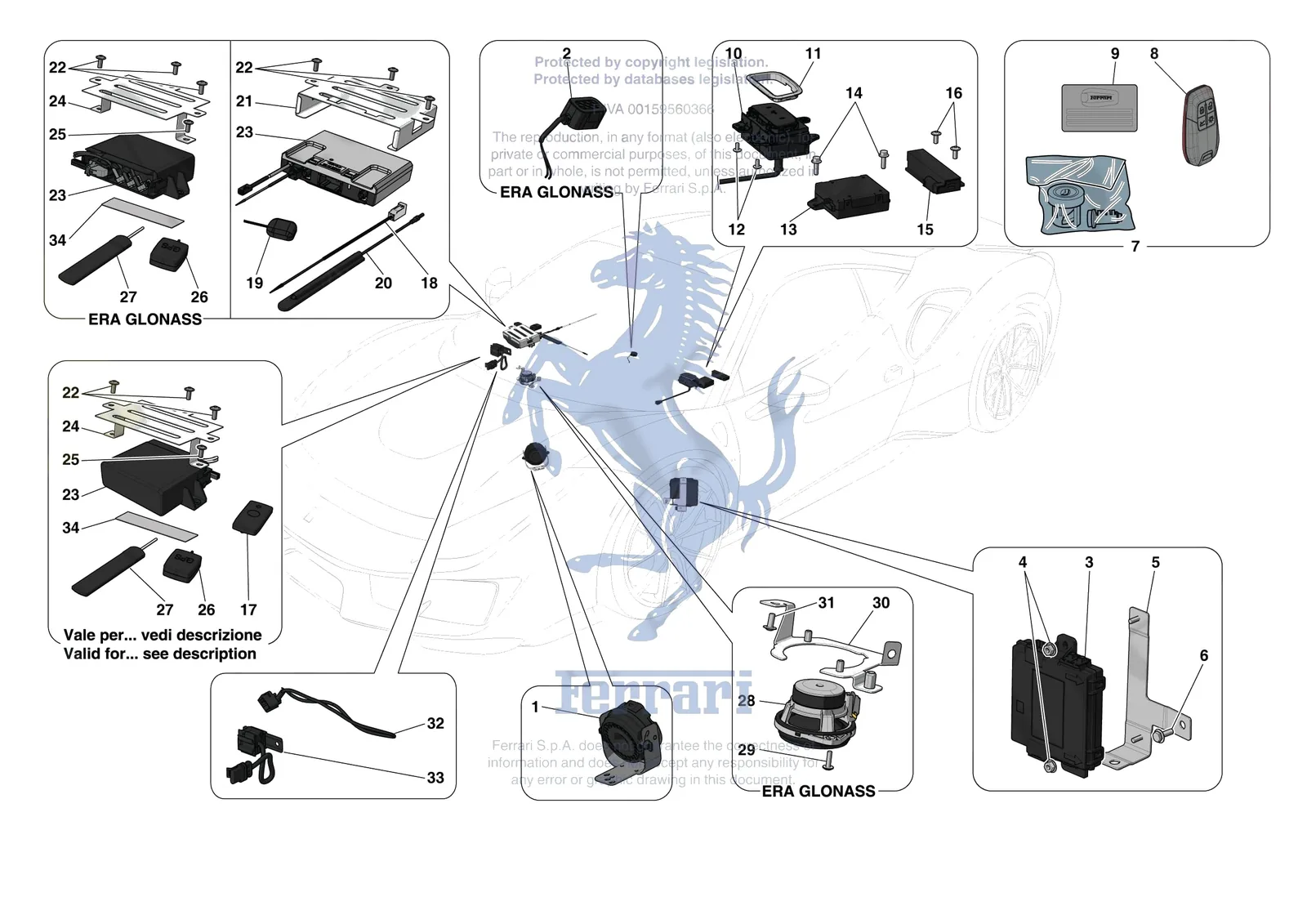

Ferrari 488 Pista [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
235627Ferrari ADR5 Satellite Anti-Theft System ECU - 235627Price on requestContact us for price and availability
310779Ferrari Passive Start Control Unit - 310779SupersededOrder 328097 instead
317012Ferrari Passive Start ECU - 317012SupersededOrder 328098 instead
277205Ferrari Satellite Anti-Theft System Ecu - 277205SupersededOrder 307603 instead
293779Ferrari Satellite Anti-Theft System Ecu - 293779$4,002.68Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
285149Ferrari Siren Unit Complete - 285149SupersededOrder 294965 instead
909564Ferrari Start Disable Wiring Harness - 909564SupersededOrder 982069 instead
1294965Ferrari Siren Unit Complete - 294965$232.07Available, ships in 3-6 days
1315686Ferrari Siren Unit Complete - 315686$282.82Special order, ships in 7-14 days
2333337Ferrari Gsm Microphone - 333337$319.62Special order, ships in 7-14 days
3328097Ferrari Passive Start ECU - 328097$614.67Special order, ships in 7-14 days
3328098Ferrari Passive Start ECU - 328098$614.67Special order, ships in 7-14 days
414040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
5315027Ferrari Passive Start Ecu Mounting Bracket - 315027$41.82Special order, ships in 7-14 days
611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
7328976Ferrari Key And Block Kit - 328976$2,177.79Special order, ships in 7-14 days
7329045Ferrari Key And Block Kit - 329045$2,177.79Special order, ships in 7-14 days
8328404Ferrari Keyless Key Kit - 328404$1,549.03Special order, ships in 7-14 days
96326163Ferrari Secret Card Label For Keys - 6326163$4.39Special order, ships in 7-14 days
10343201Ferrari Switch Glonass 142M Vs - 343201$2,905.45Special order, ships in 7-14 days
11792528Ferrari Era Glonass Switch Surround - 792528$110.78Special order, ships in 7-14 days
12290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
13293416Ferrari Master Dipole Anti-Lift Sensor - 293416$721.22Special order, ships in 7-14 days
1416285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
15310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
15322184Ferrari Passive Start Antenna - 322184$102.69Special order, ships in 7-14 days
1685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
17307604Ferrari Adr Card Kit (Adr10) - 307604$5,333.79Special order, ships in 7-14 days
17824397Ferrari Driver Card For Svr - 824397$491.74Special order, ships in 7-14 days
18307605Ferrari ADR10 Satellite Alarm System Ecu - 307605$522.16Special order, ships in 7-14 days
19278513Ferrari GPS Antenna - 278513$652.72Special order, ships in 7-14 days
20278514Ferrari GSM Antenna - 278514$63.08Special order, ships in 7-14 days
21315029Ferrari Satellite Alarm System Ecu Mounting Bracket - 315029$66.07Special order, ships in 7-14 days
2285833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
2285691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
23307603Ferrari ADR10 Satellite Anti-Theft System ECU - 307603$6,529.70Special order, ships in 7-14 days
23871448Ferrari ECU Glonass Programmta 142M - 871448$5,119.33Special order, ships in 7-14 days
23330644Ferrari GLONASS ECU - 330644$5,109.76Special order, ships in 7-14 days
23824396Ferrari TCU Ecall / Svr - 824396$3,514.91Special order, ships in 7-14 days
24334966Ferrari Era Glonass ECU Bracket - 334966$320.06Special order, ships in 7-14 days
26332823Ferrari Glonass Gps Antenna - 332823$102.85Special order, ships in 7-14 days
27332824Ferrari Glonass Gsm Antenna - 332824$102.85Special order, ships in 7-14 days
28332825Ferrari Glonass Speaker - 332825$78.66Special order, ships in 7-14 days
2986876400Ferrari Screw M4 x 14 TBEI - 86876400$15.49Special order, ships in 7-14 days
3088914500Ferrari Speaker Mounting Bracket - 88914500$183.56Special order, ships in 7-14 days
32824398Ferrari RF Antenna For Svr - 824398$72.10Special order, ships in 7-14 days
33982069Ferrari Start Disable Wiring Harness - 982069$58.98Special order, ships in 7-14 days
3484801200Ferrari Adhesive Strip - 84801200$13.99Special order, ships in 7-14 days
