Ferrari 488 Pista — [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM (diagram 0187)
Exploded view of the [electrical system] - f.12 - dct gearbox system on the Ferrari 488 Pista, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

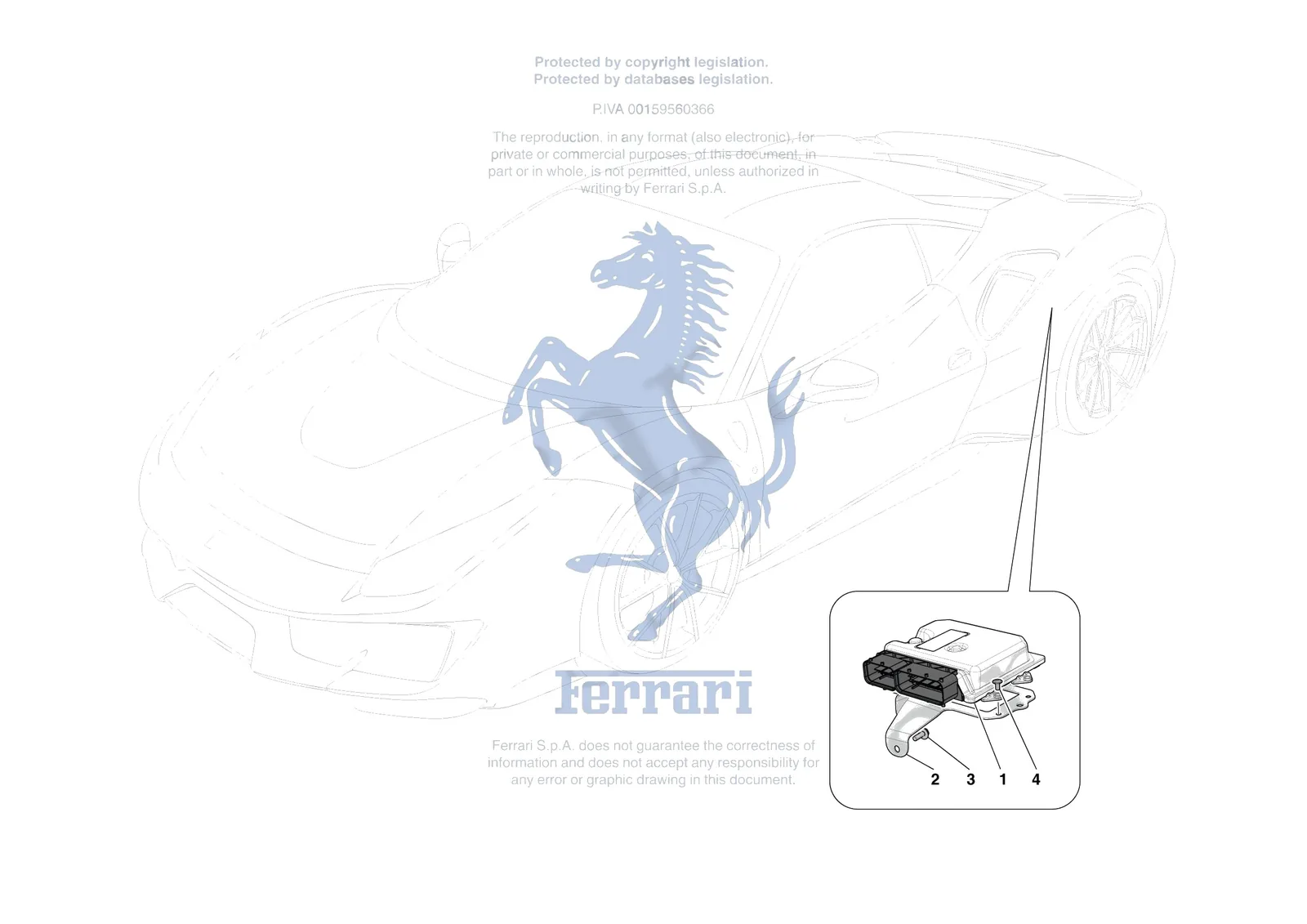

![Ferrari 488 Pista [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0187.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 330778 | Ferrari DCT Gearbox ECU - 330778 | $2,341.71 | Special order, ships in 7-14 days |
| 2 | 86626400 | Ferrari Dct ECU Bracket - 86626400 | $71.38 | Special order, ships in 7-14 days |
| 3 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 4 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
