Ferrari 488 Spider — Dashboard Air Ducts (diagram 050)

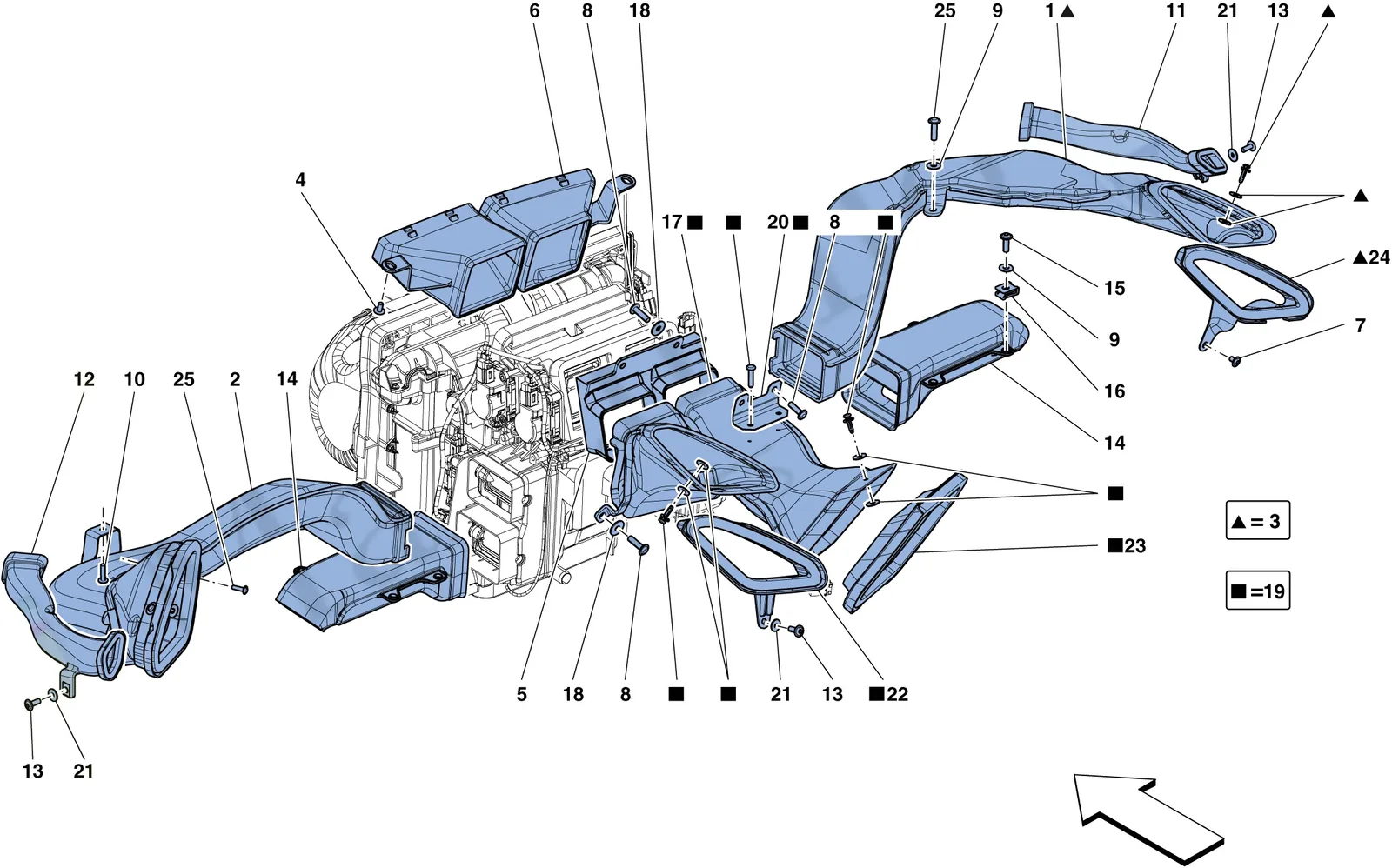

Exploded view of the dashboard air ducts on the Ferrari 488 Spider, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81371100 | Ferrari Footwell Duct - 81371100 | Superseded | Order 84497100 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1, 3 | 86180300 | Ferrari RH Passenger Side Air Vent Duct Complete LHD - 86180300 | $193.35 | Special order, ships in 7-14 days |
| 1, 3 | 86180200 | Ferrari RH Passenger Ventilation Duct Complete LHD - 86180200 | $237.40 | Special order, ships in 7-14 days |
| 13 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 14 | 84497100 | Ferrari Footwell Duct - 84497100 | $100.34 | Special order, ships in 7-14 days |
| 15 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 17, 19 | 86178500 | Ferrari RH Driver Side / LH Passenger Side Vent Duct - 86178500 | Superseded | Order 86178400 instead |
| 17, 19, 20 | 86178400 | Ferrari RH Drivers / LH Passenger Ventilation Duct Complete LHD - 86178400 | $293.71 | Special order, ships in 7-14 days |
| 18 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 19, 20 | 86178200 | Ferrari Fastener Bracket For LH Passenger Side Vent Duct - 86178200 | Superseded | Order 86178400 instead |
