Ferrari 512 BB (Carburetor) — Crankshaft, Connecting Rods And Pistons (diagram 002)

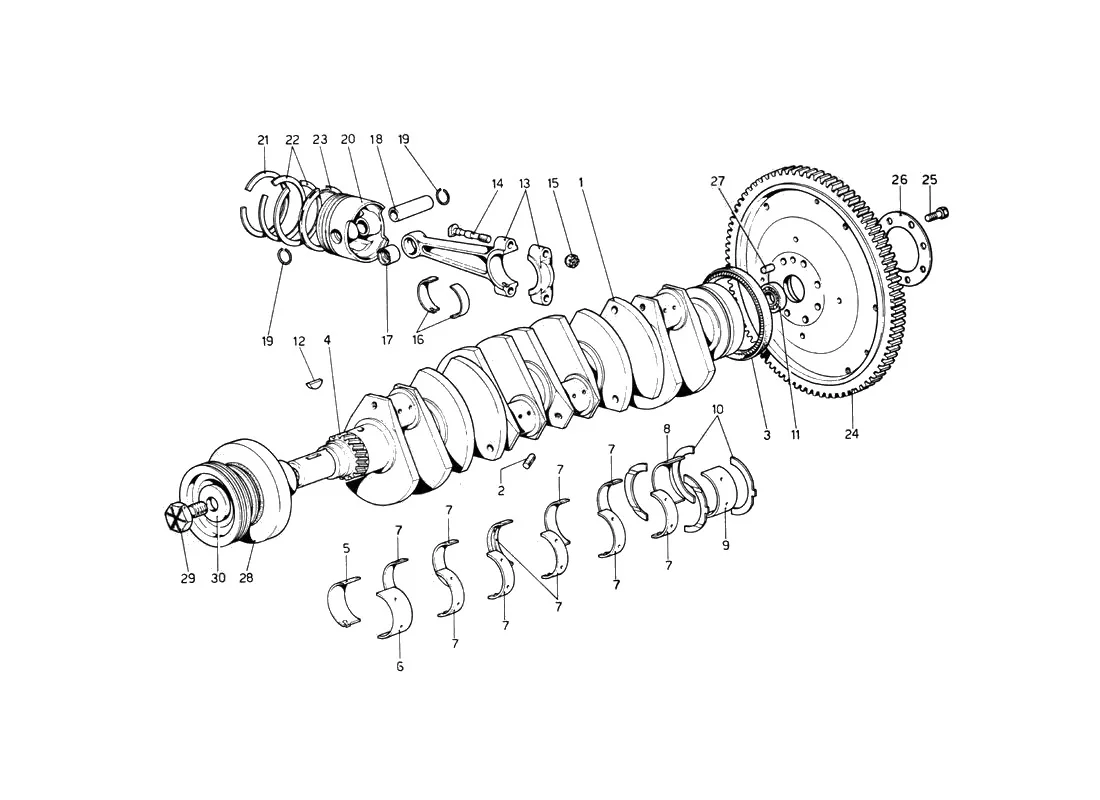

Exploded view of the crankshaft, connecting rods and pistons on the Ferrari 512 BB (Carburetor), with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Crankshaft, Connecting Rods And Pistons exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106979Ferrari Crankshaft - 106979Price on requestContact us for price and availability
214326150Ferrari/Maserati Threaded Plug - 14326150$2.56In stock
3138391Ferrari Rear Main Oil Seal - 138391$39.60In stock
3100014Ferrari Rear Main Oil Seal - 100014SupersededOrder 138391 instead
3104864Ferrari Rear Main Oil Seal - 104864SupersededOrder 138391 instead
4102765Ferrari Gear - 102765Price on requestContact us for price and availability
5100118Ferrari Engine Bearing - 100118$68.90In stock
5100119Engine Bearing - 100119$53.41In stock
5100120Ferrari Upper Main Half Bearing Shell 2nd Undersize 0.508mm - 100120$81.23Available, ships in 3-6 days
5100121Ferrari Upper Main Bearing Shell 3rd Undersize 0.762mm - 100121$69.84Available, ships in 3-6 days
6100122Ferrari Engine Bearing - 100122$68.90In stock
6100123Ferrari Engine Bearing - 100123$126.50In stock
6100124Ferrari Lower Main Half Bearing Shell 2nd Undersize 0.508mm - 100124$64.52Available, ships in 3-6 days
6100125Ferrari Lower Main Bearing Shell 3rd Undersize 0.762mm - 100125$69.84Available, ships in 3-6 days
7100134Ferrari Engine Bearing - 100134$33.72In stock
7100135Ferrari Main Half Bearing Shell 1st Undersize 0.254mm - 100135$84.06Available, ships in 3-6 days
7100131Ferrari Intermediate Lower Bearing Shell 1st Undersize 0.254mm - 100131$116.05Available, ships in 3-6 days
7100136Ferrari Main Half Bearing Shell 2nd Undersize 0.508mm - 100136$100.41Special order, ships in 7-14 days
7100137Ferrari Main Bearing Shell 3rd Undersize 0.762mm - 100137$88.01Available, ships in 3-6 days
8100138Ferrari Main Half Bearing Shell Standard - 100138$88.70Available, ships in 3-6 days
8100139Ferrari Rear Upper Bearing Shell 1st Undersize 0.254mm - 100139$111.20Available, ships in 3-6 days
8100140Ferrari Rear Upper Bearing Shell 2nd Undersize 0.508mm - 100140$61.45Available, ships in 3-6 days
8100141Ferrari Rear Upper Bearing Shell 3rd Undersize 0.762mm - 100141$66.12Available, ships in 3-6 days
9100142Ferrari Main Half Bearing Shell Standard - 100142$124.74Available, ships in 3-6 days
9100143Ferrari Rear Lower Bearing Shell 1st Undersize 0.254mm - 100143$149.29Available, ships in 3-6 days
9100144Ferrari Rear Lower Bearing Shell 2nd Undersize 0.508mm - 100144Price on requestContact us for price and availability
9100145Ferrari Rear Lower Bearing Shell 3rd Undersize 0.762mm - 100145$66.12Available, ships in 3-6 days
10100146Ferrari Crankshaft Thrust Washers - 100146$43.84In stock
10100147Ferrari Thrust Washer Pair - 100147$14.19In stock
11103877Ferrari/Maserati Clutch Pilot Bearing - 103877$32.95In stock
1210206020Ferrari Woodruff Key - 10206020$3.14Available, ships in 3-6 days
13109738Ferrari Con Rod Complete - 109738$4,840.00Available, ships in 3-6 days
13109688Ferrari Con Rod - 109688Price on requestContact us for price and availability
14100156Ferrari Con Rod Bolt - 100156$31.22Available, ships in 3-6 days
15104011Ferrari Self Locking Nut 10x1mm - 104011$21.77Available, ships in 3-6 days
16106183/24Ferrari Connecting Rod Bearing Set of 24 - 106183/24$799.99In stock
16100151Ferrari Engine Connecting Rod Bearing undersize - 100151$75.68In stock
16106184Ferrari Connecting Rod Bearing Set (.10 over) - 106184SupersededOrder 100151 instead
16106185Ferrari Connecting Rod Bearing Set (.20 over) - 106185$823.90In stock
16106183/16Ferrari Connecting Rod Bearing Set of 16 - 106183/16$539.65In stock
16106183Ferrari Connecting Rod Bearing - 106183$34.45In stock
16100152Ferrari Con Rod Half Bearing 2nd Undersize 0.508mm - 100152$174.80Available, ships in 3-6 days
16100150Ferrari Con Rod Half Bearing Standard - 100150SupersededOrder 106183 instead
16100153Ferrari Con Rod Half Bearing 3rd Undersize 0.762mm - 100153Price on requestContact us for price and availability
16106186Ferrari Con Rod Half Bearing 3rd Undersize 0.762mm - 106186Price on requestContact us for price and availability
16100151/AFerrari Con Rod Half Bearing 1st Undersize 0.254mm Pack 4 Pairs - 100151/A$1,001.11Available, ships in 3-6 days
16100152/AFerrari Con Rod Half Bearing 2nd Undersize 0.508mm Pack 4 Pairs - 100152/A$2,337.94Available, ships in 3-6 days
17107100Ferrari Small End Bush 18.6 x 21.65 x 20.22 - 107100$77.13Available, ships in 3-6 days
18104487Ferrari Piston Pin - 104487$90.08Available, ships in 3-6 days
19100174Ferrari Piston Wristpin/Circlip - 100174$6.65In stock
20107056Ferrari Piston - 107056$316.33Available, ships in 3-6 days
20110556Ferrari Piston - 110556SupersededOrder 107056 instead
21108609Ferrari 512 BB/BBi Engine Piston Ring Set-108609SupersededOrder 108618 instead
21108618Ferrari Piston Ring Set - 108618$394.12Available, ships in 3-6 days
22108612Ferrari Piston Ring - 108612$53.67Available, ships in 3-6 days
23108615Ferrari Piston Ring - 108615$394.12Available, ships in 3-6 days
24109558Ferrari Flywheel - 109558$3,719.32Available, ships in 3-6 days
25201755Ferrari Clutch/Flywheel Bolt - 201755$3.14In stock
25103875Ferrari Flywheel Bolt - 103875SupersededOrder 201755 instead
26108662Ferrari Locking Plate - 108662$27.34In stock
27100185Ferrari Dowel - 100185$22.36Available, ships in 3-6 days
28105241Ferrari Crankshaft Pulley - 105241Price on requestContact us for price and availability
29100476Ferrari Bolt - 100476SupersededOrder 138793 instead
30102775Ferrari Washer - 102775SupersededOrder 138792 instead
100149Ferrari Con Rod - 100149Price on requestContact us for price and availability
9140019Ferrari Con Rod - 9140019Price on requestContact us for price and availability
100148Ferrari Con Rod Complete - 100148Price on requestContact us for price and availability
14985Ferrari Con Rod Complete - 14985Price on requestContact us for price and availability
14447Ferrari Con Rod Half Bearing Standard - 14447SupersededOrder 106183 instead
4150813Ferrari Thrust Washer Per Pair - 4150813SupersededOrder 100146 instead
138792Ferrari Washer Crankshaft Pulley - 138792$8.95Available, ships in 3-6 days
10345Lamborghini Espada/Jarama Ignition Wire Set - 10345SupersededOrder 100146 instead
-108603Ferrari 512/Testarossa Engine main Bearing Set-108603$863.50In stock
-108604Ferrari Main Bearing Set 1st Undersize 0.254mm - 108604Price on requestContact us for price and availability
-108605Ferrari Main Bearing Set 2nd Undersize 0.508mm - 108605Price on requestContact us for price and availability
-108606Ferrari Main Bearing Shell Set 3rd Undersize - 108606$1,277.65Available, ships in 3-6 days
