Ferrari 512 BB (Carburetor) — Timing System - Controls (1978 Revision) (diagram 005A)

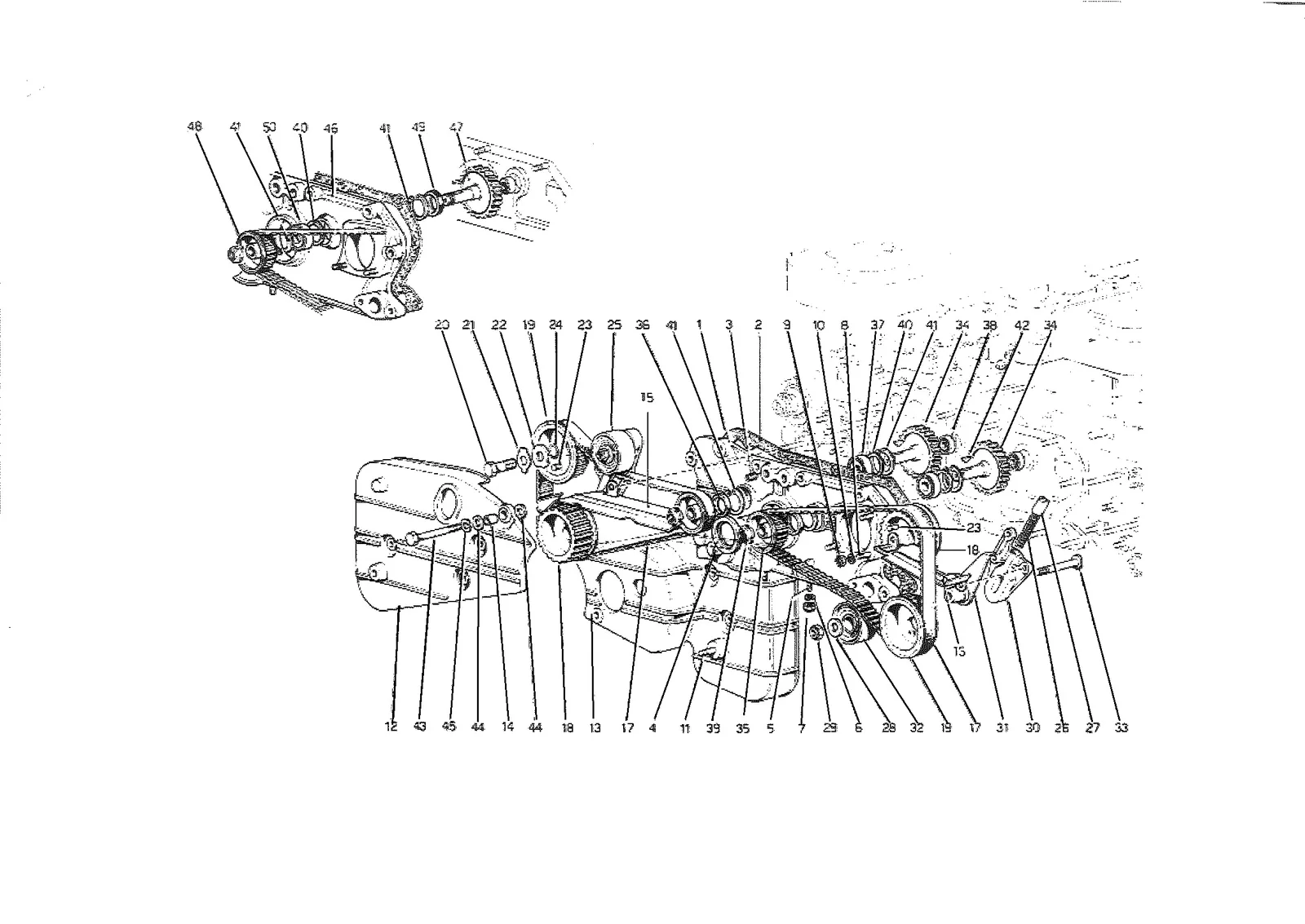

Exploded view of the timing system - controls (1978 revision) on the Ferrari 512 BB (Carburetor), with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Timing System - Controls (1978 Revision) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106212Ferrari Front Cover Complete - 106212Price on requestContact us for price and availability
1104504Ferrari Front Cover - 104504Price on requestContact us for price and availability
2104513Ferrari Gasket - 104513SupersededOrder 147679 instead
2147679Ferrari Gasket - 147679$48.30Available, ships in 3-6 days
3104657Ferrari Heli Coil - 104657Price on requestContact us for price and availability
4108224Ferrari Front Crank Seal - 108224$32.84In stock
513449721Ferrari Stud - 13449721$2.61Available, ships in 3-6 days
612601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
612601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
7102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
7107314Ferrari Self locking Nut - 107314$13.17Available, ships in 3-6 days
813516924Ferrari Stud M8 x 12 Gambo 22 - 13516924$4.56Available, ships in 3-6 days
813516921Ferrari LH Threaded Stud - 13516921SupersededOrder 13516924 instead
9101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
1012601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
1012601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1113449321Ferrari Stud - 13449321Price on requestContact us for price and availability
12104530Ferrari RH Cam Belt Cover - 104530Price on requestContact us for price and availability
13106548Ferrari LH Cam Belt Cover Complete - 106548Price on requestContact us for price and availability
13104531Ferrari LH Cam Belt Cover - 104531Price on requestContact us for price and availability
14102786Ferrari Bush - 102786$29.73Available, ships in 3-6 days
15107534Ferrari Shield - 107534Price on requestContact us for price and availability
16107535Ferrari Cam Belt Shield - 107535Price on requestContact us for price and availability
17AW4320000KITFerrari 2V Timing Kit - AW4320000KIT$218.90In stock
17107833Ferrari Timing Belt - 107833$24.15In stock
17102877Ferrari Cam Belt - 102877$27.06Available, ships in 3-6 days
18113098Ferrari Cam Belt Sprocket (Outer Belt Guide) - 113098$646.76Available, ships in 3-6 days
18110995Ferrari Cam Belt Sprocket (Outer Belt Guide) - 110995SupersededOrder 113098 instead
19113097Ferrari Cam Belt Sprocket (Inner Belt Guide) - 113097$646.76Available, ships in 3-6 days
19110994Ferrari Cam Belt Sprocket (Inner Belt Guide) - 110994SupersededOrder 113097 instead
20106606Ferrari Cam Gear Retainer Bolt - 106606$127.38Available, ships in 3-6 days
21102777Ferrari Timing Sprocket Tab - 102777$10.73In stock
22106605Ferrari Washer - 106605$39.02Available, ships in 3-6 days
23106203Ferrari Timing Gear Dowel - 106203$13.55In stock
24101031Ferrari O-Ring - 101031$1.31In stock
25105212Ferrari Belt Tensioner - 105212Price on requestContact us for price and availability
25105206/BFerrari Bearing (Cam Belt) - 105206/BPrice on requestSpecial order, ships in 7-14 days
26113099Ferrari Spring - 113099$22.14Available, ships in 3-6 days
27102819Ferrari Plunger - 102819$606.38Special order, ships in 7-14 days
28102824Ferrari Washer - 102824$18.35Available, ships in 3-6 days
29102825Ferrari Locking Suspension Nut - 102825$1.10In stock
30105211Ferrari Support - 105211Price on requestContact us for price and availability
31105202Ferrari Plate - 105202Price on requestContact us for price and availability
32PT308/2Ferrari Tensioner Bearing Pair - PT308/2$313.83In stock
32105206Ferrari Tensioner Bearing - 105206$82.50In stock
33105205Ferrari Pin - 105205$156.75Available, ships in 3-6 days
34104913Ferrari Lower Cam Drive Gear-104913$269.50Contact us
35104914Ferrari Pulley - 104914$547.76Available, ships in 3-6 days
36104916Ferrari Timing Cover Oil Seal - 104916$16.50In stock
37104917Ferrari Timing Gear Bearing - 104917$18.41In stock
38104918Ferrari Bearing - 104918$15.38In stock
39104919Ferrari Ring Nut - Lower Cam Gear - 104919$12.65In stock
40104915Ferrari Washer - 104915$45.52Available, ships in 3-6 days
4111059975Ferrari Circlip - 11059975SupersededOrder 11059976 instead
4210206320Ferrari Woodruff Key - 10206320$4.39In stock
4311360221Ferrari Bolt - 11360221Price on requestContact us for price and availability
44103024Ferrari Washer - 103024Price on requestContact us for price and availability
4595930517Ferrari Spring Washer - 95930517$0.25Available, ships in 3-6 days
4510517171Ferrari Spring Washer 14mm - 10517171$0.25Available, ships in 3-6 days
46112016Ferrari Front Cover - 112016Price on requestContact us for price and availability
47112017Ferrari Drive Gear - 117656$1,241.90In stock
48112018Ferrari Timing Drive Pulley - 112018$410.26In stock
49117276Ferrari Lower Cambelt Gear Seal - 117276$24.20In stock
49112020Ferrari Seal - 112020SupersededOrder 117276 instead
50175260Ferrari Lower Cam Drive Outer Bearing - 175260$33.11In stock
50112019Ferrari Bearing Dia 40mm - 112019SupersededOrder 175260 instead
12575611Ferrari Nut - 12575611SupersededOrder 102742 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
102586Ferrari Sprocket - 102586SupersededOrder 113097 instead
102587Ferrari Sprocket - 102587SupersededOrder 113098 instead
108033Ferrari Sprocket - 108033SupersededOrder 113097 instead
108034Ferrari Sprocket - 108034SupersededOrder 113098 instead
13526070Ferrari Threaded Insert - 13526070Price on requestContact us for price and availability
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
