Ferrari 512 BB (Carburetor) — Fuel Pumps And Fuel Pipes (diagram 006)

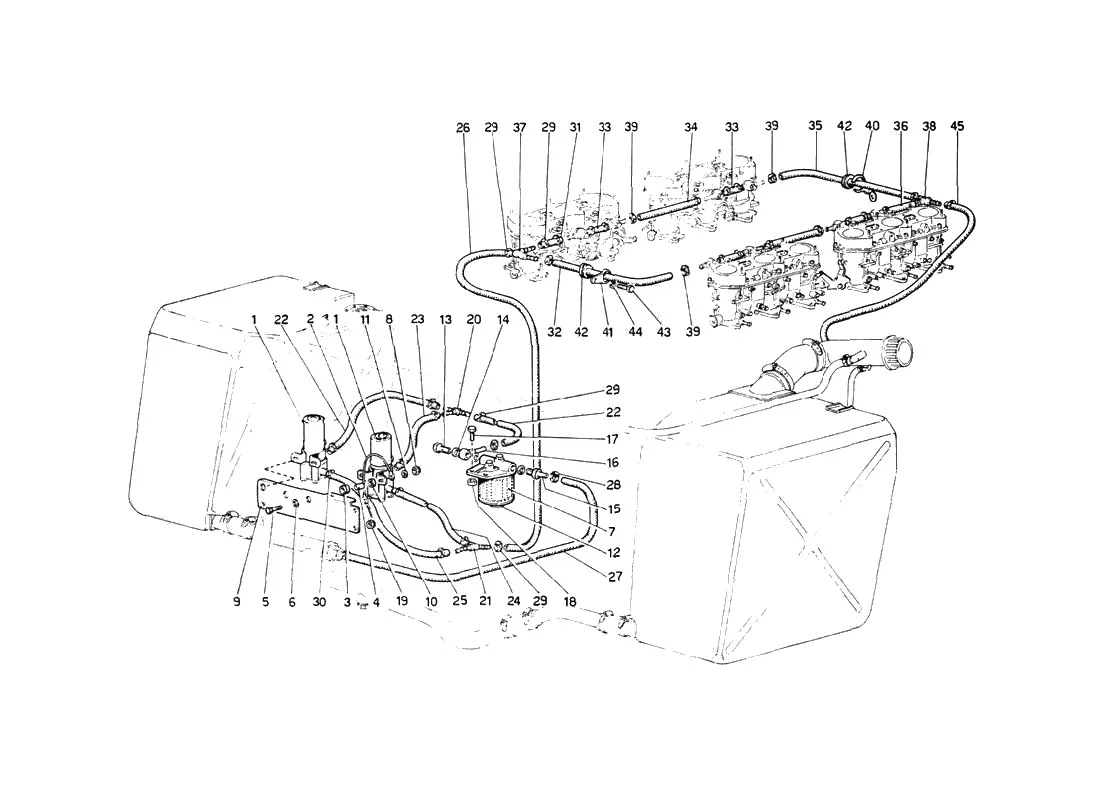

Exploded view of the fuel pumps and fuel pipes on the Ferrari 512 BB (Carburetor), with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Fuel Pumps And Fuel Pipes exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1100245BFerrari Bendix Fuel Pump - 100245B$251.90In stock
1100245Ferrari Fuel Pump - 100245$294.80In stock
1105454Ferrari Fuel Pump - 105454SupersededOrder 100245 instead
2106153Ferrari Cable - 106153$5.85Available, ships in 3-6 days
3103549Ferrari Grommet - 103549$2.80In stock
4103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
510903034Ferrari Screw 6x35 - 10903034$0.82Available, ships in 3-6 days
510902811Ferrari Bolt - 10902811$0.82Available, ships in 3-6 days
612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
795180050Ferrari Fuel Filter - 95180050$26.29In stock
8102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
812574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
9105837Ferrari Support - 105837Price on requestContact us for price and availability
10105991Ferrari Spacer - 105991$7.15Special order, ships in 7-14 days
1112644401Ferrari Washer - 12644401$0.08Available, ships in 3-6 days
12107486Ferrari Fuel Filter Housing FIAMM - 107486$1,167.75Available, ships in 3-6 days
12103401Ferrari Fuel Filter Housing FISPA - 103401SupersededOrder 107486 instead
13103402Ferrari Banjo Bolt - 103402$68.26Available, ships in 3-6 days
1410280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
14103403Ferrari Gasket - 103403SupersededOrder 10280060 instead
15100382Ferrari Clip - 100382Price on requestContact us for price and availability
16105826Ferrari Union - 105826Price on requestContact us for price and availability
1715970721Ferrari Bolt M10 x 1.25 x 25 UNI 5740 - 15970721$0.71Available, ships in 3-6 days
18104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
1812575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
19104030Ferrari/Maserati Nut - 104030$0.88In stock
1916104121Ferrari Nyloc Nut - 16104121SupersededOrder 104030 instead
20105823Ferrari T Piece Union - 105823$2.43Available, ships in 3-6 days
21105495Ferrari Y Piece Union - 105495$4.54Special order, ships in 7-14 days
22105500Ferrari Pipe - 105500Price on requestContact us for price and availability
23105498Ferrari Tube - 105498Price on requestContact us for price and availability
24105497Ferrari Pipe - 105497Price on requestContact us for price and availability
25105499Ferrari Pipe - 105499Price on requestContact us for price and availability
26105502Ferrari Pipe - 105502Price on requestContact us for price and availability
27105992Ferrari Pipe - 105992Price on requestContact us for price and availability
28100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
2813000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
2910168790Ferrari Clip - 10168790Price on requestContact us for price and availability
3013000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
3010168590Ferrari Clip - 10168590SupersededOrder 13000190 instead
31105489Ferrari Pipe - 105489Price on requestContact us for price and availability
32105490Ferrari Pipe - 105490Price on requestContact us for price and availability
34105492Ferrari Pipe - 105492SupersededOrder 116764 instead
35105493Ferrari Hose - 105493Price on requestContact us for price and availability
36105494Ferrari Hose - 105494$6.42Available, ships in 3-6 days
38105990Ferrari T Piece - 105990Price on requestContact us for price and availability
40105943Ferrari Ht Lead Bracket - 105943Price on requestContact us for price and availability
41104843Ferrari Bracket - 104843$6.90Available, ships in 3-6 days
4210396580Ferrari Rubber Grommet - 10396580$10.11In stock
42100286Ferrari Gaiter - 100286SupersededOrder 10396580 instead
43105947Ferrari Bolt - 105947$3.09Available, ships in 3-6 days
44127497Ferrari Spring Washer 10mm - 127497$0.69In stock
4410516871Ferrari Washer - 10516871SupersededOrder 127497 instead
45105527Ferrari Pipe - 105527Price on requestContact us for price and availability
95433Ferrari Cover - 95433Price on requestContact us for price and availability
114274Ferrari Fuel Hose - 114274$27.95Available, ships in 3-6 days
116758Ferrari Fuel Hose - 116758$17.05In stock
29264Ferrari Gaiter - 29264SupersededOrder 10396580 instead
114875Ferrari Hose - 114875Price on requestContact us for price and availability
116760Ferrari Hose - 116760Price on requestContact us for price and availability
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
114874Ferrari LH Hose - 114874SupersededOrder 114873 instead
116769Ferrari LH Pipe - 116769Price on requestContact us for price and availability
116772Ferrari LH Return Fuel Hose - 116772Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
116764Ferrari Pipe From Valve to LH Air Connection - 116764$75.86Special order, ships in 7-14 days
100501Ferrari Washer - 100501SupersededOrder 10280060 instead
100511Ferrari Washer - 100511SupersededOrder 10280060 instead
95108Ferrari Washer - 95108SupersededOrder 10280060 instead
