Ferrari 512 BB (Carburetor) — Fuel Tanks And Pipes (diagram 007)

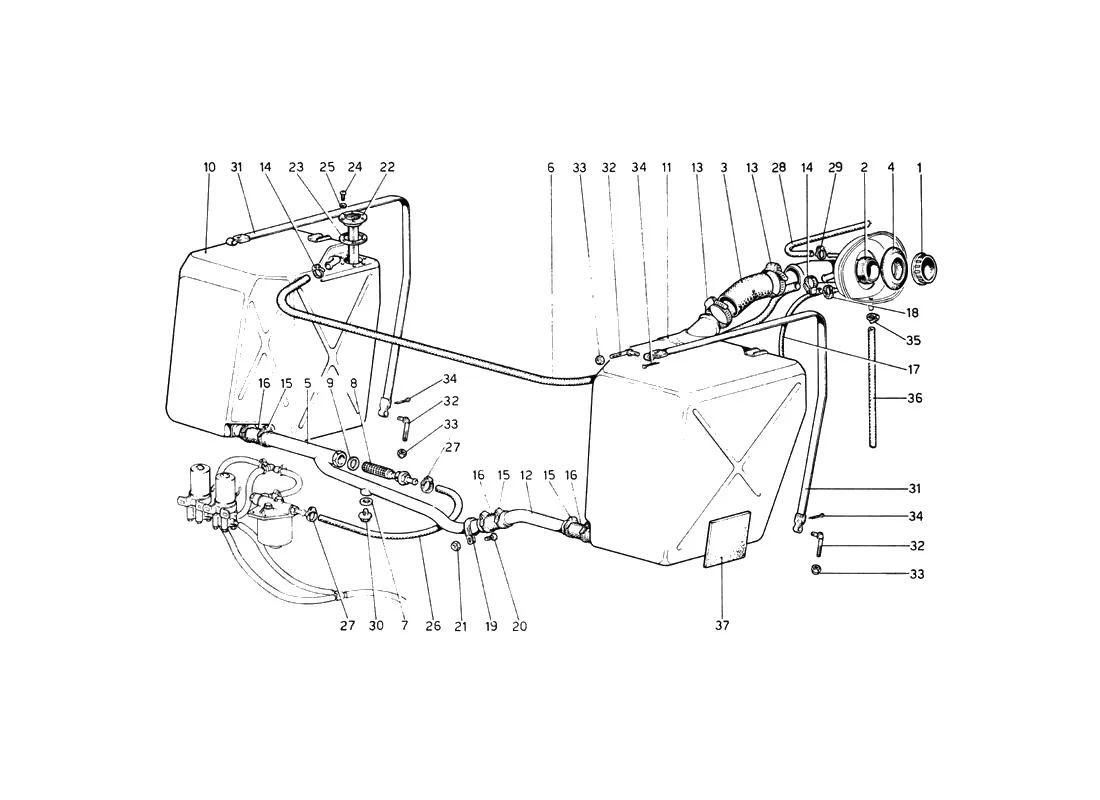

Exploded view of the fuel tanks and pipes on the Ferrari 512 BB (Carburetor), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Fuel Tanks And Pipes exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1101453Ferrari Filler Cap - 101453Price on requestContact us for price and availability
2111437Ferrari Filler Tube - 111437Price on requestContact us for price and availability
3107648Ferrari Fuel Hose - 107648Price on requestContact us for price and availability
4101465Ferrari Gasket - Fuel Filler Neck - 101465$115.48Available, ships in 3-6 days
5105822Ferrari Union - 105822$447.50Available, ships in 3-6 days
6103442Ferrari Hose - 103442Price on requestContact us for price and availability
710278650Ferrari Aluminium Washer - 10278650$0.79Available, ships in 3-6 days
8102600Ferrari Fuel Filter - 102600$654.89Available, ships in 3-6 days
9102645Ferrari Copper Washer - 102645$3.03In stock
10109816Ferrari Fuel Tank - 109816$648.04Contact us to order
10109816/XFerrari Fuel Tank - 109816/X$648.04Contact us to order
11109815Ferrari Fuel Tank - 109815$2,731.23Contact us to order
12105821Ferrari Pipe - 105821Price on requestContact us for price and availability
1312174790Ferrari Hose Clip - 12174790Price on requestContact us for price and availability
14104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
1413000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
15168220Ferrari Hose Clip 44mm - 168220$3.26Available, ships in 3-6 days
15108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
16114277Ferrari Fuel Tank Connecting Hose - 114277$48.02In stock
16114277KITFerrari 308/328 Fuel Tank Hose Kit - 114277KIT$106.15In stock
16101468Ferrari Hose - 101468SupersededOrder 114277 instead
17105959Ferrari Overflow Tube - 105959Price on requestContact us for price and availability
18101296Ferrari Clip - 101296Price on requestContact us for price and availability
19106195Ferrari P Clip Bracket - 106195$115.98Special order, ships in 7-14 days
20106196Ferrari Screw - 106196$4.22Available, ships in 3-6 days
21102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2112574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
22MC3701/100Ferrari Fuel Tank Sending Unit - MC3701/100$199.98In stock
22FLS101Ferrari Fuel Level Sensor - FLS101$162.80In stock
22105320Ferrari Tank Sender - 105320$228.03Available, ships in 3-6 days
23101462Ferrari Fuel Sending Unit Gasket - 101462$21.95In stock
2410374911Ferrari Screw - 10374911$0.52Available, ships in 3-6 days
2511195370Ferrari Spring Washer 4mm - 11195370$0.71Available, ships in 3-6 days
26105992Ferrari Pipe - 105992Price on requestContact us for price and availability
27100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
28105527Ferrari Pipe - 105527Price on requestContact us for price and availability
2913000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
2910168590Ferrari Clip - 10168590SupersededOrder 13000190 instead
3010300771Ferrari Drain Plug - 10300771$46.73Available, ships in 3-6 days
31110317Ferrari Tank Strap LHD - 110317$158.95Available, ships in 3-6 days
31103444Ferrari Tank Strap RHD - 103444$311.94Available, ships in 3-6 days
3212311271Ferrari Threaded Tie Rod - 12311271$88.32Available, ships in 3-6 days
33104030Ferrari/Maserati Nut - 104030$0.88In stock
3316104111Ferrari Nut - 16104111SupersededOrder 104030 instead
3410796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
35102604Ferrari Clip - 102604Price on requestContact us for price and availability
36105958Ferrari Tube - 105958Price on requestContact us for price and availability
37106479Ferrari Spacer - 106479Price on requestContact us for price and availability
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
95026Ferrari Clamp 29-41 - 95026Price on requestContact us for price and availability
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
12179190Ferrari Clip - 12179190Price on requestContact us for price and availability
20236907Ferrari Clip - 20236907Price on requestContact us for price and availability
10296260Ferrari Copper Washer 28x36x1.5 - 10296260SupersededOrder 102645 instead
520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
94701Ferrari Copper Washer - 94701SupersededOrder 102645 instead
113401Ferrari Fuel Filler Cap - 113401$93.50In stock
4181665Ferrari Fuel Filler Cap - 4181665Price on requestContact us for price and availability
821426Ferrari Fuel Filler Cap - 821426Price on requestContact us for price and availability
116758Ferrari Fuel Hose - 116758$17.05In stock
117617Ferrari Fuel Hose - 117617$63.12Available, ships in 3-6 days
12173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
241-20-600-00Ferrari Gasket - 241-20-600-00SupersededOrder 101465 instead
95003Ferrari Hose - 95003SupersededOrder 114277 instead
105672Ferrari Hose Clamp - 105672$3.26Available, ships in 3-6 days
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
157934Ferrari Jubilee Clip - 157934Price on requestContact us for price and availability
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
10796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
104283Ferrari Washer - 104283SupersededOrder 102645 instead
821139Ferrari Washer - 821139SupersededOrder 102645 instead
