Ferrari 512 BB (Carburetor) — Weber 40 If 3C/9/10/11/12 Carburettors (diagram 009)

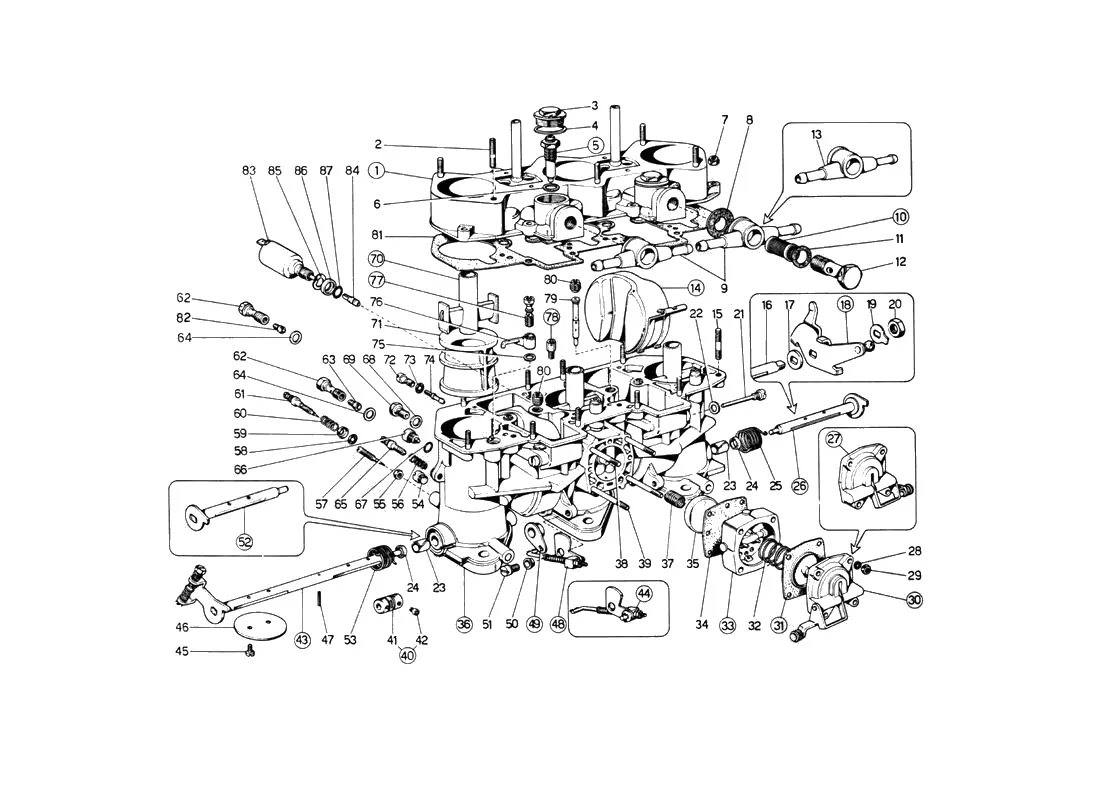

Exploded view of the weber 40 if 3c/9/10/11/12 carburettors on the Ferrari 512 BB (Carburetor), with 89 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Weber 40 If 3C/9/10/11/12 Carburettors exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
131726.006Ferrari Carb Top - 31726.006Price on requestContact us to order
264960.004Ferrari Stud - 64960.004Price on requestSpecial order, ships in 7-14 days
361002.005Ferrari Inspection Plug Fr Needle Valve - 61002.005Price on requestSpecial order, ships in 7-14 days
441530.035Ferrari Washer - 41530.035$34.14Available, ships in 3-6 days
564240.009Ferrari Needle Valve - 64240.009Price on requestSpecial order, ships in 7-14 days
579508.175Ferrari Needle Valve - 79508.175$59.00Available, ships in 3-6 days
641530.005Ferrari Washer - 41530.005Price on requestSpecial order, ships in 7-14 days
734725.003Ferrari Nyloc Nut - 34725.003$2.22Available, ships in 3-6 days
840DCZKITFerrari Carburetor Rebuild Kit - 40DCZKIT$152.90In stock
841530.004Ferrari Gasket - 41530.004$5.81Available, ships in 3-6 days
910356.005Ferrari Fuel Union - 10356.005Price on requestSpecial order, ships in 7-14 days
1037022.001Ferrari Filter Lusso (36DCS) - 37022.001$32.28Available, ships in 3-6 days
1141530.001Ferrari Carburettor Fibre Washer 41530.001 - 41530.001$3.34Available, ships in 3-6 days
1212715.014Ferrari Banjo Bolt - 12715.014Price on requestSpecial order, ships in 7-14 days
1310356.010Ferrari Fuel Union - 10356.010Price on requestSpecial order, ships in 7-14 days
1441015.007Ferrari Float Complete - 41015.007Price on requestSpecial order, ships in 7-14 days
1564955.012Ferrari Stud - 64955.012Price on requestSpecial order, ships in 7-14 days
1610005.407Ferrari Spindle - 10005.407Price on requestSpecial order, ships in 7-14 days
1755555.016Ferrari Washer - 55555.016Price on requestSpecial order, ships in 7-14 days
1845048.036Ferrari Lever - 45048.036Price on requestSpecial order, ships in 7-14 days
1955520.008Ferrari Tab Washer - 55520.008Price on requestSpecial order, ships in 7-14 days
2034715.014Ferrari Nut - 34715.014Price on requestSpecial order, ships in 7-14 days
2164900.012Ferrari Float Fulcrum Pin - 64900.012Price on requestSpecial order, ships in 7-14 days
2241530.017Ferrari Washer - 41530.017Price on requestSpecial order, ships in 7-14 days
2352130.011Ferrari Bush - 52130.011Price on requestSpecial order, ships in 7-14 days
2441575.010Ferrari Seal Ring - 41575.010Price on requestAvailable, ships in 3-6 days
2547610.072Ferrari Jet - 47610.072Price on requestSpecial order, ships in 7-14 days
2610015.419Ferrari Spindle Shaft - 10015.419Price on requestSpecial order, ships in 7-14 days
2732486.010Ferrari Cover - 32486.010Price on requestSpecial order, ships in 7-14 days
2855525.007Ferrari Rubber Washer - 55525.007Price on requestSpecial order, ships in 7-14 days
2934705.003Ferrari Nut - 34705.003Price on requestSpecial order, ships in 7-14 days
3032486.009Ferrari Diaphram Cover - 32486.009Price on requestSpecial order, ships in 7-14 days
3147407.010Ferrari Diaphragm - 47407.010Price on requestSpecial order, ships in 7-14 days
3247600.012Ferrari Spring - 47600.012Price on requestSpecial order, ships in 7-14 days
3339174.002Ferrari Pump Flange - 39174.002Price on requestSpecial order, ships in 7-14 days
3447405.011Ferrari Diaphragm - 47405.011$64.38Available, ships in 3-6 days
3564190.004Ferrari Valve - 64190.004Price on requestSpecial order, ships in 7-14 days
3747600.128Ferrari Carburettor Spring - 47600.128Price on requestSpecial order, ships in 7-14 days
3864955.020Ferrari Stud - 64955.020Price on requestSpecial order, ships in 7-14 days
3964955.011Ferrari Stud - 64955.011Price on requestSpecial order, ships in 7-14 days
4032272.001Ferrari Union - 32272.001Price on requestSpecial order, ships in 7-14 days
4132270.002Ferrari Union - 32270.002Price on requestSpecial order, ships in 7-14 days
4264600.002Ferrari Screw - 64600.002Price on requestSpecial order, ships in 7-14 days
4310020.415Ferrari Shaft - 10020.415Price on requestSpecial order, ships in 7-14 days
4461287.002Ferrari Arm - 61287.002Price on requestSpecial order, ships in 7-14 days
4564520.027Ferrari Screw - 64520.027Price on requestSpecial order, ships in 7-14 days
4664005.087Ferrari Butter Fly - 64005.087Price on requestSpecial order, ships in 7-14 days
4758445.001Ferrari Pin - 58445.001$7.67Available, ships in 3-6 days
4861287.001Ferrari Arm - 61287.001Price on requestSpecial order, ships in 7-14 days
4945027.007Ferrari Lever - 45027.007Price on requestSpecial order, ships in 7-14 days
5012775.017Ferrari Bush - 12775.017Price on requestSpecial order, ships in 7-14 days
5164700.012Ferrari Carb Screw - 64700.012Price on requestSpecial order, ships in 7-14 days
5210015.415Ferrari Shaft - 10015.415Price on requestSpecial order, ships in 7-14 days
5347610.071Ferrari Spring - 47610.071Price on requestSpecial order, ships in 7-14 days
5461015.009Ferrari Inspection Plug - 61015.009$13.30Available, ships in 3-6 days
5534705.006Ferrari Nut - 34705.006Price on requestSpecial order, ships in 7-14 days
5647600.007Ferrari Spring - 47600.007Price on requestSpecial order, ships in 7-14 days
5764750.002Ferrari Idle Air Adj Screw - 64750.002Price on requestSpecial order, ships in 7-14 days
5841565.002Ferrari Washer - 41565.002$2.12Available, ships in 3-6 days
5958000.001Ferrari Washer - 58000.001Price on requestSpecial order, ships in 7-14 days
6164750.018Ferrari Idle Mixture Adj Screw - 64750.018$4.20Available, ships in 3-6 days
6252590.001Ferrari Main Jet Holder - 52590.001Price on requestSpecial order, ships in 7-14 days
6373805.150Ferrari Main Jet - 73805.150Price on requestSpecial order, ships in 7-14 days
6441540.001Ferrari Washer - 41540.001Price on requestSpecial order, ships in 7-14 days
6564585.005Ferrari Throttle Control Screw - 64585.005$2.80Available, ships in 3-6 days
6664835.005Ferrari Screw - 64835.005Price on requestSpecial order, ships in 7-14 days
6741565.009Ferrari 400 ModO-Ring - 41565.009Price on requestSpecial order, ships in 7-14 days
6841530.008Ferrari Washer - 41530.008Price on requestSpecial order, ships in 7-14 days
6961002.006Ferrari Screw - 61002.006Price on requestSpecial order, ships in 7-14 days
7071103.500Ferrari Centratore - 71103.500Price on requestSpecial order, ships in 7-14 days
7171502.320Ferrari Diffusor - 71502.320Price on requestSpecial order, ships in 7-14 days
7252570.006Ferrari Idle Jet Holder - 52570.006$12.90Available, ships in 3-6 days
7441160.003Ferrari Jet - 41160.003Price on requestSpecial order, ships in 7-14 days
7541530.012Ferrari Washer - 41530.012Price on requestSpecial order, ships in 7-14 days
7676202.045Ferrari Pump Jet - 76202.045Price on requestSpecial order, ships in 7-14 days
7764290.007Ferrari Valve - 64290.007Price on requestSpecial order, ships in 7-14 days
7864290.001Ferrari Pump Jet - 64290.001Price on requestSpecial order, ships in 7-14 days
7961440.329Ferrari Emulsion Tube - 61440.329Price on requestSpecial order, ships in 7-14 days
8077201.210Ferrari Air Correction Jet - 77201.210Price on requestSpecial order, ships in 7-14 days
8141710.001Ferrari Gasket - 41710.001Price on requestSpecial order, ships in 7-14 days
8273801.080Ferrari Main Jet - 73801.080Price on requestAvailable, ships in 3-6 days
8273805.080Ferrari Main Jet - 73805.080Price on requestSpecial order, ships in 7-14 days
8343905.050Ferrari Idle Solenoid - 43905.050Price on requestSpecial order, ships in 7-14 days
8343905.050/AFerrari Idle Solenoid - 43905.050/APrice on requestSpecial order, ships in 7-14 days
8474412.050Ferrari Jet - 74412.050Price on requestSpecial order, ships in 7-14 days
8555530.016Ferrari Washer - 55530.016Price on requestSpecial order, ships in 7-14 days
8658000.019Ferrari Washer - 58000.019Price on requestSpecial order, ships in 7-14 days
8741565.001Ferrari O-Ring - 41565.001Price on requestSpecial order, ships in 7-14 days
95180631Ferrari Valve - 95180631Price on requestContact us for price and availability

All 512 BB (Carburetor) diagrams
