Ferrari 512 BB (Carburetor) — Water Pump And Pipes (diagram 015)

Exploded view of the water pump and pipes on the Ferrari 512 BB (Carburetor), with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

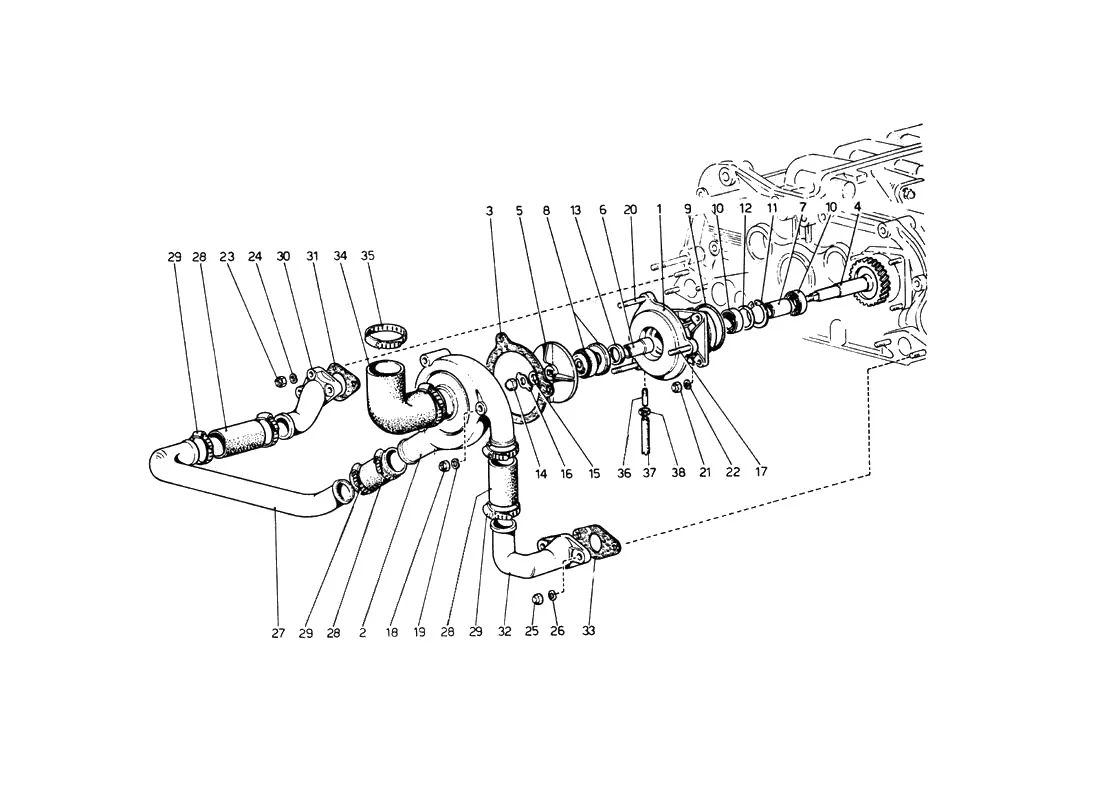

Ferrari 512 BB (Carburetor) Water Pump And Pipes exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106562Ferrari Water Pump Complete - 106562Price on requestContact us for price and availability
1104507Ferrari Water Pump - 104507Price on requestContact us for price and availability
2102328Ferrari Water Pump Cover - 102328Price on requestContact us for price and availability
3152481Ferrari 365/512 Water Pump Gasket - 152481$8.64In stock
3102906Ferrari Gasket - 102906SupersededOrder 152481 instead
4102766Ferrari Gear - 102766$853.17Available, ships in 3-6 days
5100430Ferrari Water Pump Impeller - 100430$383.24Available, ships in 3-6 days
6102768Ferrari Spacer - 102768$89.05Available, ships in 3-6 days
7102767Ferrari Spacer - 102767$77.24Available, ships in 3-6 days
8100433Ferrari Water Pump Seal - 100433$165.00In stock
9101615Ferrari O-Ring - 101615$5.21Available, ships in 3-6 days
10101603Ferrari Non-sealed SKF Bearing-101603$24.04In stock
1111059076Ferrari Circlip - 11059076$1.36Available, ships in 3-6 days
1111059075Ferrari Circlip - 11059075SupersededOrder 11059076 instead
12102784Ferrari Washer - 102784Price on requestContact us for price and availability
13365DAYWPKITFerrari 365 Water Pump Kit-365DAYWPKIT$196.90In stock
13105548Ferrari Water Pump Seal - 105548$20.35In stock
14100436Ferrari Water Pump Nut - 100436$6.44In stock
1510730301Ferrari Spacer - 10730301SupersededOrder 10730321 instead
1510730321Ferrari Washer - 10730321$1.50Available, ships in 3-6 days
16100434Ferrari Water Pump Lock Tab - 100434$11.98In stock
1713517521Ferrari Threaded Stud 8x12 Stem 45mm - 13517521$1.67Special order, ships in 7-14 days
18101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
1912601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
1912601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
20104517Ferrari Stud Bolt - 104517Price on requestContact us for price and availability
23102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
2412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
2412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
27105588Ferrari Tube - 105588Price on requestContact us for price and availability
28105396Ferrari Coolant Hose - 105396$19.75In stock
29168220Ferrari Hose Clip 44mm - 168220$3.26Available, ships in 3-6 days
29105672Ferrari Hose Clamp - 105672$3.26Available, ships in 3-6 days
30106766Ferrari RH Union - 106766Price on requestContact us for price and availability
31147699Ferrari 365BB/512 Water Pipe Gasket - 147699$9.52In stock
31106767Ferrari Gasket - 106767SupersededOrder 147699 instead
32105395Ferrari Pipe Union - 105395Price on requestContact us for price and availability
33104509Ferrari 512 BB/BBi Water Pipe Gasket - 104509SupersededOrder 152352 instead
33152352Ferrari Water Pipe Gasket - 152352$4.61In stock
34100622Ferrari Coolant Hose-100622$25.30In stock
3513000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
35105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
36104516Ferrari Union - 104516$32.09Available, ships in 3-6 days
37105587Ferrari Pump Drain Pipe - 105587Price on requestContact us for price and availability
38157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
38102721Ferrari Clip - 102721SupersededOrder 157990 instead
95026Ferrari Clamp 29-41 - 95026Price on requestContact us for price and availability
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
102957Ferrari Coolant Hose - 102957$20.68In stock
12173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
26733Ferrari Impeller - 26733SupersededOrder 100430 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
