Ferrari 512 BB (Carburetor) — Transmission Drop Gears (diagram 018)

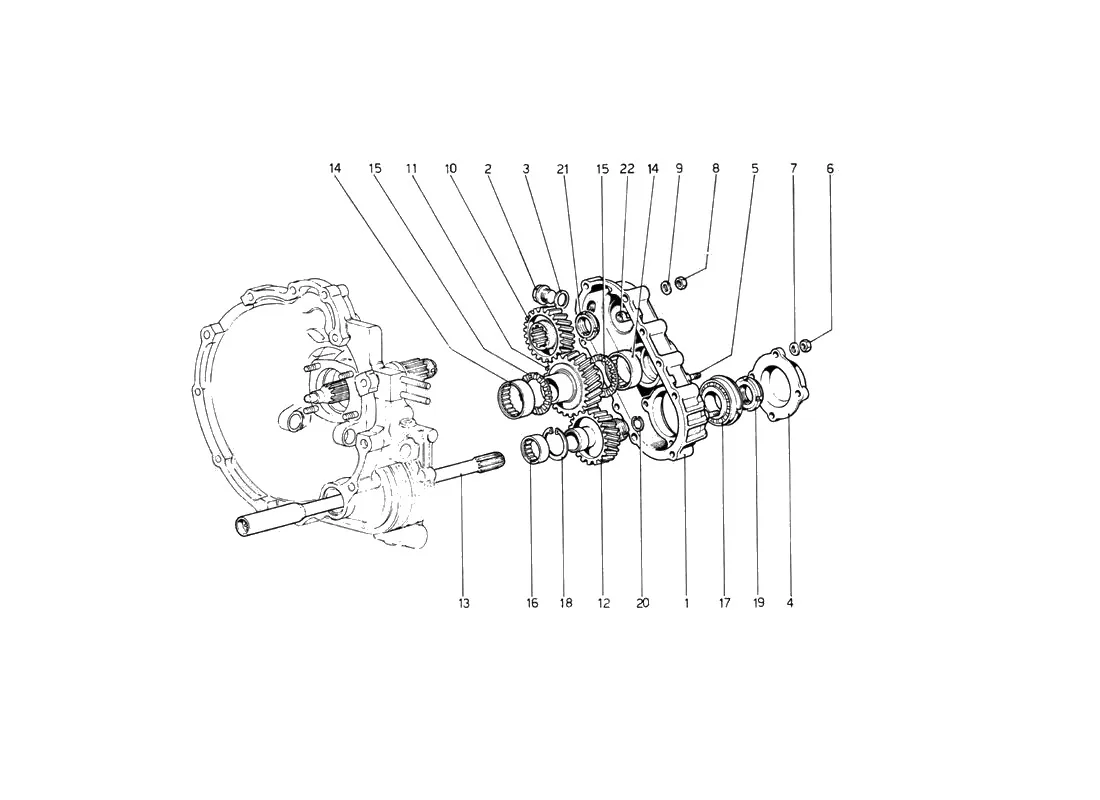

Exploded view of the transmission drop gears on the Ferrari 512 BB (Carburetor), with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/018.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 111303 | Ferrari Clutch Housing Cover - 111303 | Price on request | Contact us for price and availability |
| 1 | 109473 | Ferrari Clutch Housing Cover - 109473 | Price on request | Contact us for price and availability |
| 2 | 10275001 | Ferrari Plug - 10275001 | Superseded | Order 10275011 instead |
| 3 | 10263460 | Ferrari/Maserati Copper Washer - 10263460 | $1.93 | In stock |
| 4 | 102808 | Ferrari Cover - 102808 | Price on request | Contact us for price and availability |
| 5 | 13543321 | Ferrari Short Stud - 13543321 | Superseded | Order 13543324 instead |
| 5 | 13543324 | Ferrari Stud M8 x 16 - Shank 20mm - 13543324 | $11.58 | Available, ships in 3-6 days |
| 6 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 6 | 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead |
| 7 | 12601371 | Ferrari Washer - 12601371 | $0.06 | Available, ships in 3-6 days |
| 7 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 10 | 109456 | Ferrari Gear - 109456 | $311.94 | Available, ships in 3-6 days |
| 11 | 109457 | Ferrari Gear Machined - 109457 | Superseded | Order 119813 instead |
| 11 | 119813 | Ferrari Drop Gear Idler Ground - 119813 | $1,189.62 | Available, ships in 3-6 days |
| 12 | 109458 | Ferrari Gear Machined - 109458 | $666.29 | Available, ships in 3-6 days |
| 13 | 151651 | Ferrari Transmission Shaft - 151651 | $2,787.76 | Available, ships in 3-6 days |
| 13 | 109343 | Ferrari Shaft - 109343 | Superseded | Order 151651 instead |
| 14 | 104840 | Ferrari Roller Bearing - 104840 | $63.44 | Available, ships in 3-6 days |
| 15 | 104841 | Ferrari Needle Thrust Bearing - 104841 | $14.52 | Available, ships in 3-6 days |
| 16 | 103095 | Ferrari Needle Roller Bearing - 103095 | $79.54 | Available, ships in 3-6 days |
| 17 | 126223 | Ferrari Sealed Ball Bearing - 126223 | $729.39 | Available, ships in 3-6 days |
| 17 | 103094 | Ferrari Ball Race Bearing - 103094 | Superseded | Order 126223 instead |
| 18 | 103096 | Ferrari Circlip - 103096 | Price on request | Contact us for price and availability |
| 19 | 153068 | Ferrari Gearbox Ring Nut - 153068 | $94.30 | In stock |
| 19 | 100729 | Ferrari Lock Nut - 100729 | Superseded | Order 153068 instead |
| 20 | 11058275 | Ferrari Circlip - 11058275 | $0.17 | Available, ships in 3-6 days |
| 21 | 106095 | Ferrari Ring Nut - 106095 | $37.95 | In stock |
| 22 | 109336 | Ferrari Tube - 109336 | $109.08 | Special order, ships in 7-14 days |
| 116063 | Ferrari Bearing - 116063 | Superseded | Order 126223 instead | |
| 104835 | Ferrari Circlip - 104835 | Price on request | Contact us for price and availability | |
| 10275011 | Ferrari Crankcase/Gearbox Drain Plug and Gasket - 10275011 | $15.15 | In stock | |
| 163736 | Ferrari Drive Gear Cover - 163736 | Price on request | Contact us for price and availability | |
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102321 | Ferrari Nut - 16102321 | Price on request | Contact us for price and availability | |
| 10305140 | Ferrari Plug - 10305140 | Superseded | Order 10275011 instead | |
| 10305171 | Ferrari Plug - 10305171 | Superseded | Order 10275011 instead | |
| 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead | |
| 13516821 | Ferrari RH Threaded Stud - 13516821 | Superseded | Order 13543324 instead |
