Ferrari 512 BB (Carburetor) — Gear Box (diagram 020)

Exploded view of the gear box on the Ferrari 512 BB (Carburetor), with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

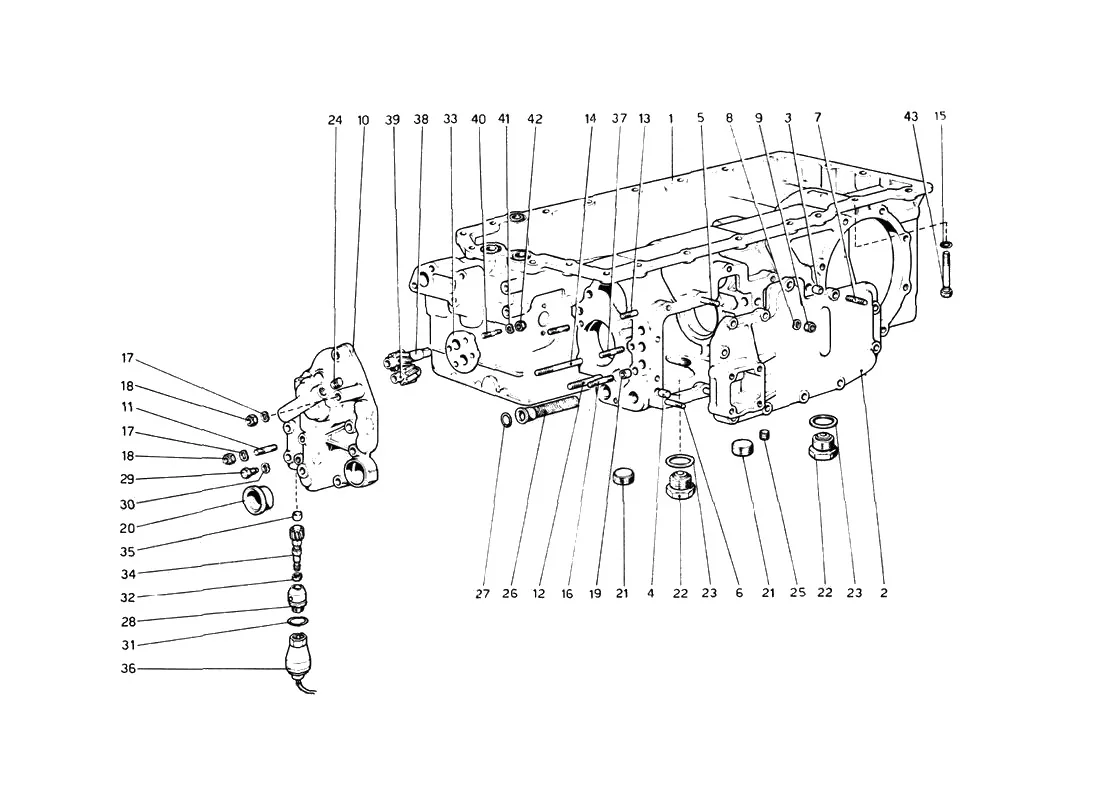

Ferrari 512 BB (Carburetor) Gear Box exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1111305Ferrari Gearbox Casing Complete - 111305SupersededOrder 119381 instead
1119381Ferrari Gearbox Casing Complete - 119381$16,023.52Contact us to order
1109431Ferrari Gearbox Casing - 109431$16,023.52Contact us to order
2107450Ferrari Testarossa Transmission Side Cover - Long Stud - 107450$233.22Available, ships in 3-6 days
3100041Ferrari Dowel - 100041$14.22Available, ships in 3-6 days
410839810Ferrari Dowel Bolt - 10839810$0.46Available, ships in 3-6 days
513543524Ferrari Stud Bolt M8x16 -Shank length 25- - 13543524$9.16Available, ships in 3-6 days
513543521Ferrari Stud - 13543521SupersededOrder 13543524 instead
613543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
613543324Ferrari Stud M8 x 16 - Shank 20mm - 13543324$11.58Available, ships in 3-6 days
713543621Ferrari Stud - 13543621Price on requestContact us for price and availability
812601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
812601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
916102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
916100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
10109695Ferrari Gearbox Cover - 109695$1,215.57Available, ships in 3-6 days
1213544421Ferrari Stud - 13544421$1.15Available, ships in 3-6 days
1313544221Ferrari Stud - 13544221$5.12Available, ships in 3-6 days
1413970921Ferrari Stud - 13970921SupersededOrder 13970924 instead
1413970924Ferrari Stud - 13970924$12.61Available, ships in 3-6 days
15103039Ferrari O-Ring - 103039$1.65In stock
1613543821Ferrari Stud M8 x 16 Gambo 40 - 13543821$4.54Special order, ships in 7-14 days
20103188Ferrari Bush - 103188Price on requestContact us for price and availability
2110270050Ferrari Core Plug - 10270050$7.72Available, ships in 3-6 days
22100826Ferrari Drain Plug - 100826$138.19Available, ships in 3-6 days
2310265160Ferrari Copper Washer - 10265160$1.93In stock
2410269450Ferrari Plug - 10269450$26.43Available, ships in 3-6 days
25104757Ferrari Plug - 104757$1.34Available, ships in 3-6 days
26109726Ferrari Oil Filter - 109726$394.12Available, ships in 3-6 days
27101033Ferrari O-Ring - 101033$1.54In stock
28107681Ferrari Speedo Drive - 107681Price on requestContact us for price and availability
29101349Ferrari Bolt - 101349$21.24Available, ships in 3-6 days
31101848Ferrari O-Ring - 101848$3.85In stock
32104103Ferrari Speedometer Sending Unit Housing Seal - 104103$9.35In stock
33109717Ferrari Cover - 109717Price on requestContact us for price and availability
34109479Ferrari Pinion - 109479Price on requestContact us for price and availability
35105674Ferrari Thrust roller - 105674$11.77Available, ships in 3-6 days
36124146Ferrari Speedo Sensor-124146$557.70In stock
36124146FWFerrari Speedometer Sensor Fiber Washer - 124146FW$1.10In stock
36106324Ferrari Sender - 106324SupersededOrder 124146 instead
3713543721Ferrari Stud - 13543721SupersededOrder 13543724 instead
38109722Ferrari Leader Gear - 109722$3,764.90Available, ships in 3-6 days
39109723Ferrari Driven Gear - 109723$1,611.38Special order, ships in 7-14 days
4013540924Ferrari Stud - 13540924$78.66Available, ships in 3-6 days
4013540921Ferrari Stud - 13540921SupersededOrder 13540924 instead
4112601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
4112601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
4210725911Ferrari RH Thread Nut 6mm - 10725911SupersededOrder 10725914 instead
4210725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
43109997Ferrari Bolt - 109997$118.28Available, ships in 3-6 days
123566Ferrari Boxer Transmission Side Cover - Short Stud - 123566$233.22Available, ships in 3-6 days
119380Ferrari Gearbox Assy - 119380Price on requestContact us to order
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
13544224Ferrari Stud - 13544224SupersededOrder 13544221 instead
13544424Ferrari Stud - 13544424$14.49Available, ships in 3-6 days
13517820Ferrari Stud Bolt - 13517820SupersededOrder 13544221 instead
13517821Ferrari Stud Bolt - 13517821SupersededOrder 13544221 instead
13543624Ferrari Stud Bolt M8x16 -Shank length 30- - 13543624Price on requestContact us for price and availability
13543724Ferrari Stud Bolt M8x16 -Shank length 35- - 13543724$3.26Special order, ships in 7-14 days
13543824Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824$6.31Available, ships in 3-6 days
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
-111302Ferrari Gearbox - 111302Price on requestContact us to order
