Ferrari 512 BB (Carburetor) — Lay Shaft Gears (diagram 022)

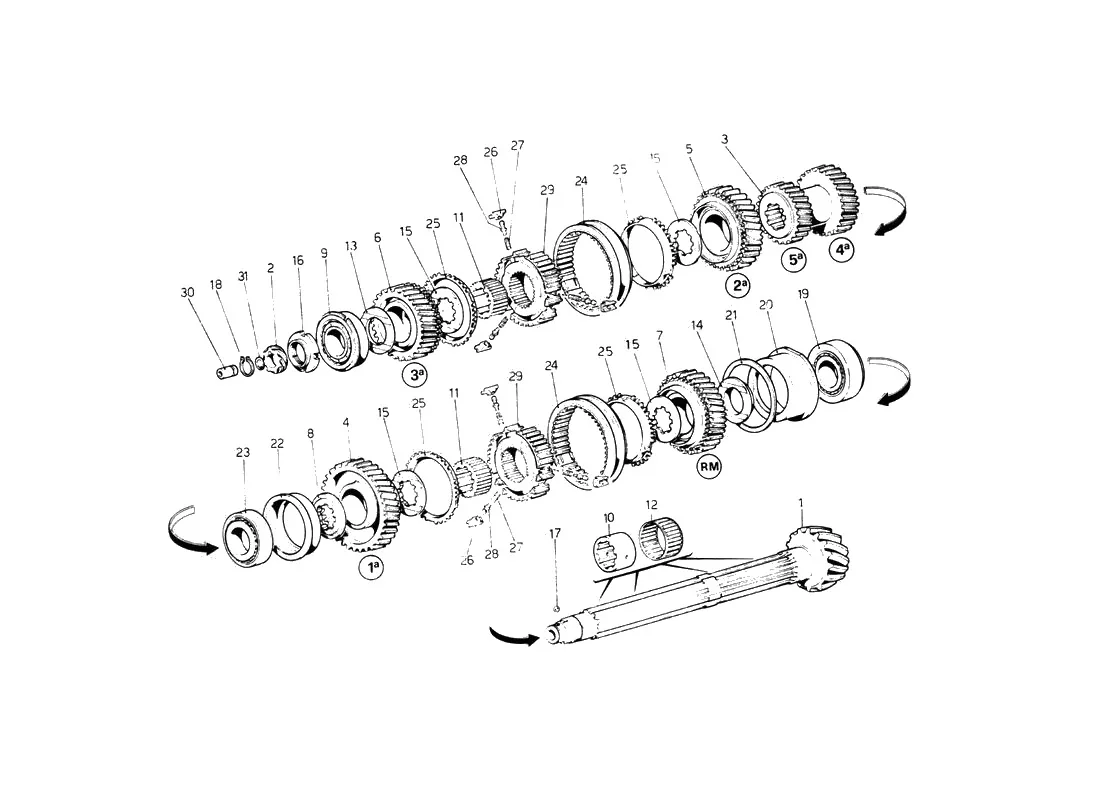

Exploded view of the lay shaft gears on the Ferrari 512 BB (Carburetor), with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Lay Shaft Gears exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1109432Ferrari Pinion Shaft - 109432Price on requestContact us for price and availability
1110013Ferrari Pinion Shaft - 110013$11,424.45Available, ships in 3-6 days
2109477Ferrari Screw - 109477$157.45Available, ships in 3-6 days
3105746Ferrari 4/5th Gear - 105746Price on requestContact us for price and availability
4110168Ferrari Gear 1St - 110168Price on requestContact us for price and availability
5110169Ferrari Gear - 110169Price on requestContact us for price and availability
6105756Ferrari 3rd Gear - 105756$1,257.62Available, ships in 3-6 days
6110170Ferrari 3rd Gear Machined - 110170$1,900.30Available, ships in 3-6 days
7109475Ferrari Gear Machined - 109475SupersededOrder 119810 instead
7119810Ferrari Rm Gear - 119810$882.86Available, ships in 3-6 days
8102977Ferrari Spacer 5.9mm - 102977$118.01Available, ships in 3-6 days
8102978Ferrari Spacer 6.3mm - 102978Price on requestContact us for price and availability
8102979Ferrari Spacer 6.5mm - 102979SupersededOrder 110179 instead
8110179Ferrari Spacer 6.20mm - 110179$37.05Available, ships in 3-6 days
8102980Ferrari Spacer 6.7mm - 102980SupersededOrder 110180 instead
8110180Ferrari Spacer 6.30mm - 110180$66.72Available, ships in 3-6 days
8102981Ferrari Spacer 7.0mm - 102981SupersededOrder 110181 instead
8110181Ferrari Spacer 6.40mm - 110181$93.53Available, ships in 3-6 days
8110177Ferrari Spacer 6.00mm - 110177SupersededOrder 102977 instead
8110178Ferrari Spacer 6.10mm - 110178Price on requestContact us for price and availability
9103030Ferrari Roller Bearing - 103030$355.72Available, ships in 3-6 days
10104704Ferrari Bush - 104704$1,039.60Available, ships in 3-6 days
11104711Ferrari Synchro Hub Bush - 104711SupersededOrder 146230 instead
11146230Ferrari Synchronizer Hub Complete With Bushing - 146230$676.60Available, ships in 3-6 days
12101604Ferrari Roller Bearing - 101604$186.42Available, ships in 3-6 days
13107132Ferrari Spacer - 107132$167.15Available, ships in 3-6 days
13110176Ferrari Thrust Spacer - 110176$482.02Available, ships in 3-6 days
14105766Ferrari Spacer - 105766$139.11Available, ships in 3-6 days
14110174Ferrari Spacer - 110174SupersededOrder 105766 instead
15110175Ferrari Spacer - 110175$344.96Available, ships in 3-6 days
15104723Ferrari Spacer - 104723SupersededOrder 110175 instead
16153068Ferrari Gearbox Ring Nut - 153068$94.30In stock
16100729Ferrari Lock Nut - 100729SupersededOrder 153068 instead
17101611Ferrari Ball Bearing - 101611$1.30Available, ships in 3-6 days
1811067375Ferrari Circlip - 11067375SupersededOrder 11067376 instead
1811067376Ferrari Ring - 11067376$2.57Available, ships in 3-6 days
19101636Ferrari Tapered Roller Bearing - 101636$265.46Available, ships in 3-6 days
20109609Ferrari Bush - 109609Price on requestContact us for price and availability
21104725Ferrari Spacer 2.00mm - 104725Price on requestContact us for price and availability
21104726Ferrari Spacer 2.10mm - 104726Price on requestContact us for price and availability
21104727Ferrari Spacer 2.20mm - 104727$27.91Special order, ships in 7-14 days
21104728Ferrari Spacer 2.30mm - 104728Price on requestContact us for price and availability
21104729Ferrari Spacer 2.40mm - 104729$44.60Available, ships in 3-6 days
22104730Ferrari Bush - 104730Price on requestContact us for price and availability
23103031Ferrari Tapered Roller Bearing - 103031$337.94Available, ships in 3-6 days
24106038Ferrari Synchro Sleeve - 106038$2,213.46Available, ships in 3-6 days
24104092Ferrari Synchro Mesh - 104092Price on requestContact us for price and availability
25106040Ferrari Synchro Ring - 106040$702.11In stock
26106042Ferrari Selector Block - 106042$375.86Available, ships in 3-6 days
27106043Ferrari Synchro Spring - 106043$6.50Available, ships in 3-6 days
28106044Ferrari Synchro Lock Pin - 106044SupersededOrder 113412 instead
28113412Ferrari Synchronizer Lock Pin - 113412$38.41Available, ships in 3-6 days
29106039Ferrari Synchronizer - 106039$752.92Available, ships in 3-6 days
30104745Ferrari Bush - 104745$64.57Available, ships in 3-6 days
31105329Ferrari O Ring-105329$2.95In stock
148669Ferrari Pinion Bearing/Bush - 148669Price on requestContact us for price and availability
184547Ferrari Synchro Sleeve - 184547SupersededOrder 106038 instead
