Ferrari 512 BB (Carburetor) — Brake Hydraulic System (diagram 025)

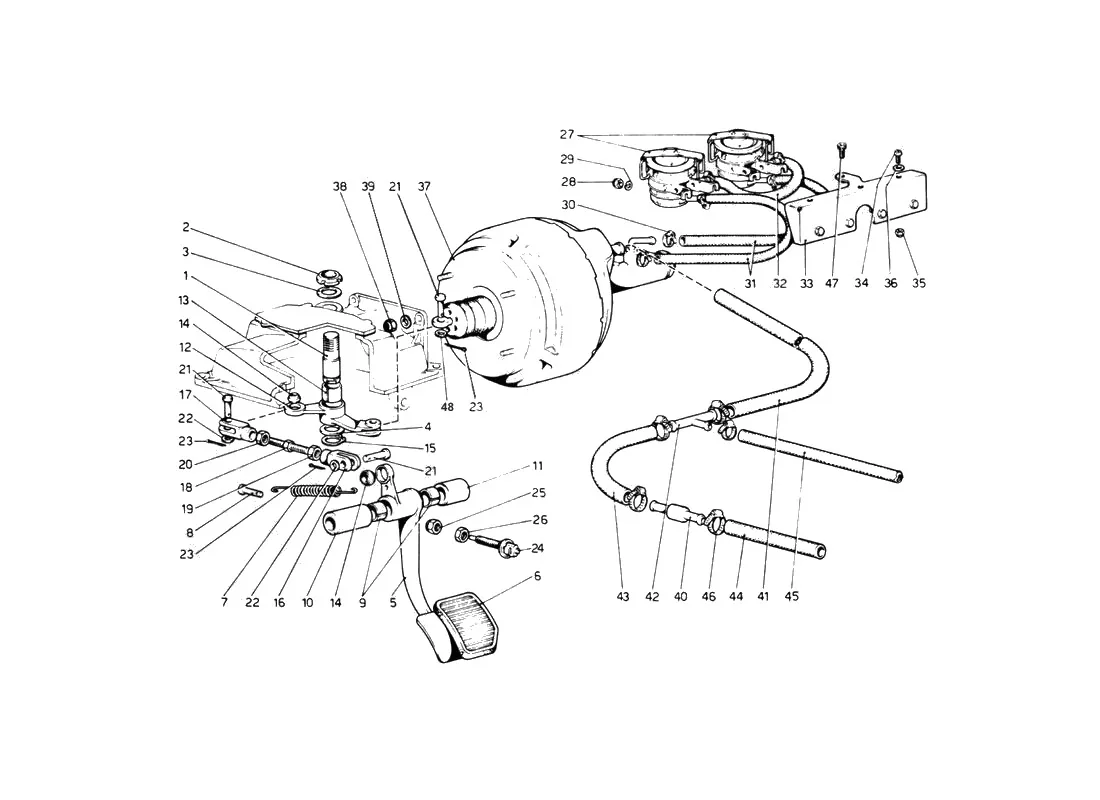

Exploded view of the brake hydraulic system on the Ferrari 512 BB (Carburetor), with 77 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Brake Hydraulic System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106081Ferrari Brake pedal linkage pin - 106081$75.15Available, ships in 3-6 days
2101648Ferrari Nyloc Nut M16 x 1.5 x 10.5 - 101648$6.54Available, ships in 3-6 days
2106082Ferrari Nyloc Nut - 106082SupersededOrder 101648 instead
3106084Ferrari Washer - 106084$10.35Available, ships in 3-6 days
4108382Ferrari Spacer - 108382$14.39Available, ships in 3-6 days
5107249Ferrari Pedal - 107249$596.91Available, ships in 3-6 days
6106950Ferrari Brake Pedal Pad - 106950$18.65In stock
7104895Ferrari Spring - 104895$41.06Available, ships in 3-6 days
8104896Ferrari Clevis Pin - 104896$46.94Available, ships in 3-6 days
9103163Ferrari Bush - 103163$12.21Available, ships in 3-6 days
10104902Ferrari Spacer - 104902$52.54Available, ships in 3-6 days
11104903Ferrari Spacer - 104903$59.47Available, ships in 3-6 days
12108313Ferrari Lever - 108313$106.97Available, ships in 3-6 days
13100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
14100424Ferrari Spherical joint - 100424$40.69Available, ships in 3-6 days
1511066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
16104910Ferrari RH Threaded Fork - 104910$13.68Available, ships in 3-6 days
17104911Ferrari LH Threaded Fork - 104911$34.58Special order, ships in 7-14 days
18104912Ferrari Rod - 104912$30.21Available, ships in 3-6 days
19103157Ferrari LH Thread Nut - 103157Price on requestContact us for price and availability
20103160Ferrari RH Thread Nut - 103160$3.85Available, ships in 3-6 days
2110033411Ferrari Pin - 10033411SupersededOrder 10033414 instead
2110033414Ferrari Clevis Pin - 10033414$18.76Available, ships in 3-6 days
22103167Ferrari Washer - 103167$6.98Special order, ships in 7-14 days
2310796301Ferrari Split pin - 10796301Price on requestContact us for price and availability
24101663Ferrari Brake Light Switch - 101663$42.85In stock
25101662Ferrari Nylon Nut - 101662Price on requestContact us for price and availability
2610791211Ferrari Nut - 10791211$0.96Available, ships in 3-6 days
27105577Ferrari Fluid Container - 105577$492.07Available, ships in 3-6 days
2795691500Ferrari Brake Fluid Reservoir (twin) - 95691500$492.07Available, ships in 3-6 days
28102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2812574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
2910519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2910519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
30102604Ferrari Clip - 102604Price on requestContact us for price and availability
31105857Ferrari Front Rubber Hose - 105857$18.25Special order, ships in 7-14 days
32105944Ferrari Pipe - 105944$43.95Available, ships in 3-6 days
33105945Ferrari Bracket - 105945Price on requestContact us for price and availability
34106196Ferrari Screw - 106196$4.22Available, ships in 3-6 days
3610262660Ferrari Washer - 10262660$0.54Available, ships in 3-6 days
37105230Ferrari Brake Servo - 105230Price on requestContact us for price and availability
38104030Ferrari/Maserati Nut - 104030$0.88In stock
3816104411Ferrari Nyloc Nut M8 x 8.5 - 16104411$0.46Available, ships in 3-6 days
3912601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
3912601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
40128435AFerrari Brake Booster Check Valve - 128435A$48.80In stock
40101538Ferrari Servo Valve - 101538SupersededOrder 128435 instead
41110749Ferrari Servo Pipe - 110749Price on requestContact us for price and availability
42105859Ferrari T Piece Union - 105859$33.08Available, ships in 3-6 days
43107982Ferrari Servo Hose - 107982Price on requestContact us for price and availability
44110750Ferrari Rubber Hose - 110750Price on requestContact us for price and availability
45105862Ferrari Pipe - 105862Price on requestContact us for price and availability
46100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
4613000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
4810730521Ferrari Plain Washer - 10730521$4.54Available, ships in 3-6 days
211377Ferrari Brake Hose - Reservoir to Master - 211377$10.00In stock
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
12179190Ferrari Clip - 12179190Price on requestContact us for price and availability
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
157934Ferrari Jubilee Clip - 157934Price on requestContact us for price and availability
106094Ferrari Lever - 106094$277.05Available, ships in 3-6 days
10788711Ferrari Nut - 10788711$0.38Available, ships in 3-6 days
660523Ferrari Nut - 660523Price on requestContact us for price and availability
4032794Ferrari Nylon Nut - 4032794$5.59Available, ships in 3-6 days
107041Ferrari Pipe - 107041Price on requestContact us for price and availability
680910Ferrari Pipe - 680910Price on requestContact us for price and availability
10730514Ferrari Plain Washer - 10730514SupersededOrder 10730521 instead
116883Ferrari Servo Pipe - 116883Price on requestContact us for price and availability
680956Ferrari Servo Valve - 680956SupersededOrder 128435 instead
144-81-852-00Ferrari Sl Switch - 144-81-852-00SupersededOrder 101663 instead
11066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
4177124Ferrari Stop Switch - 4177124SupersededOrder 101663 instead
660522Ferrari Switch Stop - 660522SupersededOrder 101663 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
