Ferrari 512 BB (Carburetor) — Front Suspension - Wishbones (diagram 032)

Exploded view of the front suspension - wishbones on the Ferrari 512 BB (Carburetor), with 81 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

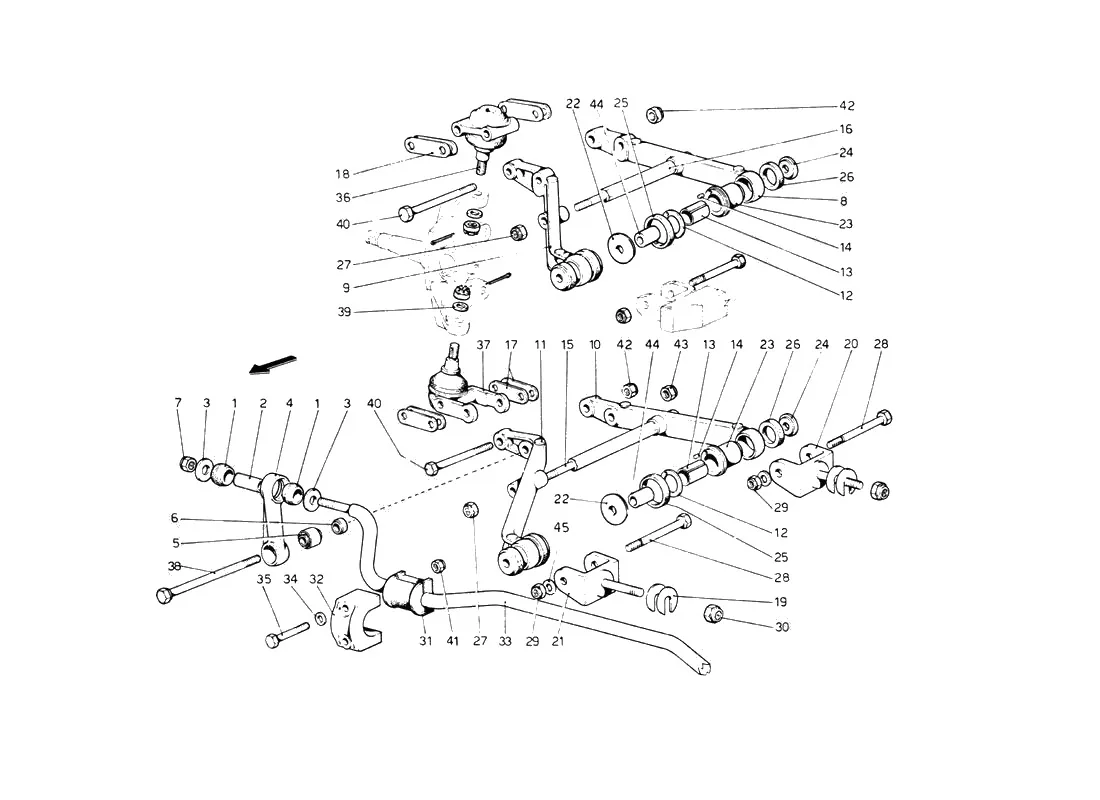

Ferrari 512 BB (Carburetor) Front Suspension - Wishbones exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1100984Ferrari Front Sway Bar Link Bushing - 100984$11.55In stock
2108998Ferrari Spacer - 108998$33.91Available, ships in 3-6 days
3100774Ferrari Washer - 100774$13.33Available, ships in 3-6 days
3105334Ferrari Spacer - 105334$16.14Available, ships in 3-6 days
4108431Ferrari 308/512 Front Sway Bar Link-108431$297.00Contact us
4103245Ferrari Link Arm - 103245$307.64Special order, ships in 7-14 days
5100773RFerrari Sway Bar Link Silent Block Bushing - 100773$38.50In stock
5100773Ferrari Bonded Silent Bloc Bush - 100773$38.50Available, ships in 3-6 days
6103246Ferrari Spacer - 103246Price on requestContact us for price and availability
7148020Ferrari Nut - 148020$7.65In stock
716105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
8103200Ferrari LH Suspension Lever - 103200$552.50Available, ships in 3-6 days
8103197Ferrari RH Suspension Lever - 103197$552.50Available, ships in 3-6 days
8103248Ferrari LH Front Suspension Arm With Bushes - 103248Price on requestContact us for price and availability
8103249Ferrari RH Front Suspension Arm With Bushes - 103249Price on requestContact us for price and availability
9103198Ferrari RH Suspension Lever - 103198$567.76Available, ships in 3-6 days
9103199Ferrari LH Suspension Lever - 103199$567.76Available, ships in 3-6 days
9103253Ferrari LH Front Suspension Arm With Bushes - 103253Price on requestContact us for price and availability
9103252Ferrari RH Front Suspension Arm With Bushes - 103252Price on requestContact us for price and availability
10103201Ferrari Lower Rear Suspension Lever - 103201$521.49Available, ships in 3-6 days
11103202Ferrari Lower Front Suspension Lever - 103202$1,926.70Available, ships in 3-6 days
12101009Ferrari Suspension Thrust Washer - 101009$13.92In stock
13101010Ferrari 275/365 Inner Suspension Bushing-101010$17.33In stock
14100796Ferrari Dowel Pin - 100796$7.10In stock
15103205Ferrari Spacer Bar - 103205$234.23Available, ships in 3-6 days
16103206Ferrari Suspension Lever - 103206$363.55Available, ships in 3-6 days
17101022Ferrari Lower suspension Shim 1.5mm - 101022$2.82Available, ships in 3-6 days
18103256Ferrari Top Suspension Shim Spacer - 103256$7.49Available, ships in 3-6 days
19101039Ferrari Suspension Shim - 101039$3.25In stock
19107338Ferrari Shim Washer 1.50mm - 107338$3.14Available, ships in 3-6 days
19107339Ferrari Shim Washer 2.00mm - 107339$3.91Available, ships in 3-6 days
19107340Ferrari Shim Washer 2.50mm - 107340$4.14Available, ships in 3-6 days
19107341Ferrari Shim Washer 3.00mm - 107341$3.14Available, ships in 3-6 days
19107342Ferrari Shim Washer 3.25mm - 107342$1.80Available, ships in 3-6 days
20104620Ferrari Suspension Fork - 104620$613.66Available, ships in 3-6 days
21104621Ferrari Fork - 104621Price on requestContact us for price and availability
22109901Ferrari Suspension Washer - 109901$75.68In stock
23105442Ferrari Front Bushing - 105442$58.28In stock
24105443Ferrari Suspension Bush Plate - 105443$25.63Available, ships in 3-6 days
25105342Ferrari Suspension Seal - 105342$24.75In stock
26105343Ferrari Suspension Grommet-105343$14.06In stock
28106419Ferrari Suspension Bolt - 106419$31.35In stock
30150238Ferrari Nyloc Nut - 150238$1.05In stock
3012575821Ferrari Nut - 12575821SupersededOrder 150238 instead
31108748Ferrari Rear Sway Bar Bushing - 108748$25.85In stock
32104027Ferrari Support - 104027Price on requestContact us for price and availability
33106828Ferrari Anti Roll Bar Front - 106828$1,470.01Available, ships in 3-6 days
3412601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
3412601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
3511288021Ferrari Bolt M10 x 1.25 x 60 - 11288021$34.19Available, ships in 3-6 days
36101441Ferrari Upper Ball Joint - 101441SupersededOrder 116280 instead
37116281Ferrari Ball Joint Kit - 116281$735.90In stock
37AW6348000Ferrari Suspension Kit-AW6348000$485.00In stock
37133944Ferrari Lower Ball Joint - 133944$125.76In stock
37133944BFerrari Ball Joint Boot - 133944B$27.99In stock
37101442Ferrari Lower Ball Joint - 101442SupersededOrder 133944 instead
38103241Ferrari Suspension Bolt - 103241$82.46Available, ships in 3-6 days
38101052Ferrari Bolt - 101052$84.56Available, ships in 3-6 days
39101445Ferrari Washer - 101445$1.17Available, ships in 3-6 days
4015972031Ferrari Bolt - 15972031$49.60Available, ships in 3-6 days
41102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
4112575611Ferrari Nut - 12575611SupersededOrder 102742 instead
4212574521Ferrari Nyloc Nut - 12574521$1.74Available, ships in 3-6 days
44109903Ferrari Suspension Bush - 109903$166.02Available, ships in 3-6 days
4512601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
4512646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
100808Ferrari Bolt - 100808SupersededOrder 106419 instead
601475Ferrari Bolt - 601475SupersededOrder 106419 instead
640999Ferrari Link Arm - 640999Price on requestContact us for price and availability
114462Ferrari Lower Ball Joint - 114462SupersededOrder 133944 instead
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
600771Ferrari Thrust Washer - 600771SupersededOrder 101009 instead
641486Ferrari Upper Ball Joint - 641486SupersededOrder 116280 instead
116280Ferrari Upper Ball Joint -116280$174.90In stock
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
107422Ferrari Washer 3.25mm - 107422SupersededOrder 107342 instead

All 512 BB (Carburetor) diagrams
