Ferrari 512 BB (Carburetor) — Rear Suspension - Wishbones And Shock Absorbers (diagram 034)

Exploded view of the rear suspension - wishbones and shock absorbers on the Ferrari 512 BB (Carburetor), with 81 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

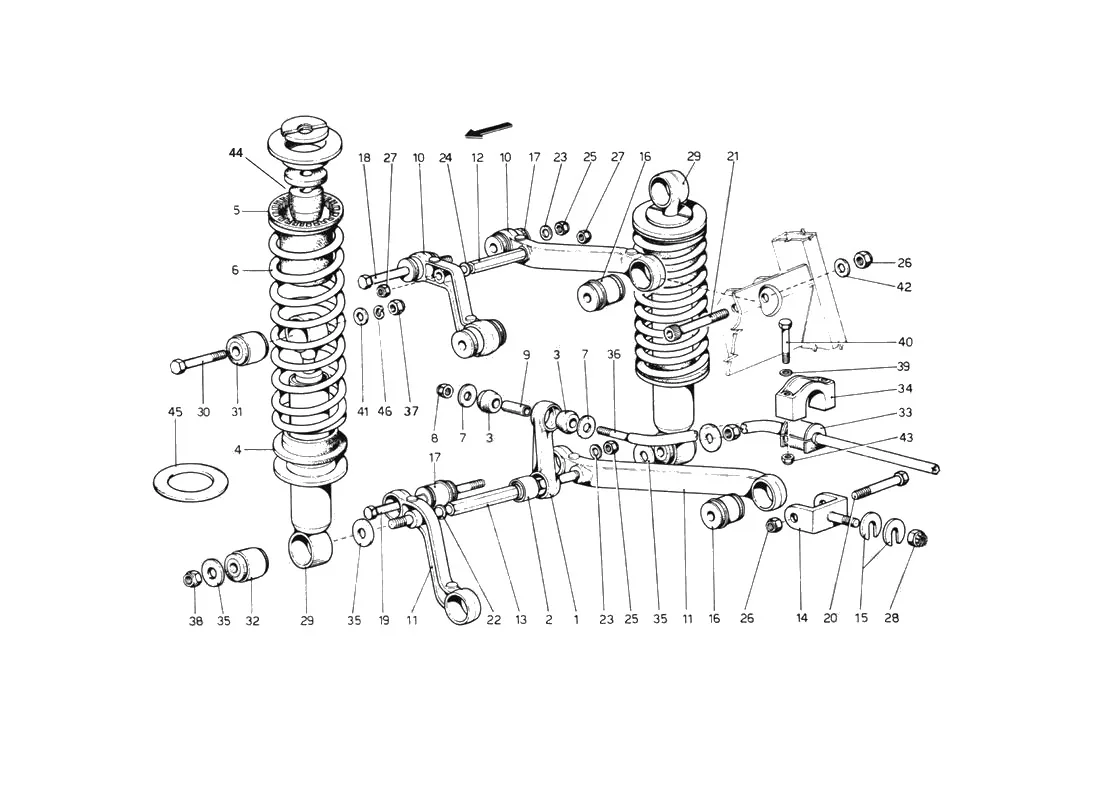

Ferrari 512 BB (Carburetor) Rear Suspension - Wishbones And Shock Absorbers exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108666Ferrari Link - 108666Price on requestContact us for price and availability
24290Ferrari Rear Suspension Bushing-105436$53.74In stock
3100984Ferrari Front Sway Bar Link Bushing - 100984$11.55In stock
4103263/4Ferrari Shock Spring Seat Upper & Lower Pair - 103263/4$79.20In stock
4103264Ferrari Lower Spring Pad - 103264$72.20Available, ships in 3-6 days
5103263Ferrari Shock Absorber Dust cover - 103263$70.26Available, ships in 3-6 days
6110918Ferrari Rear Road Spring - 110918$734.66Available, ships in 3-6 days
7105668Ferrari Washer - 105668Price on requestContact us for price and availability
8104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
812575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
9105669Ferrari Tube - 105669Price on requestContact us for price and availability
10103129Ferrari Upper Suspension Arm With Bushes - 103129Price on requestContact us for price and availability
10103130Ferrari Suspension Lever Arm (Rear Upper) - 103130$2,553.31Available, ships in 3-6 days
11103131Ferrari Lower Suspension Arm With Bushes - 103131Price on requestContact us for price and availability
11103132Ferrari Suspension Lever Arm (Rear Lower) - 103132$2,141.37Available, ships in 3-6 days
12103135Ferrari Upper Rear Suspension Lever - 103135$265.34Available, ships in 3-6 days
13103136Ferrari Lower Rear Suspension Lever - 103136$531.66Available, ships in 3-6 days
14103138Ferrari Suspension Lever Pick Up - 103138$262.10Special order, ships in 7-14 days
15101039Ferrari Suspension Shim - 101039$3.25In stock
15107338Ferrari Shim Washer 1.50mm - 107338$3.14Available, ships in 3-6 days
15107339Ferrari Shim Washer 2.00mm - 107339$3.91Available, ships in 3-6 days
15107340Ferrari Shim Washer 2.50mm - 107340$4.14Available, ships in 3-6 days
15107341Ferrari Shim Washer 3.00mm - 107341$3.14Available, ships in 3-6 days
15107342Ferrari Shim Washer 3.25mm - 107342$1.80Available, ships in 3-6 days
16134883Ferrari Silent Bloc - 134883$112.30In stock
16101091Ferrari Silentbloc - 101091SupersededOrder 134883 instead
17154536KITFerrari Control Arm Bushing Kit Rear - 154536KIT$379.50In stock
17154536Ferrari/Maserati Control Arm Bushing - 154536$59.98In stock
17103170Ferrari Bush - 103170SupersededOrder 111616 instead
18100793Ferrari Bolt - 100793$39.37Available, ships in 3-6 days
19103172Ferrari Bolt - 103172$132.23Available, ships in 3-6 days
20106422Ferrari Bolt M14 x 1.5 x 84 - 106422$54.06Available, ships in 3-6 days
21106423Ferrari Allen Screw - 106423$56.08Available, ships in 3-6 days
22105434Ferrari Spacer 0.5mm - 105434$50.96Available, ships in 3-6 days
22105433Ferrari Spacer 0.3mm - 105433Price on requestContact us for price and availability
22105435Ferrari Spacer 0.7mm - 105435Price on requestContact us for price and availability
2312601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
2312646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
24105931Ferrari Spacer 0.7mm - 105931$1.48Available, ships in 3-6 days
24105930Ferrari Spacer 0.5mm - 105930$3.12Available, ships in 3-6 days
24105929Ferrari Spacer 0.3mm - 105929$1.36Available, ships in 3-6 days
25148020Ferrari Nut - 148020$7.65In stock
2516105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
26150238Ferrari Nyloc Nut - 150238$1.05In stock
2612575821Ferrari Nut - 12575821SupersededOrder 150238 instead
28101040Ferrari Locking Nut - 101040$27.73Available, ships in 3-6 days
29110921PRFerrari 512 Rear Koni Shock Absorber PAIR - 110921PR$1,029.60In stock
29110921Rear Koni Shock Absorber - 110921$524.70In stock
30106419Ferrari Suspension Bolt - 106419$31.35In stock
31100809Ferrari Shock Bushing - 100809$25.25In stock
32100810Ferrari Rear Shock Bushing - 100810$37.95In stock
33110874Ferrari Rear Sway Bar Bushing - 110874$27.34In stock
34104027Ferrari Support - 104027Price on requestContact us for price and availability
35128509Ferrari Washer - 128509$14.39Available, ships in 3-6 days
35103193Ferrari Spacing Washer - 103193$14.30Available, ships in 3-6 days
36109660Ferrari Anti Roll Bar Rear - 109660Price on requestContact us for price and availability
3912601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
3912601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
4011288021Ferrari Bolt M10 x 1.25 x 60 - 11288021$34.19Available, ships in 3-6 days
41106616Ferrari Washer - 106616SupersededOrder 12601574 instead
4112601574Ferrari Wavy Washer 13mm - 12601574$0.13Available, ships in 3-6 days
4210520121Ferrari Washer - 10520121$6.73Available, ships in 3-6 days
43102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
4312575611Ferrari Nut - 12575611SupersededOrder 102742 instead
44107493Ferrari Bump Stop - 107493Price on requestContact us for price and availability
45107494Ferrari Spacer - 107494Price on requestContact us for price and availability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
100808Ferrari Bolt - 100808SupersededOrder 106419 instead
601475Ferrari Bolt - 601475SupersededOrder 106419 instead
601157Ferrari Bush - 601157SupersededOrder 111616 instead
104346Ferrari Link - 104346Price on requestContact us for price and availability
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
105223Ferrari Shock Absorber Dust Cover - 105223$68.29Available, ships in 3-6 days
129583Ferrari Silentbloc(Wa Type) - 129583SupersededOrder 134883 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601579Ferrari Washer - 12601579SupersededOrder 12601574 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
107422Ferrari Washer 3.25mm - 107422SupersededOrder 107342 instead

All 512 BB (Carburetor) diagrams
