Ferrari 512 BB (Carburetor) — Wheels (diagram 035)

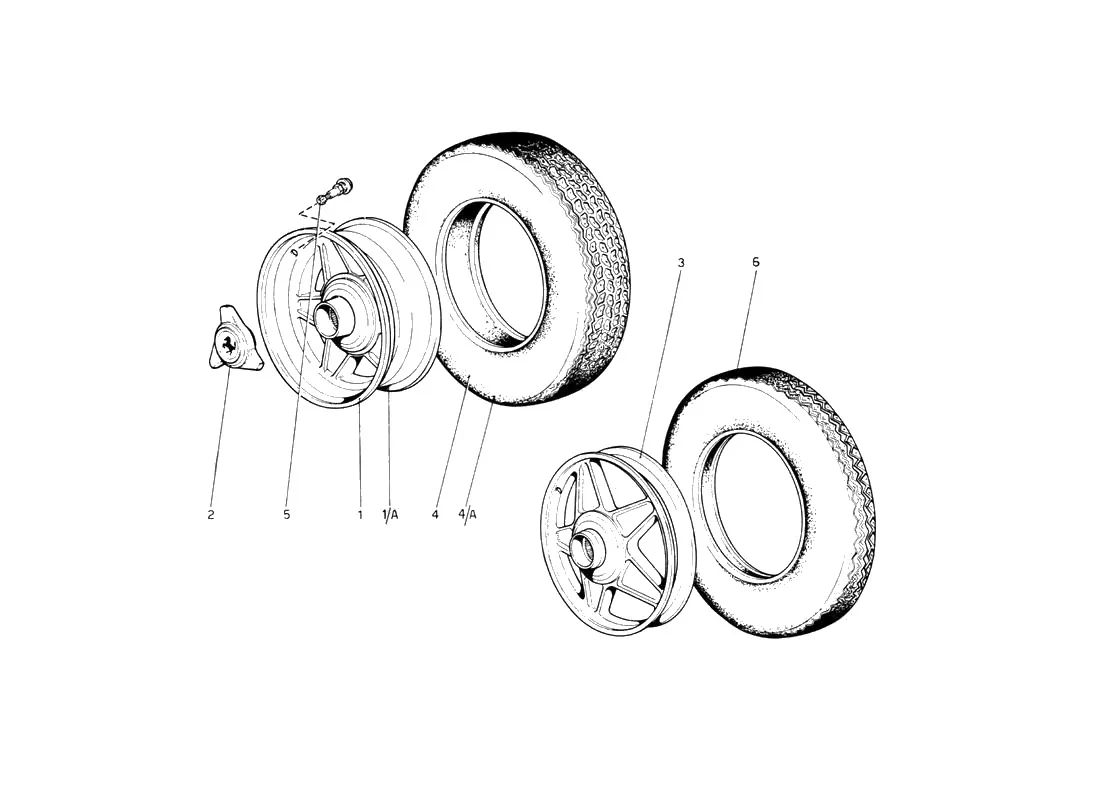

Exploded view of the wheels on the Ferrari 512 BB (Carburetor), with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/035.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 109186 | Ferrari Road Wheel 365BB/512BB - 109186 | Price on request | Contact us for price and availability |
| 1A | 109193 | Ferrari Road Wheel 9Lx15 magnesium - 109193 | $1,770.31 | Available, ships in 3-6 days |
| 1A | 109193/A/D | Ferrari Road Wheel 9Lx15 alloy - 109193/A/D | $1,495.86 | Available, ships in 3-6 days |
| 2 | 110524 | Ferrari LH Hub Nut RH Thread - 110524 | $2,901.07 | Available, ships in 3-6 days |
| 2 | 110525 | Ferrari RH Hub Nut LH Thread - 110525 | $2,901.07 | Available, ships in 3-6 days |
| 2 | 110526 | Ferrari Hex Hub Nut RH Thread - 110526 | $516.41 | Available, ships in 3-6 days |
| 2 | 110527 | Ferrari Hex Hub Nut LH Thread - 110527 | Price on request | Contact us for price and availability |
| 3 | 105305 | Ferrari 365Bb Spare Wheel 3 1/4 Bx19 - 105305 | Price on request | Contact us for price and availability |
| 4 | 101237 | Ferrari 215Vr7015 Xwx Michelin Tyre T/Ls - 101237 | Price on request | Contact us for price and availability |
| 4A | 109187 | Ferrari Tyre Michelin XWX 225/70VR15 - 109187 | $969.12 | Special order, ships in 7-14 days |
| 5 | 174166 | Ferrari Tire Valve - 174166 | $17.16 | In stock |
| 5 | 105069 | Ferrari Tyre Valve - 105069 | Price on request | Special order, ships in 7-14 days |
| 6 | 110201 | Ferrari Spare Tyre 105 R 20 Mcp278 - 110201 | Price on request | Contact us for price and availability |
| 102332 | Ferrari LH Hexagon Wheel Nut - 102332 | $876.55 | Available, ships in 3-6 days | |
| 106160 | Ferrari LH Hub Octagonal Nut - 106160 | Price on request | Contact us for price and availability | |
| 700709 | Ferrari Michelen Tyre 215/70 Vr 15Xwx - 700709 | Price on request | Contact us for price and availability | |
| 102331 | Ferrari RH Hexagon Hub Nut 42Mm - 102331 | Price on request | Contact us for price and availability | |
| 700510 | Ferrari Road Wheel 7.5"x15" - 700510 | Price on request | Contact us for price and availability | |
| 101228 | Ferrari Wheel - 101228 | Price on request | Contact us for price and availability |
