Ferrari 512 BB (Carburetor) — Body Mouldings, Badges And Grill (diagram 101)

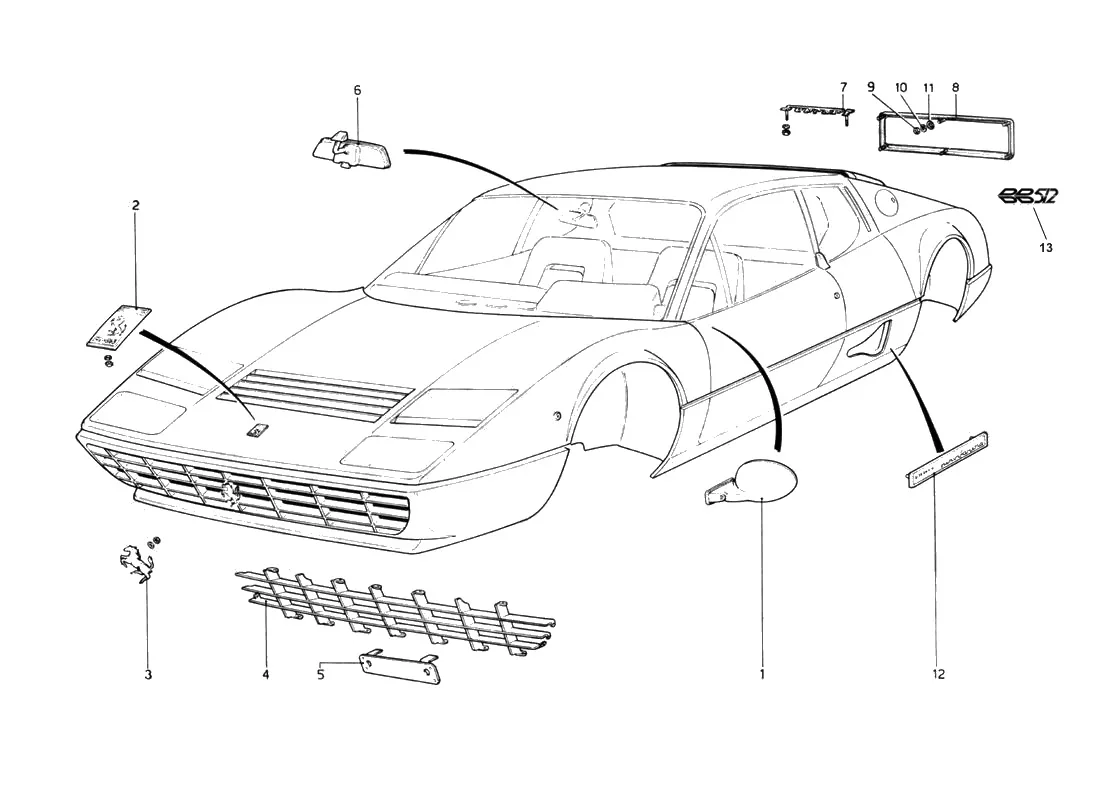

Exploded view of the body mouldings, badges and grill on the Ferrari 512 BB (Carburetor), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/101.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 60058500 | Ferrari LH External Door Mirror VITALONI - 60058500 | $395.27 | Available, ships in 3-6 days |
| 1 | 60122108 | Ferrari RH External Door Mirror VITALONI - 60122108 | $395.27 | Available, ships in 3-6 days |
| 2 | 60043007 | Ferrari Front Nose Badge Emblem - 60043007 | $367.70 | In stock |
| 2 | 30147805 | Ferrari Ferrari Nose Badge - 30147805 | Superseded | Order 60043007 instead |
| 3 | 50200203 | Ferrari Horse Motif/Emblem - 50200203 | $234.60 | In stock |
| 3 | 50086206 | Ferrari Prancing Horse Motif - 50086206 | Superseded | Order 50200203 instead |
| 4 | 50005404 | Ferrari Front Radiator Grille - 50005404 | Price on request | Contact us for price and availability |
| 4 | 50182906 | Ferrari Front Radiator Grille - 50182906 | Price on request | Contact us for price and availability |
| 5 | 20108205 | Ferrari Front Number Plate Carrier - 20108205 | $199.66 | Available, ships in 3-6 days |
| 6 | 60032703 | Ferrari Interior Rear View Mirror - 60032703 | $860.64 | Available, ships in 3-6 days |
| 6 | 60032703/A | Ferrari Interior Rear View Mirror - 60032703/A | $860.64 | Available, ships in 3-6 days |
| 7 | 61025000 | Ferrari Motif Badge - 61025000 | $96.80 | In stock |
| 7 | 30028500 | Ferrari Ferrari Motif 2 Pin - 30028500 | $132.94 | Available, ships in 3-6 days |
| 8 | 60096401 | Ferrari Plate Holder - 60096401 | $49.56 | Available, ships in 3-6 days |
| 9 | 15896414 | Ferrari Nut M5 x 4 - 15896414 | $0.13 | Available, ships in 3-6 days |
| 9 | 15896411 | Ferrari RH Thread Nut - 15896411 | Superseded | Order 15896414 instead |
| 10 | 149951 | Ferrari Shake Proof Washer - 149951 | $0.59 | Available, ships in 3-6 days |
| 10 | 10615370 | Ferrari Washer - 10615370 | Superseded | Order 149951 instead |
| 11 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 11 | 12638101 | Ferrari Washer White - 12638101 | Superseded | Order 12638124 instead |
| 12 | 20043105 | Ferrari Pininfarina Badge - 20043105 | $64.90 | In stock |
| 13 | 50371806 | Ferrari Rear Motif "512BB" - 50371806 | $169.03 | Available, ships in 3-6 days |
| 50047109 | Ferrari Interior Rear View Mirror - 50047109 | Price on request | Contact us for price and availability | |
| 15896401 | Ferrari Nut - 15896401 | Superseded | Order 15896414 instead | |
| 50207208 | Ferrari Nut - 50207208 | Superseded | Order 15896414 instead | |
| 60097003 | Ferrari Plate Holder - 60097003 | Superseded | Order 60096401 instead | |
| 60097002 | Ferrari Plate Holder Long - 60097002 | Superseded | Order 60096401 instead |
