Ferrari 512 BB (Carburetor) — Body Shell - Inner Elements Lower (diagram 103)

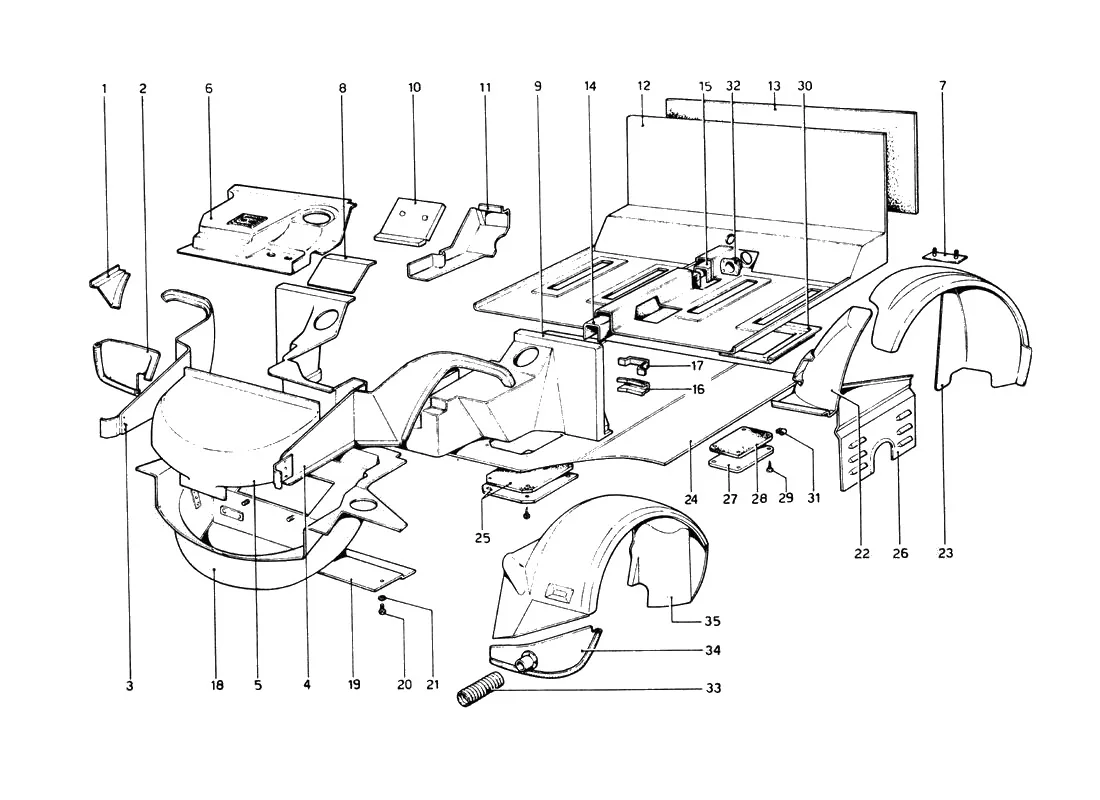

Exploded view of the body shell - inner elements lower on the Ferrari 512 BB (Carburetor), with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/103.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50156504 | Ferrari Panel - 50156504 | $25.84 | Available, ships in 3-6 days |
| 2 | 50087402 | Ferrari Panel - 50087402 | $205.45 | Available, ships in 3-6 days |
| 3 | 50317007 | Ferrari Shield - 50317007 | $555.24 | Available, ships in 3-6 days |
| 4 | 50317106 | Ferrari Shield - 50317106 | $555.24 | Available, ships in 3-6 days |
| 5 | 50317403 | Ferrari Top Spare Wheel Housing - 50317403 | Price on request | Contact us for price and availability |
| 6 | 50306109 | Ferrari Front Upper Shield LHD - 50306109 | $367.85 | Available, ships in 3-6 days |
| 6 | 50351004 | Ferrari Upper Shield RHD - 50351004 | Price on request | Contact us for price and availability |
| 7 | 50328103 | Ferrari Bracket - 50328103 | Price on request | Contact us for price and availability |
| 8 | 50073907 | Ferrari Lower Shield LHD - 50073907 | $134.93 | Available, ships in 3-6 days |
| 8 | 50167006 | Ferrari Lower Shield RHD - 50167006 | Price on request | Contact us for price and availability |
| 9 | 50306208 | Ferrari Front Floor LHD - 50306208 | Superseded | Order 60850500 instead |
| 9 | 60850500 | Ferrari Front Floor LHD - 60850500 | $1,630.99 | Contact us to order |
| 9 | 50343607 | Ferrari Front Floor RHD - 50343607 | $1,509.70 | Contact us to order |
| 10 | 50073709 | Ferrari Upper Shield LHD - 50073709 | $66.35 | Available, ships in 3-6 days |
| 10 | 50167303 | Ferrari Upper Shield RHD - 50167303 | Price on request | Contact us for price and availability |
| 11 | 50305804 | Ferrari Front Lining Insert LHD - 50305804 | $127.42 | Available, ships in 3-6 days |
| 11 | 50350909 | Ferrari Front Lining Insert RHD - 50350909 | Price on request | Contact us for price and availability |
| 12 | 50305705 | Ferrari Floor - 50305705 | Price on request | Contact us for price and availability |
| 13 | 50201508 | Ferrari Panel - 50201508 | Price on request | Contact us for price and availability |
| 14 | 50077007 | Ferrari Insulating - 50077007 | $96.93 | Available, ships in 3-6 days |
| 15 | 50202209 | Ferrari Insulating - 50202209 | $30.40 | Special order, ships in 7-14 days |
| 16 | 50079706 | Ferrari Support - 50079706 | Price on request | Contact us for price and availability |
| 17 | 50156603 | Ferrari Support LHD - 50156603 | Price on request | Contact us for price and availability |
| 17 | 50169002 | Ferrari Support RHD - 50169002 | Price on request | Contact us for price and availability |
| 18 | 50315803 | Ferrari Wheel Case - 50315803 | Price on request | Contact us for price and availability |
| 19 | 50131804 | Ferrari Panel - 50131804 | Price on request | Contact us for price and availability |
| 20 | 10902124 | Ferrari Screw - 10902124 | $0.29 | In stock |
| 20 | 20146601 | Ferrari Screw - 20146601 | Superseded | Order 10902124 instead |
| 21 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 22 | 50320803 | Ferrari RH Rear Wheel Arch Panel - Front Reinforcement - 50320803 | $635.20 | Available, ships in 3-6 days |
| 22 | 50320902 | Ferrari LH Rear Wheel Arch Panel (2 Piece Panel) - 50320902 | Price on request | Contact us for price and availability |
| 23 | 50304807 | Ferrari RH Rear Wheel Arch - 50304807 | $570.50 | Available, ships in 3-6 days |
| 23 | 50304906 | Ferrari LH Rear Wheel Arch - 50304906 | $589.51 | Available, ships in 3-6 days |
| 24 | 50315001 | Ferrari Floor Pan LHD - 50315001 | Price on request | Contact us for price and availability |
| 24 | 50350800 | Ferrari Floor Pan RHD - 50350800 | Price on request | Contact us for price and availability |
| 25 | 40259509 | Ferrari Plate - 40259509 | $56.45 | Available, ships in 3-6 days |
| 26 | 50001106 | Ferrari RH Engine Panel - 50001106 | Price on request | Contact us for price and availability |
| 26 | 50001205 | Ferrari LH Engine Panel - 50001205 | Price on request | Contact us for price and availability |
| 27 | 50202100 | Ferrari Plate - 50202100 | Price on request | Contact us for price and availability |
| 28 | 50202001 | Ferrari Gasket - 50202001 | Price on request | Contact us for price and availability |
| 29 | 17671106 | Ferrari Screw - 17671106 | Price on request | Contact us for price and availability |
| 30 | 50201904 | Ferrari Box - 50201904 | Superseded | Order 50360304 instead |
| 30 | 50360304 | Ferrari Box - 50360304 | $75.29 | Available, ships in 3-6 days |
| 31 | 20273603 | Ferrari Spring - 20273603 | $1.09 | Special order, ships in 7-14 days |
| 32 | 40081200 | Ferrari Bush - 40081200 | $10.58 | Available, ships in 3-6 days |
| 33 | 40304404 | Ferrari Air Tube - 40304404 | $193.72 | Available, ships in 3-6 days |
| 33 | 50021302 | Ferrari Air Tube - 50021302 | $192.59 | Available, ships in 3-6 days |
| 34 | 50305200 | Ferrari RH Front Panel - 50305200 | $383.31 | Available, ships in 3-6 days |
| 34 | 50305309 | Ferrari LH Front Panel - 50305309 | Price on request | Contact us for price and availability |
| 35 | 50002203 | Ferrari RH Front Wheel Arch - 50002203 | $2,209.06 | Special order, ships in 7-14 days |
| 35 | 50002302 | Ferrari LH Front Wheel Arch - 50002302 | $2,209.06 | Special order, ships in 7-14 days |
| 20273602 | Ferrari Spring - 20273602 | Price on request | Contact us for price and availability |
