Ferrari 512 BB (Carburetor) — Body Shell - Inner Elements Upper (diagram 104)

Exploded view of the body shell - inner elements upper on the Ferrari 512 BB (Carburetor), with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

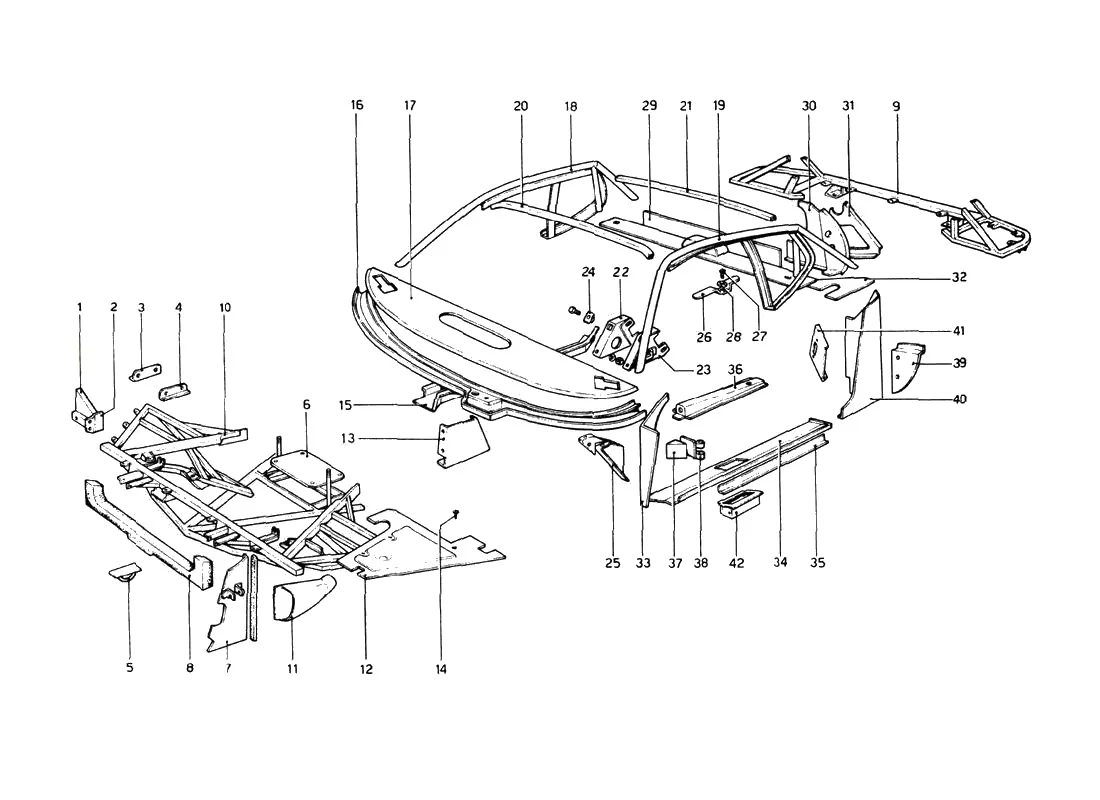

Ferrari 512 BB (Carburetor) Body Shell - Inner Elements Upper exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150080308Ferrari Bracket - 50080308$36.42Available, ships in 3-6 days
250080407Ferrari Bracket - 50080407Price on requestContact us for price and availability
350069806Ferrari RH External Bracket - 50069806$30.88Available, ships in 3-6 days
350069905Ferrari LH External Bracket - 50069905$30.88Available, ships in 3-6 days
450069707Ferrari LH Internal Bracket - 50069707$33.89Available, ships in 3-6 days
450069608Ferrari RH Internal Bracket - 50069608$33.89Available, ships in 3-6 days
550324904Ferrari Pull (Hook) - 50324904$280.22Special order, ships in 7-14 days
650004407Ferrari Battery Rack - 50004407Price on requestContact us for price and availability
750317502Ferrari RH Shield - 50317502Price on requestContact us for price and availability
750317601Ferrari LH Shield - 50317601$125.33Special order, ships in 7-14 days
820324802Ferrari Rubber - 20324802Price on requestContact us for price and availability
950303304Ferrari Rear Space Frame 512Bb - 50303304Price on requestContact us for price and availability
1050302009Ferrari Frame - 50302009Price on requestContact us for price and availability
1150330307Ferrari RH Air Intake - 50330307$391.46Available, ships in 3-6 days
1150330406Ferrari LH Air Intake - 50330406Price on requestContact us for price and availability
1250315100Ferrari RH Front Panel - 50315100Price on requestContact us for price and availability
1250315209Ferrari LH Front Panel - 50315209Price on requestContact us for price and availability
1350313907Ferrari Support LHD - 50313907Price on requestContact us for price and availability
1350327709Ferrari Support RHD - 50327709$30.55Available, ships in 3-6 days
1410902124Ferrari Screw - 10902124$0.29In stock
1420146601Ferrari Screw - 20146601SupersededOrder 10902124 instead
1550049303Ferrari Space Frame - 50049303Price on requestContact us for price and availability
1650010800Ferrari Screen Base LHD - 50010800Price on requestContact us for price and availability
1650167402Ferrari Screen Base RHD - 50167402$1,241.35Special order, ships in 7-14 days
1750077601Ferrari Rad Support LHD - 50077601Price on requestContact us for price and availability
1750168806Ferrari Rad Support RHD - 50168806$340.07Available, ships in 3-6 days
1850007509Ferrari RH Pillar - 50007509$704.61Special order, ships in 7-14 days
1950007608Ferrari Lh Pillar - 50007608$704.61Special order, ships in 7-14 days
2050009000Ferrari Crossmember - 50009000$90.83Available, ships in 3-6 days
2150009109Ferrari Crossmember - 50009109Price on requestContact us for price and availability
2250085901Ferrari RH Bracket - 50085901Price on requestContact us for price and availability
2350086008Ferrari Lh Bracket - 50086008Price on requestContact us for price and availability
24106425Ferrari Collapsable Spacer - 106425$22.02Available, ships in 3-6 days
2450086107Ferrari Collapsing Washer - 50086107SupersededOrder 106425 instead
2550059609Ferrari RH Bracket - 50059609Price on requestContact us for price and availability
2550059708Ferrari LH Bracket - 50059708Price on requestContact us for price and availability
2650051507Ferrari Plate - 50051507Price on requestContact us for price and availability
2710979411Ferrari Bolt M6x1 L10 - 10979411$0.73Available, ships in 3-6 days
2812601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2812605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
2950074608Ferrari Window Panel - 50074608$413.67Available, ships in 3-6 days
3050075001Ferrari RH Side Shield - 50075001$166.88Available, ships in 3-6 days
3050075100Ferrari LH Side Shield - 50075100Price on requestContact us for price and availability
3150074707Ferrari RH Reinforcement - 50074707$124.41Available, ships in 3-6 days
3150074806Ferrari LH Reinforcement - 50074806Price on requestContact us for price and availability
3250152800Ferrari Window Panel - 50152800Price on requestContact us for price and availability
3350313709Ferrari RH Lining Insert - 50313709Price on requestContact us for price and availability
3350313808Ferrari LH Lining Insert - 50313808Price on requestContact us for price and availability
3450352509Ferrari RH Sill Panel - 50352509$107.49Available, ships in 3-6 days
3450352608Ferrari LH Sill Panel - 50352608Price on requestContact us for price and availability
3550153105Ferrari Sill Reinforcement Strip - 50153105Price on requestContact us for price and availability
3650073501Ferrari Support Central - 50073501SupersededOrder 50360809 instead
3650360809Ferrari Support - 50360809$48.34Available, ships in 3-6 days
3650073600Ferrari Support Side - 50073600SupersededOrder 50360809 instead
3750009901Ferrari Bracket - 50009901$18.94Available, ships in 3-6 days
3850009703Ferrari Lower Hinge - 50009703Price on requestContact us for price and availability
3950325604Ferrari RH Shield - 50325604$59.76Available, ships in 3-6 days
3950325703Ferrari LH Shield - 50325703$56.91Special order, ships in 7-14 days
4050010107Ferrari RH Rear Side Plate - 50010107Price on requestContact us for price and availability
4050010206Ferrari LH Rear Side Plate - 50010206Price on requestContact us for price and availability
4150168608Ferrari Handle Support RHD - 50168608Price on requestContact us for price and availability
4150080209Ferrari Handle Support LHD - 50080209$32.47Available, ships in 3-6 days
4250352806Ferrari Ash Tray - 50352806SupersededOrder 50352707 instead
4250352707Ferrari RH Ashtray Case - 50352707$171.16Available, ships in 3-6 days
50004605Ferrari LH Front Panel - 50004605Price on requestContact us for price and availability
50004506Ferrari RH Front Panel - 50004506Price on requestContact us for price and availability
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 512 BB (Carburetor) diagrams
