Ferrari 512 BB (Carburetor) — Doors (diagram 108)

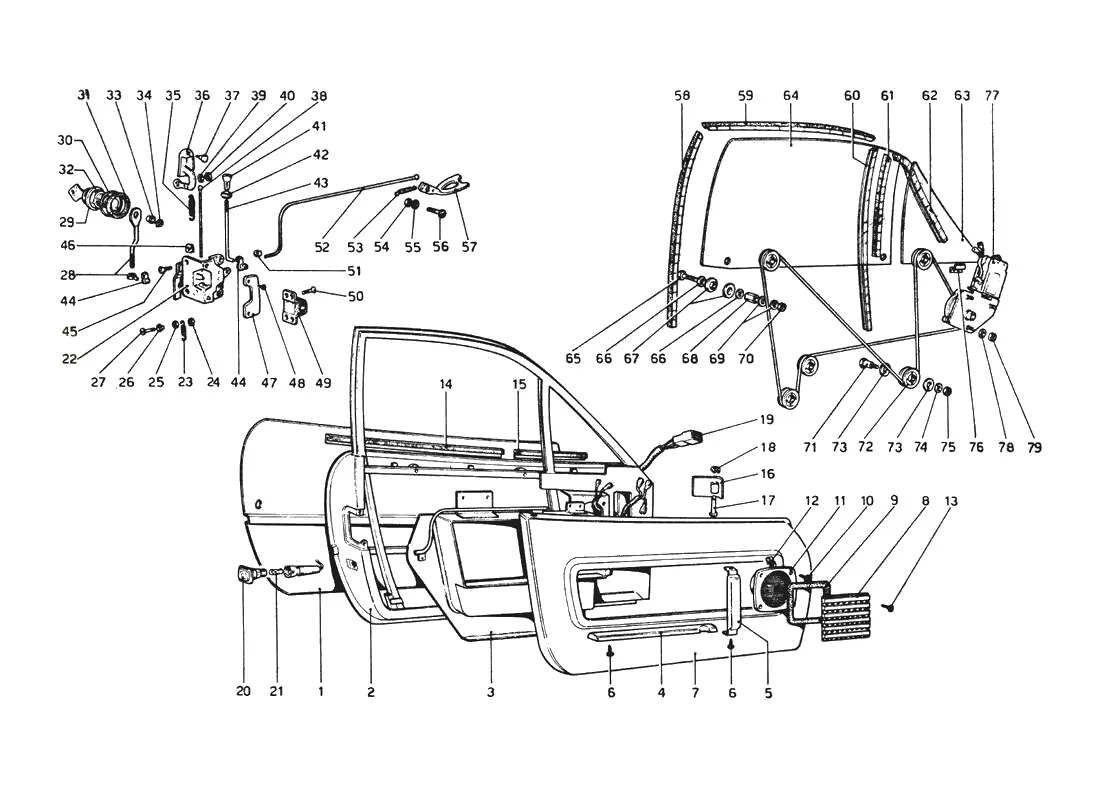

Exploded view of the doors on the Ferrari 512 BB (Carburetor), with 134 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Doors exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150030303Ferrari RH Door Skin - 50030303$1,730.06Contact us to order
150030402Ferrari LH Door Skin - 50030402$1,647.64Contact us to order
250313501Ferrari RH Door Frame - 50313501Price on requestContact us for price and availability
250313600Ferrari LH Door Frame - 50313600Price on requestContact us for price and availability
350141605Ferrari RH Inner Shield - 50141605$1,036.42Special order, ships in 7-14 days
350141704Ferrari LH Inner Shield - 50141704Price on requestContact us for price and availability
350215003Ferrari RH Lining - 50215003Price on requestContact us for price and availability
350215102Ferrari LH Lining - 50215102$272.36Special order, ships in 7-14 days
450141803Ferrari RH Armrest - 50141803Price on requestContact us for price and availability
450141902Ferrari LH Armrest - 50141902Price on requestContact us for price and availability
450142405Ferrari Armrest Lining - 50142405Price on requestContact us for price and availability
550142009Ferrari Handle - 50142009Price on requestContact us for price and availability
550142504Ferrari Handle Lining - 50142504Price on requestContact us for price and availability
617606705Ferrari Screw - 17606705Price on requestContact us for price and availability
750143502Ferrari RH Door Panel - 50143502Price on requestContact us for price and availability
750143908Ferrari RH Lining - 50143908$1,399.99Special order, ships in 7-14 days
750143601Ferrari LH Door Panel - 50143601Price on requestContact us for price and availability
750144005Ferrari LH Lining - 50144005$1,775.37Available, ships in 3-6 days
850074103Ferrari Grille - 50074103Price on requestContact us for price and availability
950142900Ferrari Speaker Gasket - 50142900Price on requestContact us for price and availability
1050206309Ferrari Screw - 50206309Price on requestContact us for price and availability
1150136803Ferrari Speaker - 50136803Price on requestContact us for price and availability
1250136902Ferrari Clip - 50136902Price on requestContact us for price and availability
1330065106Ferrari Screw - 30065106Price on requestContact us for price and availability
1450016708Ferrari Door Weatherstrip - 50016708Price on requestContact us for price and availability
1550138502Ferrari Gasket - 50138502$9.41Available, ships in 3-6 days
1650031608Ferrari Lower Mobile Hinge - 50031608$100.95Available, ships in 3-6 days
1740120404Ferrari Door Hinge Pin - 40120404$58.71Available, ships in 3-6 days
1720074100Ferrari Door Hinge Pin - 20074100$58.71Available, ships in 3-6 days
1811065775Ferrari Circlip - 11065775Price on requestContact us for price and availability
1950137108Ferrari RH Door Cable - 50137108$95.79Available, ships in 3-6 days
1950137207Ferrari LH Door Cable - 50137207$95.79Available, ships in 3-6 days
2050137009Ferrari 365/512 Door Light - 50137009$88.35In stock
21101525Ferrari Bulb 12V-3W - 101525$5.88Available, ships in 3-6 days
2120083309Ferrari Bulb 12V-4W - 20083309SupersededOrder 101525 instead
2250137801Ferrari RH Door Lock - 50137801Price on requestContact us for price and availability
2250137900Ferrari LH Door Lock - 50137900$440.14Available, ships in 3-6 days
2320036000Ferrari Spring - 20036000Price on requestContact us for price and availability
24102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2412574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
2515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
2620089504Ferrari Bush - 20089504Price on requestContact us for price and availability
2750137702Ferrari Screw - 50137702Price on requestContact us for price and availability
2850137603Ferrari Link - 50137603$42.82Available, ships in 3-6 days
2920035606Ferrari RH Exterior Door Lock - 20035606Price on requestContact us for price and availability
2920035705Ferrari LH Exterior Door Lock - 20035705Price on requestContact us for price and availability
3020181103Ferrari O-Ring - 20181103$6.67Available, ships in 3-6 days
3120035804Ferrari Spacer - 20035804Price on requestContact us for price and availability
3220063202Ferrari Nut - 20063202$14.97Available, ships in 3-6 days
3320037305Ferrari Door Lock Plastic Bush - 20037305$18.46Available, ships in 3-6 days
3411087676Ferrari Circlip - 11087676$0.27Available, ships in 3-6 days
3420035903Ferrari Door Lock Circlips - 20035903SupersededOrder 11087676 instead
3650032200Ferrari RH Exterior Door Handle - 50032200$162.34Special order, ships in 7-14 days
3650032309Ferrari LH Exterior Door Handle - 50032309Price on requestContact us for price and availability
3760892600Ferrari Rubber Bump Stop - 60892600$19.70Available, ships in 3-6 days
3720043808Ferrari Rubber Grommet GTB - 20043808SupersededOrder 60892600 instead
3820106506Ferrari Outer Door Cable - 20106506SupersededOrder 30014708 instead
3912601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
3912601270Ferrari Wavy Washer 6mm - 12601270SupersededOrder 12601274 instead
40169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
4012574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
4120170403Ferrari Door Lock Knob - 20170403$11.50Available, ships in 3-6 days
4120170403/AFerrari Door Lock Knob - 20170403/A$42.76Available, ships in 3-6 days
4230016208Ferrari Rubber Grommet Door Button - 30016208$56.85Available, ships in 3-6 days
4350061803Ferrari Lock Rod - 50061803$19.20Available, ships in 3-6 days
4414578180Ferrari 360/430 Door Rod Clip - 14578180$20.00In stock
4430016109Ferrari Door Clip - 30016109$37.14Available, ships in 3-6 days
4530214001Ferrari Screw - 30214001SupersededOrder 50206606 instead
4550206606Ferrari Countersunk Socket Screw - 50206606$2.36Available, ships in 3-6 days
4620037008Ferrari Door Lock Retaining Captive Clip - 20037008$5.19Available, ships in 3-6 days
46152-30-807-00Ferrari Captive Nut Clip - 152-30-807-00$6.50Available, ships in 3-6 days
4750143007Ferrari RH Cover - 50143007Price on requestContact us for price and availability
4750143106Ferrari LH Cover - 50143106Price on requestContact us for price and availability
4817677805Ferrari Screw - 17677805Price on requestContact us for price and availability
4920019105Ferrari Right Door Lock Striker - 20019105$175.98Contact us
4920019204Ferrari LH Lock Striker - 20019204$1,189.44Available, ships in 3-6 days
5120043709Ferrari Bush - 20043709$14.59Available, ships in 3-6 days
5220157202Ferrari Lock Linkage Cable - 20157202Price on requestContact us for price and availability
5330165203Ferrari Door Handle Spring - 30165203Price on requestContact us for price and availability
5410794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
5510615270Ferrari Washer - 10615270SupersededOrder 10615274 instead
5510615274Ferrari Washer - 10615274$0.19Available, ships in 3-6 days
5610375001Ferrari Screw - 10375001Price on requestContact us for price and availability
5720261400Ferrari Door Handle (Interior) - 20261400Price on requestContact us for price and availability
5850016500Ferrari Window Channel - 50016500$78.43Available, ships in 3-6 days
5950016609Ferrari Channel - 50016609Price on requestContact us for price and availability
6050138304Ferrari Channel - 50138304$33.83Available, ships in 3-6 days
60MC3475/1Ferrari Felt Window Channel *Per Metre* - MC3475/1$33.83Available, ships in 3-6 days
6150017003Ferrari Window Channel - 50017003$24.65Available, ships in 3-6 days
61MC3475/2Ferrari Flocked Window Channel Per Metre - MC3475/2$24.51Available, ships in 3-6 days
6250138403Ferrari Channel 20in - 50138403$33.83Available, ships in 3-6 days
6350016807Ferrari RH Front Qtr Light Glass - 50016807$279.51Contact us to order
6350016906Ferrari LH Front Qtr Light Glass - 50016906Price on requestContact us to order
6450016302Ferrari RH Door Drop Glass - 50016302$1,023.17Contact us to order
6450016401Ferrari LH Door Drop Glass - 50016401Price on requestContact us to order
6510903034Ferrari Screw 6x35 - 10903034$0.82Available, ships in 3-6 days
6510902811Ferrari Bolt - 10902811$0.82Available, ships in 3-6 days
6612640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
6612640601Ferrari Plain Washer 6mm - 12640601SupersededOrder 12640624 instead
6750086909Ferrari Bush - 50086909$4.62Available, ships in 3-6 days
6850138205Ferrari Spacer - 50138205$15.28Available, ships in 3-6 days
6912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
7160078805Ferrari Upper Pin - 60078805Price on requestContact us for price and availability
7260056306Ferrari Pulley GTB - 60056306Price on requestContact us for price and availability
7412605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
7650138601Ferrari Clip - 50138601Price on requestContact us for price and availability
7750030907Ferrari RH Window Motor - 50030907Price on requestContact us for price and availability
7750031004Ferrari LH Window Motor - 50031004Price on requestContact us for price and availability
78149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
7810615370Ferrari Washer - 10615370SupersededOrder 149951 instead
7915896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
7915896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
101528Ferrari Bulb 12v 4w - 101528SupersededOrder 101525 instead
11065774Ferrari Circlip - 11065774$5.72Available, ships in 3-6 days
11087675Ferrari Circlip - 11087675SupersededOrder 11087676 instead
30016107Ferrari Clip - 30016107Price on requestContact us for price and availability
60813500Ferrari Door Clip - 60813500Price on requestContact us for price and availability
30016505Ferrari Door Handle Spring - 30016505Price on requestContact us for price and availability
63026200Ferrari Door Hinge Pin - 63026200$87.30In stock
30016307Ferrari Handle - 30016307Price on requestContact us for price and availability
20037701Ferrari Int Door Handle - 20037701Price on requestContact us for price and availability
401329Ferrari Lamp - 401329SupersededOrder 101525 instead
50082908Ferrari LH Door Frame - 50082908Price on requestContact us for price and availability
60304904Ferrari LH Plate - 60304904Price on requestContact us for price and availability
152-30-213-00Ferrari LH Striker Plate - 152-30-213-00Price on requestContact us for price and availability
50371608Ferrari Lock Set - 50371608$1,391.50Special order, ships in 7-14 days
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
50082809Ferrari RH Door Frame - 50082809Price on requestContact us for price and availability
60304805Ferrari RH Plate - 60304805$31.22Available, ships in 3-6 days
152-30-212-00Ferrari RH Striker Plate - 152-30-212-00Price on requestContact us for price and availability
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 512 BB (Carburetor) diagrams
