Ferrari 512 BB (Carburetor) — Fixed Glass (diagram 109)

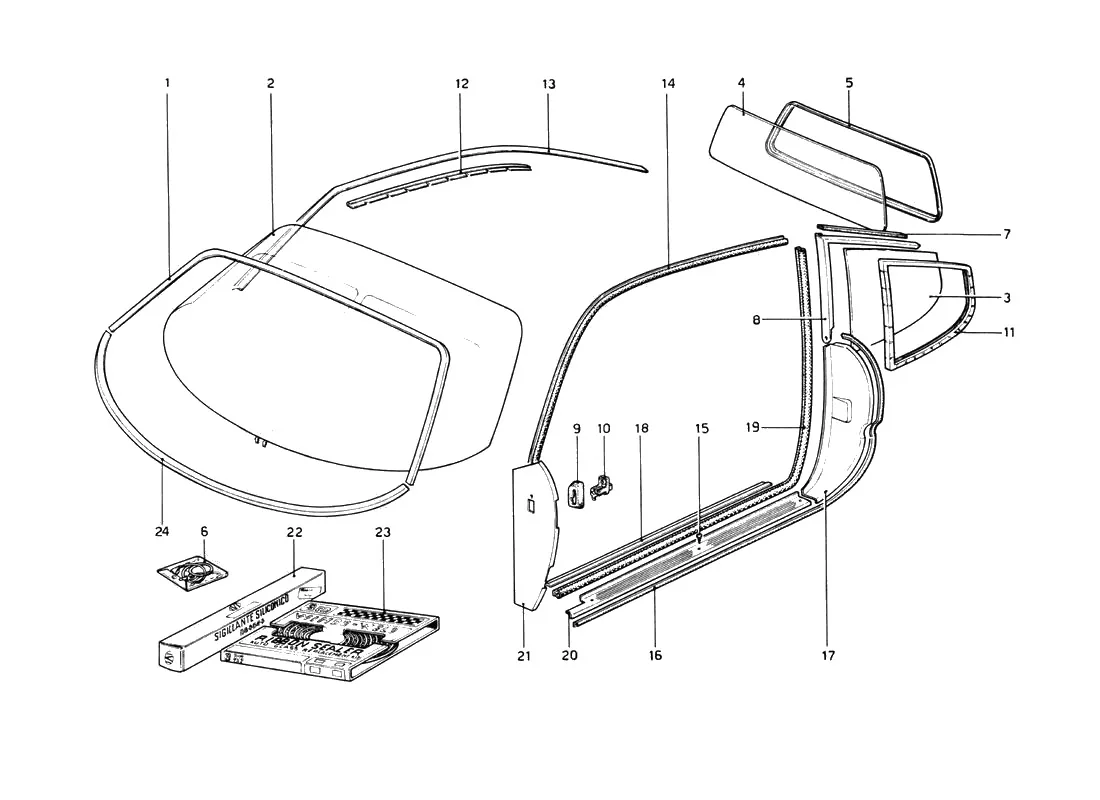

Exploded view of the fixed glass on the Ferrari 512 BB (Carburetor), with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/109.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50015403 | Ferrari Windscreen Surround - 50015403 | Superseded | Order 50369305 instead |
| 1 | 50369305 | Ferrari Windscreen Surround - 50369305 | $1,842.85 | Available, ships in 3-6 days |
| 2 | 50015304 | Ferrari Windscreen c/w aerial - 50015304 | $2,951.01 | Contact us to order |
| 2 | 50015304/A | Ferrari Front Windscreen Clear/Blue Toptint (No Aerial) - 50015304/A | $2,951.01 | Available, ships in 3-6 days |
| 3 | 50015502 | Ferrari RH Rear Qtr Light Glass - 50015502 | Price on request | Contact us to order |
| 3 | 50015601 | Ferrari LH Rear Qtr Light Assy - 50015601 | Price on request | Contact us for price and availability |
| 4 | 50016104 | Ferrari Rear Screen - 50016104 | $1,360.18 | Contact us to order |
| 4 | 50016104/D | Ferrari Rear Screen - 50016104/D | $1,360.18 | Contact us to order |
| 5 | 50016203 | Ferrari Rear Screen Surround - 50016203 | Price on request | Contact us for price and availability |
| 6 | 50127307 | Ferrari Aerial Cable - 50127307 | Price on request | Contact us for price and availability |
| 7 | 50015700 | Ferrari Gasket - 50015700 | Price on request | Contact us for price and availability |
| 8 | 60941400 | Ferrari RH Frame - 60941400 | Price on request | Contact us for price and availability |
| 8 | 60941500 | Ferrari LH Frame - 60941500 | Price on request | Contact us for price and availability |
| 9 | 50313303 | Ferrari Gasket - 50313303 | $1.30 | Available, ships in 3-6 days |
| 10 | 50313204 | Ferrari Courtesy Switch - 50313204 | $16.22 | Available, ships in 3-6 days |
| 11 | 50369206 | Ferrari Qtr Light Rubber Rear - 50369206 | Price on request | Contact us for price and availability |
| 12 | 50045004 | Ferrari LH Moulding - 50045004 | Price on request | Contact us for price and availability |
| 12 | 50044908 | Ferrari RH Moulding - 50044908 | Price on request | Contact us for price and availability |
| 13 | 50045103 | Ferrari RH Moulding - 50045103 | Price on request | Contact us for price and availability |
| 13 | 50045202 | Ferrari LH Moulding - 50045202 | Price on request | Contact us for price and availability |
| 14 | 50044601 | Ferrari Door Rubber - 50044601 | $24.46 | Available, ships in 3-6 days |
| 14 | MC3476/1 | Ferrari Door Rubber *Per Metre* - MC3476/1 | $24.46 | Available, ships in 3-6 days |
| 15 | 17677805 | Ferrari Screw - 17677805 | Price on request | Contact us for price and availability |
| 16 | 20041505 | Ferrari Door Rubber Outer Per Metre - 20041505 | $78.33 | Available, ships in 3-6 days |
| 16 | 50044809 | Ferrari Door Outer Rubber 171cm - 50044809 | Superseded | Order 20041505 instead |
| 17 | 50045707 | Ferrari RH Rear Panel - 50045707 | $352.99 | Special order, ships in 7-14 days |
| 17 | 50045806 | Ferrari LH Rear Panel - 50045806 | Price on request | Contact us for price and availability |
| 18 | 50097806 | Ferrari Sill Plate - 50097806 | Superseded | Order 50097807 instead |
| 18 | 50097807 | Ferrari Sill Plate - 50097807 | $89.14 | Available, ships in 3-6 days |
| 20 | 50045301 | Ferrari RH Kick Plate - 50045301 | Price on request | Contact us for price and availability |
| 20 | 50045400 | Ferrari LH Kick Plate - 50045400 | $71.22 | Available, ships in 3-6 days |
| 21 | 50313006 | Ferrari RH Front Door Shield - 50313006 | Price on request | Contact us for price and availability |
| 21 | 50313105 | Ferrari LH Front Door Shield - 50313105 | Price on request | Contact us for price and availability |
| 23 | 60089505 | Ferrari Sealing Cord - 60089505 | Superseded | Order 360508611 instead |
| 24 | 50332709 | Ferrari Moulding - 50332709 | Price on request | Contact us for price and availability |
| 50017000 | Ferrari LH Rim - 50017000 | Price on request | Contact us for price and availability | |
| 50016900 | Ferrari RH Rim - 50016900 | Price on request | Contact us for price and availability | |
| 20312401 | Ferrari Sealing Cord - 20312401 | Superseded | Order 360508611 instead | |
| 360508611 | Ferrari Window Weld 3M Tape Per Metre - 360508611 | $61.17 | Available, ships in 3-6 days |
