Ferrari 512 BB (Carburetor) — Interior Trim, Accessories And Seats (diagram 110)

Exploded view of the interior trim, accessories and seats on the Ferrari 512 BB (Carburetor), with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

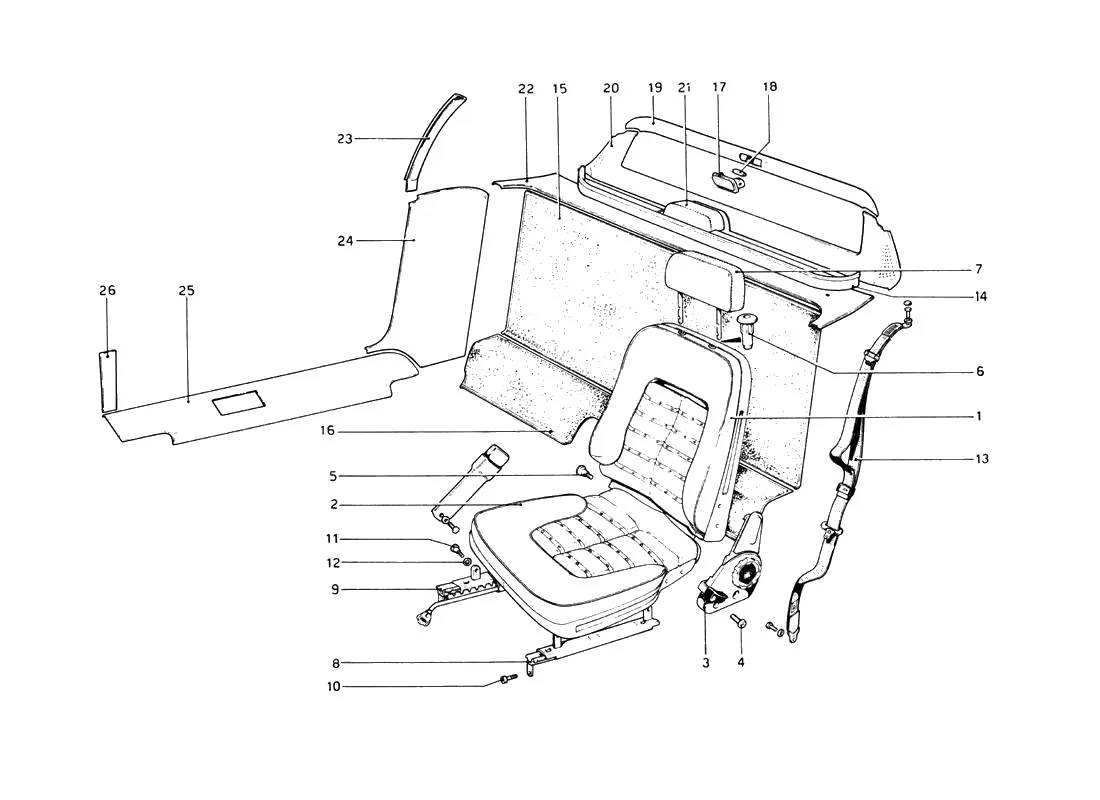

Ferrari 512 BB (Carburetor) Interior Trim, Accessories And Seats exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150193606Ferrari RH Seat Back - 50193606Price on requestContact us to order
150193705Ferrari LH Seat Back - 50193705Price on requestContact us to order
150194000Ferrari Seat Back Cover - 50194000Price on requestContact us for price and availability
250193804Ferrari RH Seat Cushion - 50193804Price on requestContact us for price and availability
250193903Ferrari LH Seat Cushion - 50193903Price on requestContact us for price and availability
250194109Ferrari Cushion Cover - 50194109$1,628.88Special order, ships in 7-14 days
340124604Ferrari RH Seat Regulator - 40124604$848.91Available, ships in 3-6 days
340124703Ferrari LH Seat Regulator - 40124703$808.47Available, ships in 3-6 days
414306524Ferrari Screw M8 x 30mm - 14306524$0.65Available, ships in 3-6 days
414306426Ferrari Seat Retaining Bolt - 14306426SupersededOrder 14306524 instead
520232203Ferrari Screw - 20232203$25.82Available, ships in 3-6 days
620058905Ferrari Headrest Plastic Insert - 20058905$106.39Available, ships in 3-6 days
750178706Ferrari Headrest - 50178706$667.61Special order, ships in 7-14 days
750198208Ferrari Headrest Cover - 50198208Price on requestContact us for price and availability
850132802Ferrari RH Runner - 50132802$208.44Special order, ships in 7-14 days
850132901Ferrari LH Runner - 50132901Price on requestContact us for price and availability
950133008Ferrari RH Seat Runner - 50133008Price on requestContact us for price and availability
950133107Ferrari LH Seat Runner - 50133107Price on requestContact us for price and availability
950335108Ferrari RH Seat Runner - 50335108$316.31Available, ships in 3-6 days
950335207Ferrari LH Seat Guide Runner - 50335207$301.24Available, ships in 3-6 days
1014306326Ferrari Screw - 14306326Price on requestContact us for price and availability
1230166201Ferrari Washer - 30166201Price on requestContact us for price and availability
1360121308Ferrari Seat Belt Set - 60121308Price on requestContact us for price and availability
1360121407Ferrari Seat Belt Set - 60121407Price on requestContact us for price and availability
1450345602Ferrari Rear Shelf - 50345602$1,341.82Special order, ships in 7-14 days
1450346204Ferrari Floor Lining - 50346204$467.76Available, ships in 3-6 days
1450346105Ferrari Wall Lining - 50346105$467.76Available, ships in 3-6 days
1550204908Ferrari Seatback Mat - 50204908Price on requestContact us for price and availability
1650205400Ferrari Bottom Mat Check Colour Nos - 50205400Price on requestContact us for price and availability
1720144309Ferrari Interior Lamp - 20144309$379.38Available, ships in 3-6 days
1850100205Ferrari Festoon Bulb 12v 10w - 50100205$3.26Available, ships in 3-6 days
1950120104Ferrari Upper Rear Moulding - 50120104Price on requestContact us for price and availability
1950121607Ferrari Lining Window Panel - 50121607Price on requestContact us for price and availability
2050121508Ferrari Lining Window Panel - 50121508$352.46Available, ships in 3-6 days
2050120409Ferrari Trim - 50120409Price on requestContact us for price and availability
2150120500Ferrari Rear Window Box - 50120500$342.41Special order, ships in 7-14 days
2150121706Ferrari Lining - 50121706$89.89Special order, ships in 7-14 days
2250120708Ferrari Parcel Shelf - 50120708$933.30Special order, ships in 7-14 days
2250121805Ferrari Lining - 50121805$592.25Special order, ships in 7-14 days
2350122803Ferrari RH Upright Framework - 50122803Price on requestContact us for price and availability
2350123603Ferrari RH Upright Lining - 50123603$185.65Special order, ships in 7-14 days
2350122902Ferrari LH Upright Framework - 50122902Price on requestContact us for price and availability
2350123702Ferrari LH Upright Lining - 50123702$185.65Special order, ships in 7-14 days
2450344308Ferrari RH Rear Side Panel LHD - 50344308Price on requestContact us for price and availability
2450344506Ferrari RH Lining LHD - 50344506$219.90Available, ships in 3-6 days
2450345008Ferrari RH Rear Side Panel RHD - 50345008$773.16Available, ships in 3-6 days
2450345404Ferrari RH Lining RHD - 50345404$387.34Special order, ships in 7-14 days
2450344407Ferrari LH Rear Side Panel LHD - 50344407Price on requestContact us for price and availability
2450344605Ferrari LH Lining LHD - 50344605$242.69Available, ships in 3-6 days
2450345107Ferrari LH Rear Side Panel RHD - 50345107$773.16Available, ships in 3-6 days
2450345503Ferrari LH Lining RHD - 50345503$387.34Special order, ships in 7-14 days
2550119502Ferrari LH Sill Lining - 50119502$736.34Special order, ships in 7-14 days
2550119403Ferrari RH Sill Lining - 50119403$773.16Available, ships in 3-6 days
2550118702Ferrari LH Sill - 50118702$799.56Available, ships in 3-6 days
2550118603Ferrari RH Sill - 50118603$790.53Special order, ships in 7-14 days
2650178508Ferrari LH Lower Frame Lining RHD - 50178508$124.41Available, ships in 3-6 days
2650126309Ferrari RH Lower Frame Lining LHD - 50126309Price on requestContact us for price and availability
2650178409Ferrari RH Lower Frame Lining RHD - 50178409$124.41Available, ships in 3-6 days
2650124809Ferrari LH Lower Frame LHD - 50124809Price on requestContact us for price and availability
2650177609Ferrari RH Lower Frame RHD - 50177609Price on requestContact us for price and availability
2650124700Ferrari RH Lower Frame LHD - 50124700Price on requestContact us for price and availability
2650126408Ferrari LH Lower Frame Lining LHD - 50126408Price on requestContact us for price and availability
2650177708Ferrari LH Moulding RHD - 50177708Price on requestContact us for price and availability
50177707Ferrari LH Lower Frame RHD - 50177707Price on requestContact us for price and availability
50120203Ferrari Moulding - 50120203Price on requestContact us for price and availability
14306521Ferrari Screw - 14306521SupersededOrder 14306524 instead
1301662Ferrari Washer - 1301662Price on requestContact us for price and availability
-50195105Ferrari LH Seat Assy - 50195105Price on requestContact us to order
-50195006Ferrari RH Seat Assy - 50195006Price on requestContact us to order

All 512 BB (Carburetor) diagrams
