Ferrari 512 BB (Carburetor) — Tunnel And Roof (diagram 111)

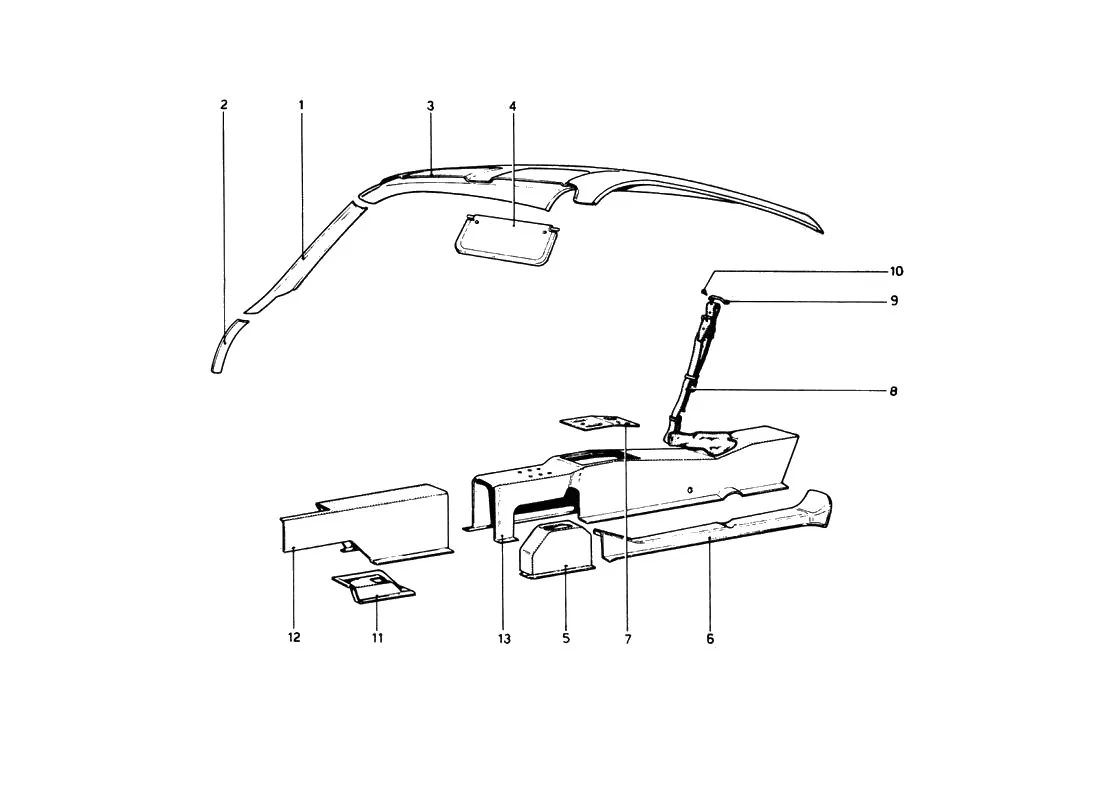

Exploded view of the tunnel and roof on the Ferrari 512 BB (Carburetor), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/111.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50126101 | Ferrari RH Frame Lining LHD - 50126101 | $255.74 | Available, ships in 3-6 days |
| 1 | 50126200 | Ferrari LH Frame Lining LHD - 50126200 | $226.03 | Special order, ships in 7-14 days |
| 1 | 50323401 | Ferrari RH Frame - 50323401 | $442.83 | Available, ships in 3-6 days |
| 1 | 50323500 | Ferrari LH Frame - 50323500 | $442.83 | Available, ships in 3-6 days |
| 2 | 50178508 | Ferrari LH Lower Frame Lining RHD - 50178508 | $124.41 | Available, ships in 3-6 days |
| 2 | 50126309 | Ferrari RH Lower Frame Lining LHD - 50126309 | Price on request | Contact us for price and availability |
| 2 | 50178409 | Ferrari RH Lower Frame Lining RHD - 50178409 | $124.41 | Available, ships in 3-6 days |
| 2 | 50124809 | Ferrari LH Lower Frame LHD - 50124809 | Price on request | Contact us for price and availability |
| 2 | 50177707 | Ferrari LH Lower Frame RHD - 50177707 | Price on request | Contact us for price and availability |
| 2 | 50177609 | Ferrari RH Lower Frame RHD - 50177609 | Price on request | Contact us for price and availability |
| 2 | 50124700 | Ferrari RH Lower Frame LHD - 50124700 | Price on request | Contact us for price and availability |
| 2 | 50126408 | Ferrari LH Lower Frame Lining LHD - 50126408 | Price on request | Contact us for price and availability |
| 3 | 50314806 | Ferrari Roof Lining - 50314806 | $1,487.24 | Contact us to order |
| 4 | 60167301 | Ferrari Driver Sun Visor RHD GTB - 60167301 | $318.21 | Available, ships in 3-6 days |
| 4 | 60234101 | Ferrari Passenger Sun Visor RHD GTB - 60234101 | $280.68 | Available, ships in 3-6 days |
| 5 | 50069004 | Ferrari Turret Protection Lining - 50069004 | $337.33 | Available, ships in 3-6 days |
| 5 | 50311604 | Ferrari Turret Protection - 50311604 | $716.28 | Available, ships in 3-6 days |
| 6 | 50202902 | Ferrari Lever Protection Lining - 50202902 | $246.98 | Special order, ships in 7-14 days |
| 6 | 50312800 | Ferrari Lever Protection - 50312800 | Price on request | Contact us for price and availability |
| 7 | 50312602 | Ferrari Plate - 50312602 | $217.91 | Special order, ships in 7-14 days |
| 7 | 50312206 | Ferrari Lining - 50312206 | $45.85 | Available, ships in 3-6 days |
| 8 | 50081108 | Ferrari Leather Belt - 50081108 | Price on request | Contact us for price and availability |
| 9 | 30029904 | Ferrari Clip - 30029904 | Price on request | Contact us for price and availability |
| 10 | 50206002 | Ferrari Screw - 50206002 | Price on request | Contact us for price and availability |
| 11 | 50110709 | Ferrari Frame LHD - 50110709 | $349.81 | Available, ships in 3-6 days |
| 11 | 50110907 | Ferrari Lining LHD - 50110907 | $131.14 | Special order, ships in 7-14 days |
| 12 | 50068501 | Ferrari Front Tunnel Lining LHD - 50068501 | $350.33 | Special order, ships in 7-14 days |
| 12 | 50179001 | Ferrari Front Tunnel Lining RHD - 50179001 | $442.83 | Available, ships in 3-6 days |
| 12 | 50311505 | Ferrari Front Tunnel LHD - 50311505 | Superseded | Order 50353705 instead |
| 12 | 50353705 | Ferrari Front Tunnel - 50353705 | $469.18 | Available, ships in 3-6 days |
| 12 | 50343805 | Ferrari Front Tunnel RHD - 50343805 | Price on request | Contact us for price and availability |
| 13 | 50202704 | Ferrari Centre Tunnel Lining - 50202704 | $1,099.90 | Special order, ships in 7-14 days |
| 13 | 50312008 | Ferrari Centre Tunnel - 50312008 | Price on request | Contact us for price and availability |
| 61569200 | Ferrari Belt Bracket - 61569200 | Price on request | Contact us for price and availability | |
| 50177708 | Ferrari LH Moulding RHD - 50177708 | Price on request | Contact us for price and availability | |
| 1502060 | Ferrari Screw - 1502060 | Price on request | Contact us for price and availability | |
| 60036605 | Ferrari Sun Visor - 60036605 | $295.11 | Available, ships in 3-6 days |
