Ferrari 512 BB (Carburetor) — Instrument Panel (diagram 112)

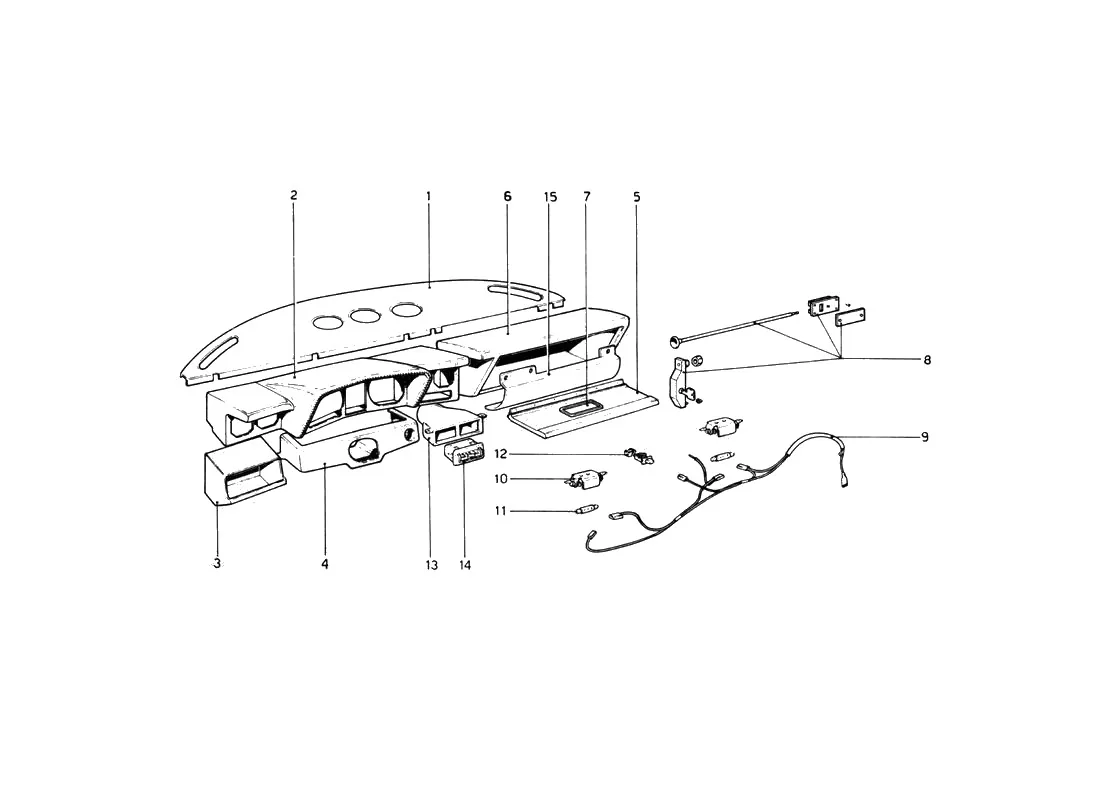

Exploded view of the instrument panel on the Ferrari 512 BB (Carburetor), with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/112.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50128206 | Ferrari Front Shield LHD - 50128206 | Price on request | Contact us for price and availability |
| 1 | 50162502 | Ferrari Front Shield RHD - 50162502 | Price on request | Contact us for price and availability |
| 1 | 50128107 | Ferrari Lining LHD - 50128107 | $682.14 | Special order, ships in 7-14 days |
| 1 | 50162908 | Ferrari Lining RHD - 50162908 | $701.02 | Available, ships in 3-6 days |
| 2 | 50128305 | Ferrari Lining LHD - 50128305 | $1,661.73 | Special order, ships in 7-14 days |
| 2 | 50162403 | Ferrari Lining RHD - 50162403 | Price on request | Contact us for price and availability |
| 2 | 50318708 | Ferrari Dashboard LHD - 50318708 | Superseded | Order 60531400 instead |
| 2 | 60531400 | Ferrari Dashboard - 60531400 | $2,361.06 | Contact us to order |
| 2 | 50348903 | Ferrari Dashboard RHD - 50348903 | $2,766.06 | Contact us to order |
| 3 | 50131309 | Ferrari Box Lining LHD - 50131309 | Price on request | Contact us for price and availability |
| 3 | 50163807 | Ferrari Box Lining RHD - 50163807 | Price on request | Contact us for price and availability |
| 3 | 50130905 | Ferrari Glove Box LHD - 50130905 | $602.87 | Special order, ships in 7-14 days |
| 3 | 50349109 | Ferrari Glove Box RHD - 50349109 | $756.20 | Special order, ships in 7-14 days |
| 4 | 50131101 | Ferrari Column Lining LHD - 50131101 | Price on request | Contact us for price and availability |
| 4 | 50163708 | Ferrari Column Lining RHD - 50163708 | Price on request | Contact us for price and availability |
| 4 | 50320407 | Ferrari Column Cover LHD - 50320407 | $740.29 | Special order, ships in 7-14 days |
| 4 | 50349505 | Ferrari Column Cover RHD - 50349505 | $846.74 | Available, ships in 3-6 days |
| 5 | 50129907 | Ferrari Glovebox Door - 50129907 | Price on request | Contact us to order |
| 5 | 50129204 | Ferrari Glovebox Door Internal Lining - 50129204 | $253.29 | Special order, ships in 7-14 days |
| 5 | 50129303 | Ferrari Glovebox Door External Lining - 50129303 | $427.03 | Special order, ships in 7-14 days |
| 6 | 50127802 | Ferrari Glove Box Lining LHD - 50127802 | Price on request | Contact us for price and availability |
| 6 | 50162304 | Ferrari Glove Box Lining RHD - 50162304 | $1,097.98 | Available, ships in 3-6 days |
| 6 | 50322501 | Ferrari Glove Box LHD - 50322501 | Price on request | Contact us for price and availability |
| 6 | 50349000 | Ferrari Glove Box RHD - 50349000 | $1,857.07 | Special order, ships in 7-14 days |
| 7 | 20131108 | Ferrari Mirror - 20131108 | Price on request | Contact us for price and availability |
| 8 | 50132703 | Ferrari Glove Box Lock RHD - 50132703 | Price on request | Contact us for price and availability |
| 8 | 50093202 | Ferrari Glove Box Lock LHD - 50093202 | Price on request | Contact us for price and availability |
| 9 | 50127604 | Ferrari Cable - 50127604 | $80.62 | Available, ships in 3-6 days |
| 10 | 20068300 | Ferrari Dome Lamp - 20068300 | $414.13 | Available, ships in 3-6 days |
| 11 | 20083101 | Ferrari Festoon Bulb - 20083101 | Price on request | Contact us for price and availability |
| 12 | 50116409 | Ferrari Switch - 50116409 | Price on request | Contact us for price and availability |
| 13 | 50335603 | Ferrari Conveyor LHD - 50335603 | Price on request | Contact us for price and availability |
| 13 | 50342500 | Ferrari Conveyor RHD - 50342500 | $399.26 | Special order, ships in 7-14 days |
| 14 | 60124302 | Ferrari Inlet Vent - 60124302 | Price on request | Contact us for price and availability |
| 15 | 50318203 | Ferrari Glove Box Shield LHD - 50318203 | Price on request | Contact us for price and availability |
| 15 | 50350008 | Ferrari Glove Box Shield RHD - 50350008 | $118.20 | Special order, ships in 7-14 days |
| 50214800 | Ferrari Dash Panel Complete LHD - 50214800 | Price on request | Contact us to order | |
| 50214900 | Ferrari Dash Panel Complete RHD - 50214900 | Price on request | Contact us to order | |
| 20045407 | Ferrari Glovebox Lock - 20045407 | Price on request | Contact us for price and availability | |
| - | 50214808 | Ferrari Dash Panel LHD - 50214808 | Price on request | Contact us to order |
| - | 50214907 | Ferrari Dash Panel RHD - 50214907 | Price on request | Contact us to order |
