Ferrari 512 BB (Carburetor) — Carpeting (diagram 113)

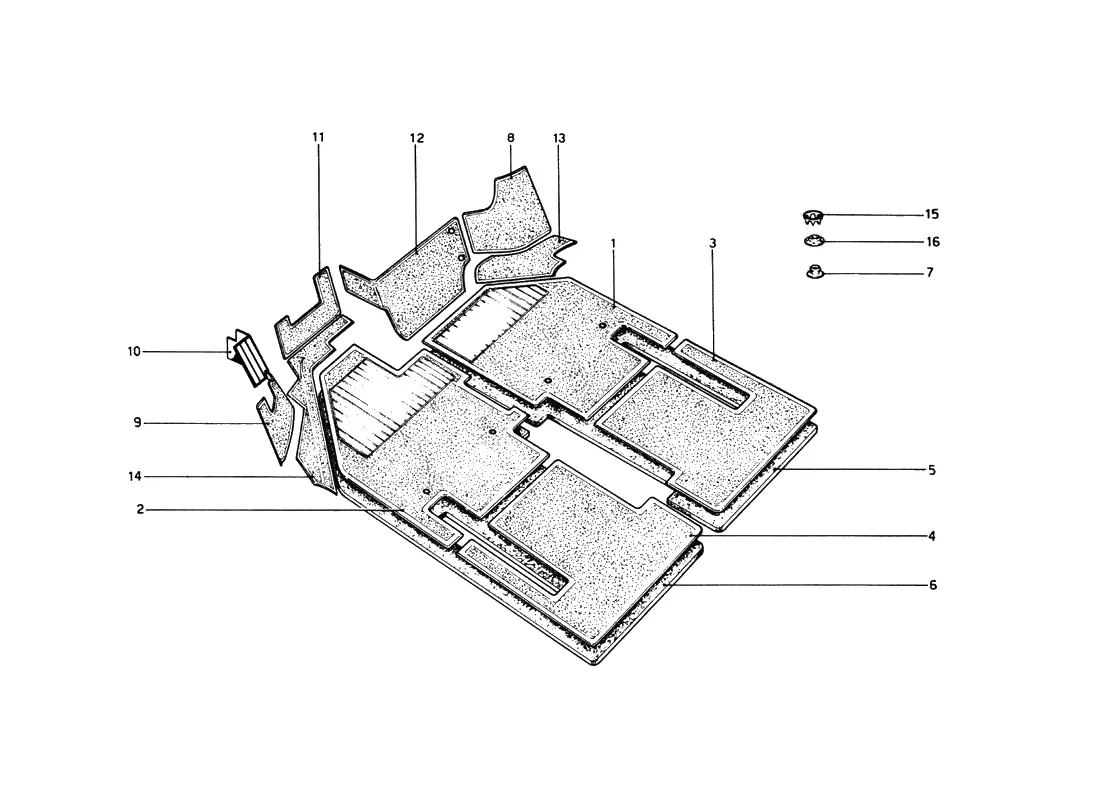

Exploded view of the carpeting on the Ferrari 512 BB (Carburetor), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/113.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50064302 | Ferrari RH Front Carpet LHD - 50064302 | Price on request | Contact us for price and availability |
| 1 | 50175405 | Ferrari RH Front Carpet RHD - 50175405 | $248.28 | Special order, ships in 7-14 days |
| 2 | 50064401 | Ferrari LH Front Carpet LHD - 50064401 | Price on request | Contact us for price and availability |
| 2 | 50175504 | Ferrari LH Front Carpet RHD - 50175504 | $334.48 | Special order, ships in 7-14 days |
| 3 | 50004407 | Ferrari Battery Rack - 50004407 | Price on request | Contact us for price and availability |
| 4 | 50004506 | Ferrari RH Front Panel - 50004506 | Price on request | Contact us for price and availability |
| 5 | 50335702 | Ferrari Under Carpet - 50335702 | Price on request | Contact us for price and availability |
| 6 | 50335801 | Ferrari Under Carpet - 50335801 | Price on request | Contact us for price and availability |
| 7 | 50111301 | Ferrari Popper Button clip - 50111301 | $4.68 | Available, ships in 3-6 days |
| 8 | 50172303 | Ferrari RH Wheelbox Carpet RHD - 50172303 | Price on request | Contact us for price and availability |
| 8 | 50340603 | Ferrari RH Wheelbox Carpet LHD - 50340603 | Price on request | Contact us for price and availability |
| 9 | 50340702 | Ferrari LH Wheelbox Carpet LHD - 50340702 | Price on request | Contact us for price and availability |
| 9 | 50346501 | Ferrari LH Wheelbox Carpet RHD - 50346501 | Price on request | Contact us for price and availability |
| 10 | 50040500 | Ferrari Rubber Footrest LHD - 50040500 | Price on request | Contact us for price and availability |
| 11 | 50341205 | Ferrari Under Pedal Carpet LHD - 50341205 | Price on request | Contact us for price and availability |
| 11 | 50346709 | Ferrari Under Pedal Carpet RHD - 50346709 | Price on request | Contact us for price and availability |
| 12 | 50341106 | Ferrari Carpet LHD - 50341106 | Price on request | Contact us for price and availability |
| 12 | 50346600 | Ferrari Carpet RHD - 50346600 | Price on request | Contact us for price and availability |
| 13 | 50173707 | Ferrari RH Side Carpet RHD - 50173707 | $172.15 | Available, ships in 3-6 days |
| 13 | 50341007 | Ferrari RH Side Carpet LHD - 50341007 | Price on request | Contact us for price and availability |
| 14 | 50173806 | Ferrari LH Side Carpet RHD - 50173806 | Price on request | Contact us for price and availability |
| 14 | 50341304 | Ferrari LH Side Carpet LHD - 50341304 | Price on request | Contact us for price and availability |
| 15 | 50111400 | Ferrari Clip - 50111400 | Price on request | Contact us for price and availability |
| 16 | 20073508 | Ferrari Spring Button - 20073508 | $3.81 | Available, ships in 3-6 days |
| 50315100 | Ferrari RH Front Panel - 50315100 | Price on request | Contact us for price and availability | |
| - | 50351204 | Ferrari Carpet Set LHD - 50351204 | Price on request | Contact us for price and availability |
| - | 50351303 | Ferrari Carpet Set RHD - 50351303 | Price on request | Contact us for price and availability |
