Ferrari 512 BB (Carburetor) — Instruments And Accessories (diagram 114)

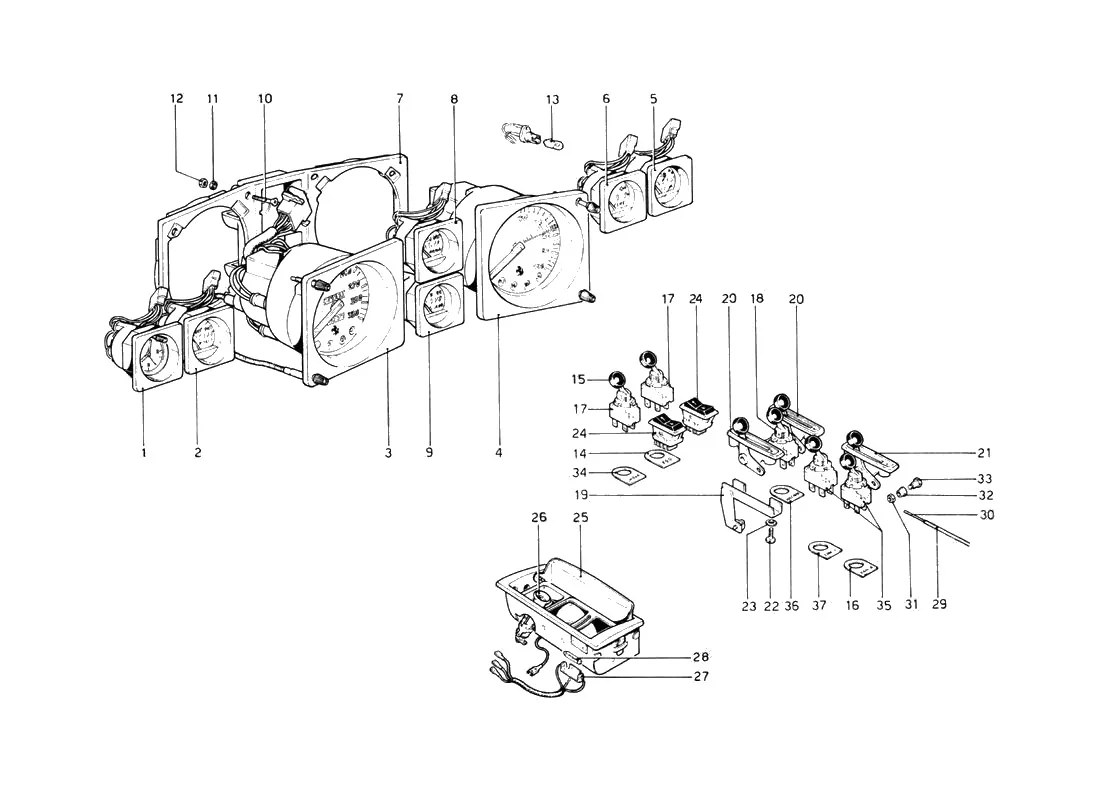

Exploded view of the instruments and accessories on the Ferrari 512 BB (Carburetor), with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/114.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50105204 | Ferrari Time Clock - 50105204 | Price on request | Contact us for price and availability |
| 2 | 50104900 | Ferrari Oil Temperature Gauge LHD - 50104900 | Price on request | Contact us for price and availability |
| 2 | 50105501 | Ferrari Oil Temperature Gauge RHD - 50105501 | $283.42 | Available, ships in 3-6 days |
| 3 | 50105808 | Ferrari Speedo Head KPH - 50105808 | Price on request | Contact us for price and availability |
| 3 | 50106103 | Ferrari Speedo Head MPH - 50106103 | Superseded | Order 114344 instead |
| 3 | 114344 | Ferrari 365/512BB & BBi Speedometer MPH - 114344 | $1,137.62 | Available, ships in 3-6 days |
| 4 | 50340009 | Ferrari Rev Counter 512/Bb - 50340009 | Price on request | Contact us for price and availability |
| 5 | 50105105 | Ferrari Fuel Gauge LHD - 50105105 | $326.37 | Available, ships in 3-6 days |
| 5 | 50105600 | Ferrari Fuel Gauge RHD - 50105600 | $279.87 | Available, ships in 3-6 days |
| 6 | 50321702 | Ferrari Ammeter Gauge - 50321702 | Price on request | Contact us for price and availability |
| 7 | 50215201 | Ferrari Board LHD - 50215201 | Price on request | Contact us for price and availability |
| 7 | 50215300 | Ferrari Board RHD - 50215300 | Price on request | Contact us for price and availability |
| 8 | 50215409 | Ferrari Water Temperature Gauge (C) - 50215409 | $229.58 | Available, ships in 3-6 days |
| 9 | 50215508 | Ferrari Oil Pressure Gauge - 50215508 | $246.02 | Available, ships in 3-6 days |
| 10 | 10342301 | Ferrari Screw - 10342301 | Price on request | Contact us for price and availability |
| 11 | 10615270 | Ferrari Washer - 10615270 | Superseded | Order 10615274 instead |
| 11 | 10615274 | Ferrari Washer - 10615274 | $0.19 | Available, ships in 3-6 days |
| 12 | 10794011 | Ferrari Nut M4 x 0.7mm - 10794011 | $0.06 | Available, ships in 3-6 days |
| 13 | 101525 | Ferrari Bulb 12V-3W - 101525 | $5.88 | Available, ships in 3-6 days |
| 13 | 20083309 | Ferrari Bulb 12V-4W - 20083309 | Superseded | Order 101525 instead |
| 14 | 50316306 | Ferrari Nameplate FOG - 50316306 | $9.43 | Available, ships in 3-6 days |
| 14 | 50322601 | Ferrari Nameplate RF - 50322601 | Price on request | Contact us for price and availability |
| 15 | 50017201 | Ferrari Lever Knob - 50017201 | $13.75 | In stock |
| 16 | 50316108 | Ferrari RH Nameplate FAN - 50316108 | Price on request | Contact us for price and availability |
| 17 | 60053709 | Ferrari Fan Switch - 60053709 | $145.85 | In stock |
| 18 | 60053600 | Ferrari Interior Switch - 60053600 | $247.50 | In stock |
| 19 | 40136905 | Ferrari Defroster Lever - 40136905 | $40.68 | In stock |
| 19 | 50319600 | Ferrari RH Defroster Fixing Lever - 50319600 | $12.98 | Special order, ships in 7-14 days |
| 20 | 50127406 | Ferrari RH Defroster Lever - 50127406 | Price on request | Contact us for price and availability |
| 21 | 50319508 | Ferrari Lever - 50319508 | Price on request | Contact us for price and availability |
| 22 | 50209402 | Ferrari Screw - 50209402 | Superseded | Order 15903802 instead |
| 23 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 23 | 12638101 | Ferrari Washer White - 12638101 | Superseded | Order 12638124 instead |
| 24 | 30073407 | Ferrari Window Switch - 30073407 | $76.45 | In stock |
| 25 | 50049402 | Ferrari Ashtray - 50049402 | Price on request | Contact us for price and availability |
| 26 | 50065606 | Ferrari Cigarette Lighter - 50065606 | Price on request | Contact us for price and availability |
| 27 | 50117209 | Ferrari Dome Lamp - 50117209 | Price on request | Contact us for price and availability |
| 28 | 20163002 | Ferrari Bulb - 20163002 | Price on request | Contact us for price and availability |
| 29 | 50101005 | Ferrari Cable Sleeve - 50101005 | Price on request | Contact us for price and availability |
| 30 | 50101203 | Ferrari Cable - 50101203 | $10.58 | Special order, ships in 7-14 days |
| 32 | 20046900 | Ferrari Bush - 20046900 | $4.14 | Special order, ships in 7-14 days |
| 33 | 20091609 | Ferrari Screw - 20091609 | Price on request | Contact us for price and availability |
| 34 | 50316405 | Ferrari Nameplate CHOKE - 50316405 | $9.43 | Special order, ships in 7-14 days |
| 35 | 50322007 | Ferrari 308/512 Instrument Switch - 50322007 | $75.46 | In stock |
| 36 | 50316009 | Ferrari Nameplate HAZARD - 50316009 | Price on request | Contact us for price and availability |
| 37 | 50316207 | Ferrari LH Nameplate FAN - 50316207 | Price on request | Contact us for price and availability |
| 101528 | Ferrari Bulb 12v 4w - 101528 | Superseded | Order 101525 instead | |
| 60603000 | Ferrari Cigarette Lighter - 60603000 | Price on request | Contact us for price and availability | |
| 70000627 | Ferrari Cigarette Lighter - 70000627 | Price on request | Contact us for price and availability | |
| 401329 | Ferrari Lamp - 401329 | Superseded | Order 101525 instead | |
| 15903802 | Ferrari Screw - 15903802 | $0.17 | Special order, ships in 7-14 days | |
| 106312 | Ferrari Time Clock - 106312 | Price on request | Contact us for price and availability |
