Ferrari 512 BB (Carburetor) — Fuses And Relays (diagram 116)

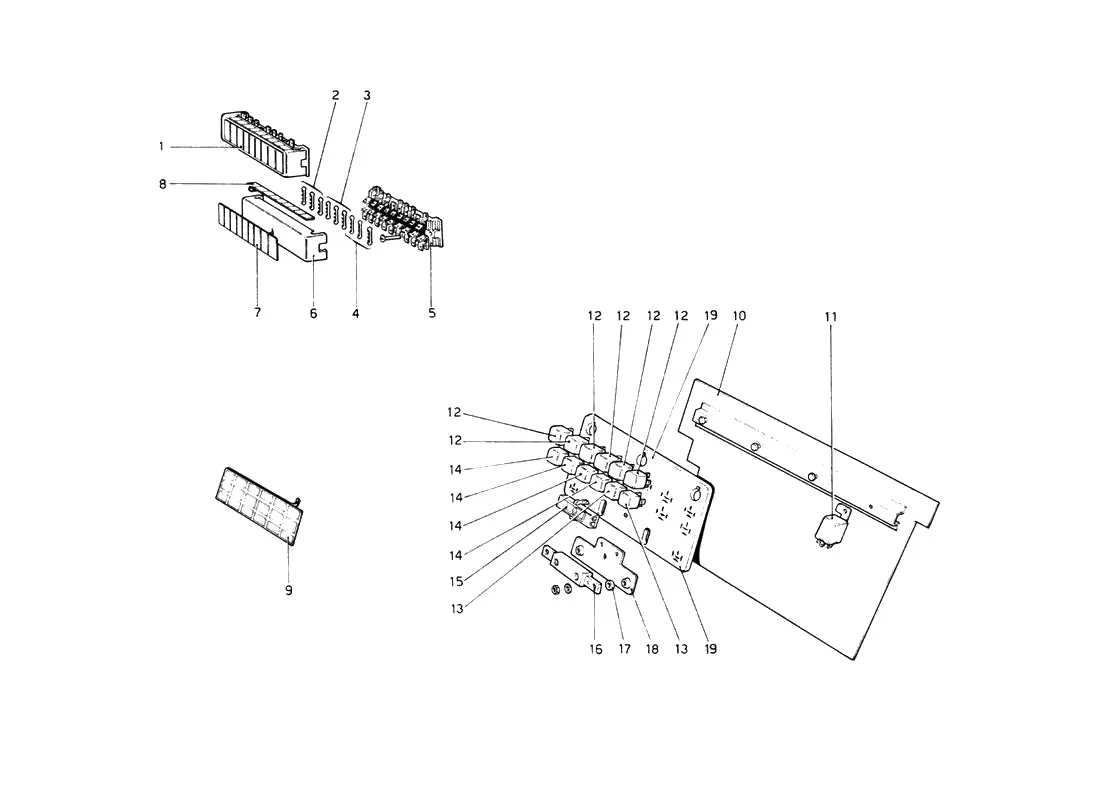

Exploded view of the fuses and relays on the Ferrari 512 BB (Carburetor), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 40052607 | Ferrari RH Fuse Box Complete - 40052607 | $621.08 | Available, ships in 3-6 days |
| 1 | 40052409 | Ferrari RH Fuse Box - 40052409 | Superseded | Order 40052607 instead |
| 1 | 50181007 | Ferrari LH Fuse Box Complete White - 50181007 | $763.06 | Available, ships in 3-6 days |
| 1 | 40196909 | Ferrari Fuse Box White - 40196909 | $763.06 | Available, ships in 3-6 days |
| 2 | 10858090 | Ferrari Fuse 8A Ceramic - 10858090 | $0.73 | Available, ships in 3-6 days |
| 3 | 11048990 | Ferrari Fuse 16 Amp Ceramic - 11048990 | $0.86 | Available, ships in 3-6 days |
| 4 | 11048890 | Ferrari Fuse 25 Amp - 11048890 | $0.71 | Available, ships in 3-6 days |
| 5 | 40052508 | Ferrari LH Fuse Box - 40052508 | $611.24 | Available, ships in 3-6 days |
| 6 | 40052300 | Ferrari Fuse Box Black Cover - 40052300 | Price on request | Contact us for price and availability |
| 7 | 40056301 | Ferrari RH Nameplate Fusebox Sticker Large - 40056301 | $15.98 | Available, ships in 3-6 days |
| 7 | 50201003 | Ferrari LH Nameplate To Fusebox Large White - 50201003 | Price on request | Contact us for price and availability |
| 8 | 40135600 | Ferrari RH Nameplate Fusebox Amps Sticker - 40135600 | $16.71 | Available, ships in 3-6 days |
| 8 | 50201102 | Ferrari LH Nameplate Fusebox Amps Sticker - 50201102 | Price on request | Contact us for price and availability |
| 9 | 50320100 | Ferrari Plate - 50320100 | Price on request | Contact us for price and availability |
| 10 | 50309806 | Ferrari Shield LHD - 50309806 | $571.91 | Available, ships in 3-6 days |
| 10 | 50327600 | Ferrari Shield RHD - 50327600 | $684.35 | Available, ships in 3-6 days |
| 11 | 50319300 | Ferrari Indicator Relay - 50319300 | Price on request | Contact us for price and availability |
| 12 | 40130007 | Ferrari Relay - 40130007 | $29.15 | In stock |
| 13 | 40283905 | Ferrari Relay - 40283905 | $125.54 | Available, ships in 3-6 days |
| 14 | 40130106 | Ferrari Relay - 40130106 | $23.12 | Available, ships in 3-6 days |
| 15 | 40130205 | Ferrari Double Connector - 40130205 | $19.32 | Available, ships in 3-6 days |
| 16 | 50109008 | Ferrari Ammeter Shunt - 50109008 | Price on request | Contact us for price and availability |
| 17 | 50049006 | Ferrari Spacer - 50049006 | $4.73 | Available, ships in 3-6 days |
| 18 | 50309707 | Ferrari Support - 50309707 | $38.81 | Available, ships in 3-6 days |
| 19 | 60035805 | Ferrari Fuse Block - 60035805 | Price on request | Contact us for price and availability |
| 40052706 | Ferrari LH Fuse Box Complete - 40052706 | $521.75 | Available, ships in 3-6 days | |
| 61109100 | Ferrari Plate - 61109100 | Price on request | Contact us for price and availability |
