Ferrari 512 BB (Carburetor) — Lights (diagram 118)

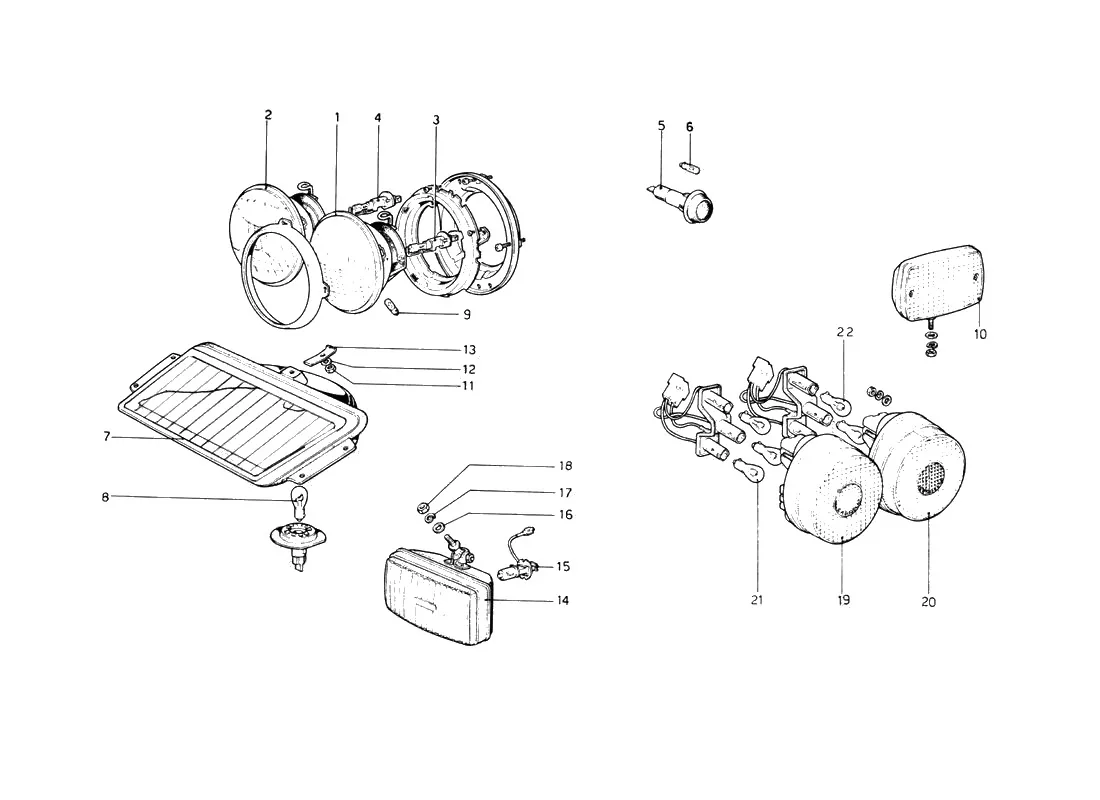

Exploded view of the lights on the Ferrari 512 BB (Carburetor), with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/118.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50082403 | Ferrari RH Main Beam Unit - 50082403 | $275.75 | Available, ships in 3-6 days |
| 1 | 50082502 | Ferrari LH Main Beam Unit - 50082502 | $166.42 | Available, ships in 3-6 days |
| 1 | 102400 | Ferrari LH Main Beam Assy (Yellow) - 102400 | $166.42 | Available, ships in 3-6 days |
| 1 | 50104306 | Ferrari RH Main Beam Unit (White Lens) LHD - 50104306 | Price on request | Contact us for price and availability |
| 1 | 50104405 | Ferrari LH Main Beam Unit (White Lens) LHD - 50104405 | Price on request | Contact us for price and availability |
| 1 | 50150804 | Ferrari LH Main Beam Unit RHD - 50150804 | Price on request | Contact us for price and availability |
| 1 | 50151000 | Ferrari LH Main Beam Unit - 50151000 | Price on request | Contact us for price and availability |
| 1 | 50150705 | Ferrari RH Main Beam Unit RHD - 50150705 | Price on request | Contact us for price and availability |
| 1 | 50150903 | Ferrari RH Main Beam Unit - 50150903 | Price on request | Contact us for price and availability |
| 2 | 50082205 | Ferrari RH Dip Beam Unit(Yellow Lens) - 50082205 | $147.49 | Available, ships in 3-6 days |
| 2 | 102401 | Ferrari RH Dip Beam Assy (Yellow) - 102401 | $147.49 | Available, ships in 3-6 days |
| 2 | 50082304 | Ferrari LH Dip Beam Unit(Yellow Lens) - 50082304 | $275.56 | Special order, ships in 7-14 days |
| 2 | 40198004 | Ferrari LH Main Beam Lamp Housing - 40198004 | $138.00 | Available, ships in 3-6 days |
| 2 | 50107101 | Ferrari RH Dip Beam Unit(White Lens) - 50107101 | Price on request | Contact us for price and availability |
| 2 | 50107200 | Ferrari LH Dip Beam Unit(White Lens) - 50107200 | $137.18 | Available, ships in 3-6 days |
| 3 | 20161808 | Ferrari Halogen Lamp - 20161808 | Price on request | Contact us for price and availability |
| 4 | 40214603 | Ferrari Halogen Lamp - 40214603 | Price on request | Contact us for price and availability |
| 5 | 50020007 | Ferrari Wing Repeater - 50020007 | $125.33 | Available, ships in 3-6 days |
| 5 | 60054103 | Ferrari Wing Repeater Lamp - 60054103 | $125.33 | Available, ships in 3-6 days |
| 6 | 101525 | Ferrari Bulb 12V-3W - 101525 | $5.88 | Available, ships in 3-6 days |
| 6 | 20083309 | Ferrari Bulb 12V-4W - 20083309 | Superseded | Order 101525 instead |
| 7 | 50021005 | Ferrari LH Front Indicator White Lens - 50021005 | Price on request | Contact us for price and availability |
| 7 | 50104207 | Ferrari LH Front Indicator Lamp (Orange Lens) - 50104207 | $3,633.00 | Available, ships in 3-6 days |
| 7 | 50104108 | Ferrari RH Front Indicator Orange Lens - 50104108 | $3,778.33 | Available, ships in 3-6 days |
| 7 | 50020908 | Ferrari RH Front Indicator White Lens - 50020908 | Price on request | Contact us for price and availability |
| 8 | 20083200 | Ferrari Bulb 12V-21W - 20083200 | Price on request | Contact us for price and availability |
| 10 | 60197802 | Ferrari Rear Guard Lamp Ver/B - 60197802 | Price on request | Contact us for price and availability |
| 11 | 15896414 | Ferrari Nut M5 x 4 - 15896414 | $0.13 | Available, ships in 3-6 days |
| 11 | 15896411 | Ferrari RH Thread Nut - 15896411 | Superseded | Order 15896414 instead |
| 12 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 12 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 13 | 50145309 | Ferrari Plate - 50145309 | Price on request | Contact us for price and availability |
| 14 | 50020106 | Ferrari Fog Lamp Unit Carello - 50020106 | Superseded | Order 50370501 instead |
| 14 | 50370501 | Ferrari Fog Lamp - 50370501 | $823.51 | Available, ships in 3-6 days |
| 14 | 50020304 | Ferrari Fog Lamp Unit - 50020304 | Price on request | Contact us for price and availability |
| 14 | 50020205 | Ferrari Fog Lamp Unit - 50020205 | Price on request | Contact us for price and availability |
| 15 | 40214009 | Ferrari Lamp - 40214009 | Price on request | Contact us for price and availability |
| 16 | 12638601 | Ferrari Washer - 12638601 | $1.05 | Available, ships in 3-6 days |
| 16 | 20232104 | Ferrari Plain Washer - 20232104 | $1.07 | Available, ships in 3-6 days |
| 17 | 11196170 | Ferrari Washer - 11196170 | Price on request | Contact us for price and availability |
| 18 | 50097609 | Ferrari Nut - 50097609 | Price on request | Contact us for price and availability |
| 19 | 60170206 | Ferrari Rear Indicator & Reverse Light - 60170206 | $392.98 | In stock |
| 19 | 60170206/A | Ferrari Rear Indicator & Reverse Lamp - 60170206/A | $591.64 | Available, ships in 3-6 days |
| 20 | 60170305 | Ferrari Tail Light - 60170305 | $394.80 | In stock |
| 20 | 60170305/A | Ferrari Rear Stop/Tail Lamp - 60170305/A | $554.07 | Available, ships in 3-6 days |
| 22 | 20082905 | Ferrari Bulb 12V-5/21W - 20082905 | Price on request | Contact us for price and availability |
| 101522 | Ferrari Bulb 12v 21w - 101522 | Price on request | Contact us for price and availability | |
| 101528 | Ferrari Bulb 12v 4w - 101528 | Superseded | Order 101525 instead | |
| 50370600 | Ferrari Fog Lamp - 50370600 | Price on request | Contact us for price and availability | |
| 50370709 | Ferrari Fog Lamp - 50370709 | $259.90 | Available, ships in 3-6 days | |
| 101527 | Ferrari Halogen Bulb 12V 55W - 101527 | Price on request | Contact us for price and availability | |
| 40215006 | Ferrari Halogen Lamp - 40215006 | Price on request | Contact us for price and availability | |
| 401329 | Ferrari Lamp - 401329 | Superseded | Order 101525 instead | |
| 40369803 | Ferrari Lamp - 40369803 | Price on request | Contact us for price and availability | |
| 15896401 | Ferrari Nut - 15896401 | Superseded | Order 15896414 instead | |
| 50207208 | Ferrari Nut - 50207208 | Superseded | Order 15896414 instead |
