Ferrari 512 BB (Carburetor) — Heating System (diagram 120)

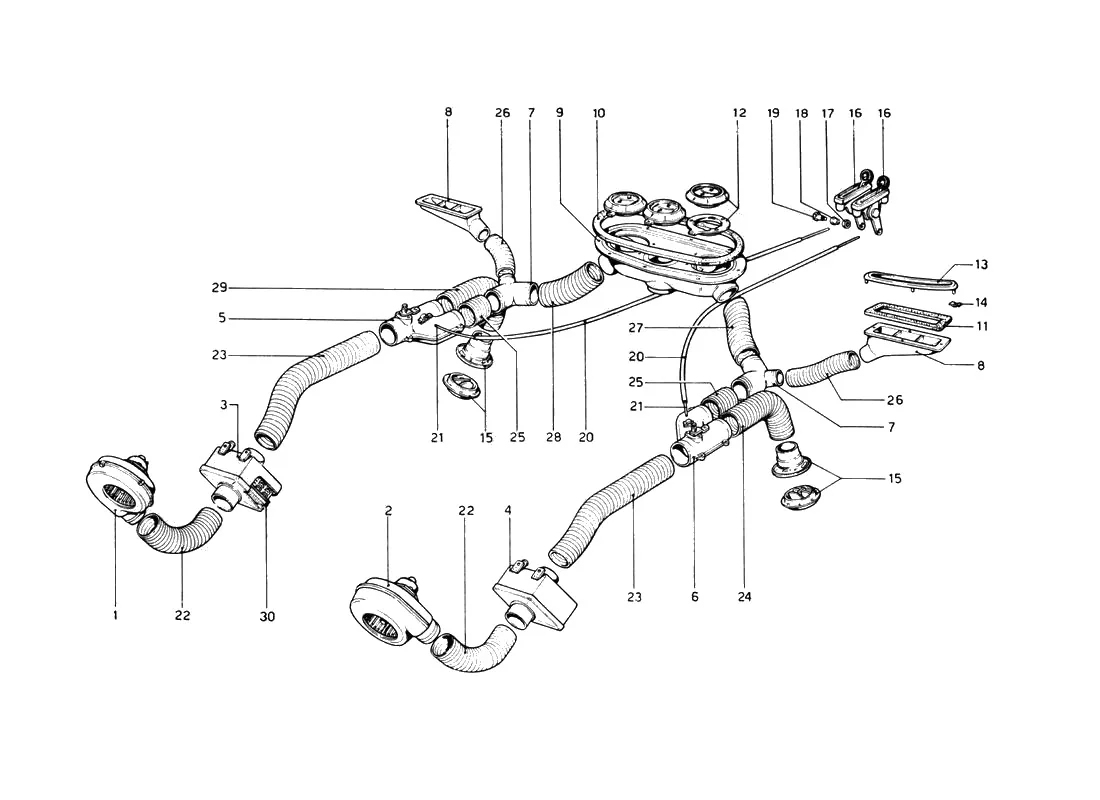

Exploded view of the heating system on the Ferrari 512 BB (Carburetor), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/120.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 50326206 | Ferrari RH Fan Motor Assy - 50326206 | Price on request | Contact us for price and availability |
| 2 | 50326305 | Ferrari LH Fan Motor Assy - 50326305 | Price on request | Contact us for price and availability |
| 3 | 50329903 | Ferrari RH Heater Box Assy - 50329903 | $621.90 | Available, ships in 3-6 days |
| 4 | 50330000 | Ferrari LH Heater Box Assy - 50330000 | Price on request | Contact us for price and availability |
| 5 | 50021708 | Ferrari RH Air Vent - 50021708 | Price on request | Contact us for price and availability |
| 6 | 50021807 | Ferrari LH Air Vent - 50021807 | Price on request | Contact us for price and availability |
| 7 | 60153608 | Ferrari LH/RH Union Air Ducting - 60153608 | $26.01 | Available, ships in 3-6 days |
| 8 | 50022904 | Ferrari Air Outlet - 50022904 | $214.07 | Available, ships in 3-6 days |
| 9 | 20142709 | Ferrari Diverter - 20142709 | $1,913.58 | Special order, ships in 7-14 days |
| 10 | 50091503 | Ferrari Gasket - 50091503 | Price on request | Contact us for price and availability |
| 11 | 50091602 | Ferrari Gasket - 50091602 | Price on request | Contact us for price and availability |
| 12 | 50318302 | Ferrari Air Intake - 50318302 | Price on request | Contact us for price and availability |
| 13 | 50030105 | Ferrari Vent Surround - 50030105 | Price on request | Contact us for price and availability |
| 14 | 20043204 | Ferrari Spring - 20043204 | Price on request | Contact us for price and availability |
| 15 | 50318807 | Ferrari Air Vent - 50318807 | Price on request | Contact us for price and availability |
| 16 | 50127406 | Ferrari RH Defroster Lever - 50127406 | Price on request | Contact us for price and availability |
| 17 | 10794011 | Ferrari Nut M4 x 0.7mm - 10794011 | $0.06 | Available, ships in 3-6 days |
| 18 | 20046900 | Ferrari Bush - 20046900 | $4.14 | Special order, ships in 7-14 days |
| 19 | 20091609 | Ferrari Screw - 20091609 | Price on request | Contact us for price and availability |
| 20 | 50100908 | Ferrari Cable Hose - 50100908 | Price on request | Contact us for price and availability |
| 21 | 50101104 | Ferrari Heater Control Cable - 50101104 | Price on request | Contact us for price and availability |
| 22 | 50019207 | Ferrari Tubing - 50019207 | Price on request | Contact us for price and availability |
| 23 | 50019603 | Ferrari Tube - 50019603 | Price on request | Contact us for price and availability |
| 24 | 50019405 | Ferrari Tube - 50019405 | Price on request | Contact us for price and availability |
| 25 | 50021906 | Ferrari Tube - 50021906 | Price on request | Contact us for price and availability |
| 26 | 50019108 | Ferrari Tube - 50019108 | Price on request | Contact us for price and availability |
| 27 | 50347103 | Ferrari Tube - 50347103 | Price on request | Contact us for price and availability |
| 29 | 50347202 | Ferrari Air Trunking - 50347202 | $67.20 | Available, ships in 3-6 days |
| 30 | 60151909 | Ferrari Filter - 60151909 | Price on request | Contact us for price and availability |
| 50205608 | Ferrari Air Intake - 50205608 | Price on request | Contact us for price and availability | |
| 50205707 | Ferrari Air Vent - 50205707 | Price on request | Contact us for price and availability | |
| 60054301 | Ferrari Air Vent - 60054301 | $697.67 | Available, ships in 3-6 days | |
| 60054400 | Ferrari Dash Air Vent - 60054400 | $877.72 | Special order, ships in 7-14 days | |
| 50022805 | Ferrari Diverter - 50022805 | Price on request | Contact us for price and availability | |
| 50021203 | Ferrari LH Heater Matrix Assy - 50021203 | Price on request | Contact us for price and availability |
