Ferrari 512 BBi — Brake Hydraulic System (For RHD Version) (diagram 041)

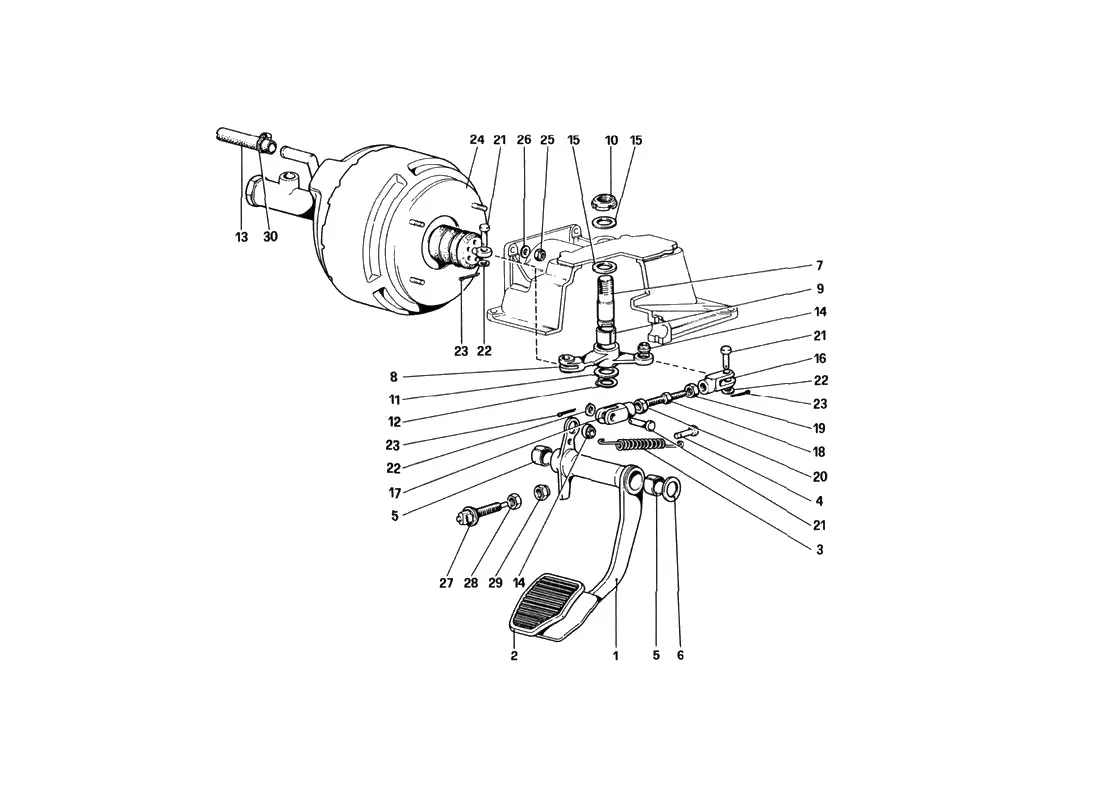

Exploded view of the brake hydraulic system (for rhd version) on the Ferrari 512 BBi, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BBi Brake Hydraulic System (For RHD Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
11066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
106094Ferrari Lever - 106094$277.05Available, ships in 3-6 days
10788711Ferrari Nut - 10788711$0.38Available, ships in 3-6 days
660523Ferrari Nut - 660523Price on requestContact us for price and availability
4032794Ferrari Nylon Nut - 4032794$5.59Available, ships in 3-6 days
13000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
144-81-852-00Ferrari Sl Switch - 144-81-852-00SupersededOrder 101663 instead
4177124Ferrari Stop Switch - 4177124SupersededOrder 101663 instead
660522Ferrari Switch Stop - 660522SupersededOrder 101663 instead
92306Ferrari Washer - 92306$3.56Special order, ships in 7-14 days
7106081Ferrari Brake pedal linkage pin - 106081$75.15Available, ships in 3-6 days
8108313Ferrari Lever - 108313$106.97Available, ships in 3-6 days
1211066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
19103157Ferrari LH Thread Nut - 103157Price on requestContact us for price and availability
24106501Ferrari Brake Servo - 106501Price on requestContact us for price and availability
27101663Ferrari Brake Light Switch - 101663$42.85In stock
2810730501Ferrari Washer - 10730501$1.51Available, ships in 3-6 days
29101662Ferrari Nylon Nut - 101662Price on requestContact us for price and availability
3012179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead

All 512 BBi diagrams
