Ferrari 512 BBi — Instrument Panel (diagram 111)

Exploded view of the instrument panel on the Ferrari 512 BBi, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

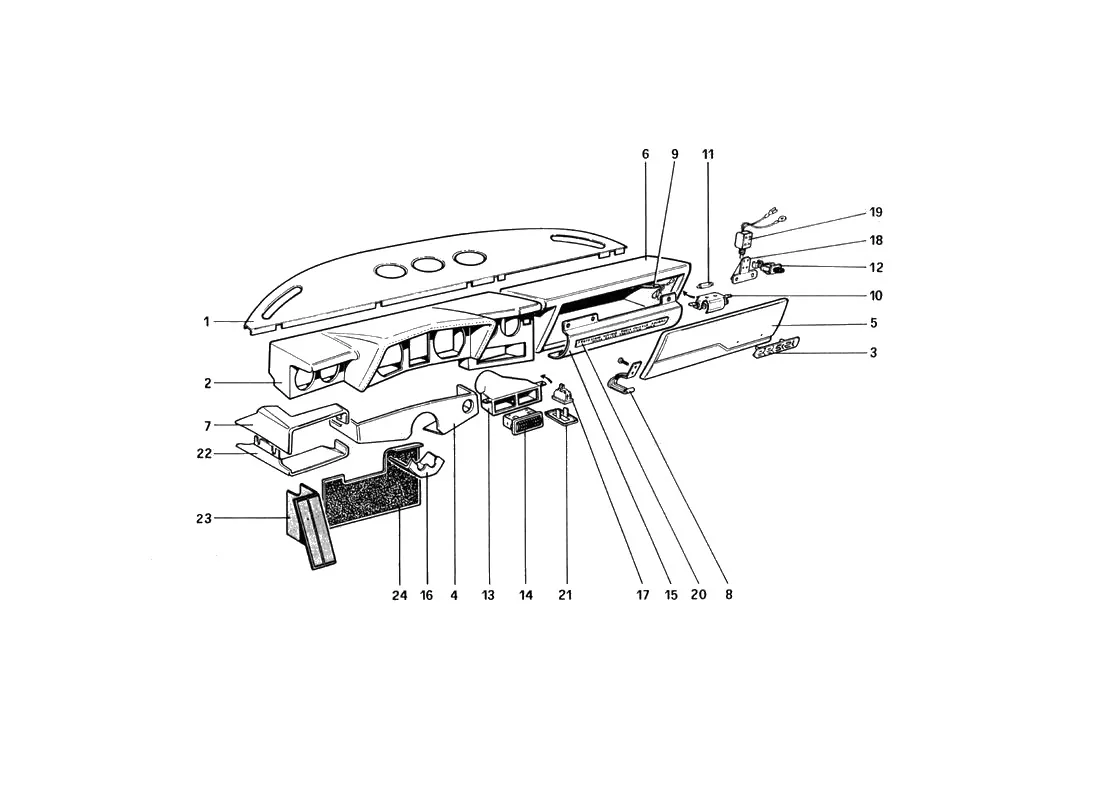

Ferrari 512 BBi Instrument Panel exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150128206Ferrari Front Shield LHD - 50128206Price on requestContact us for price and availability
150162502Ferrari Front Shield RHD - 50162502Price on requestContact us for price and availability
150128107Ferrari Lining LHD - 50128107$682.14Special order, ships in 7-14 days
150163005Ferrari Lining RHD - 50163005$687.41Special order, ships in 7-14 days
260857100Ferrari Dashboard LHD - 60857100Price on requestContact us to order
260531100Ferrari Lining LHD - 60531100$1,060.24Special order, ships in 7-14 days
260926300Ferrari Dashboard RHD - 60926300$2,702.12Contact us to order
360878600Ferrari Motif "BB512i" - 60878600Price on requestContact us for price and availability
361023500Ferrari Motif BB512i - 61023500$371.95Available, ships in 3-6 days
361023500/DFerrari Motif BB512i - 61023500/D$371.95Available, ships in 3-6 days
460524700Ferrari Upper Frame - 60524700$641.32Available, ships in 3-6 days
460524500Ferrari Lining - 60524500$218.40Special order, ships in 7-14 days
460986100Ferrari Cover - 60986100$608.10Special order, ships in 7-14 days
460986200Ferrari Lining - 60986200$174.53Special order, ships in 7-14 days
560865600Ferrari Glove Box Door - 60865600Price on requestContact us for price and availability
560863400Ferrari Door Lining Exterior - 60863400$63.75Special order, ships in 7-14 days
560863500Ferrari Door Lining Interior - 60863500$63.75Special order, ships in 7-14 days
660857000Ferrari Glove Box LHD - 60857000Price on requestContact us for price and availability
660863900Ferrari Glove Box Covering LHD - 60863900Price on requestContact us for price and availability
660925900Ferrari Glove Box RHD - 60925900Price on requestContact us for price and availability
660926000Ferrari Glove Box Covering RHD - 60926000Price on requestContact us for price and availability
760908500Ferrari Cover LHD - 60908500$506.69Available, ships in 3-6 days
760927300Ferrari Cover RHD - 60927300$312.30Available, ships in 3-6 days
860655500Ferrari Hinge - 60655500$8.38Available, ships in 3-6 days
960924800Ferrari Cable - 60924800Price on requestContact us for price and availability
1020068300Ferrari Dome Lamp - 20068300$414.13Available, ships in 3-6 days
1120083101Ferrari Festoon Bulb - 20083101Price on requestContact us for price and availability
1260599900Ferrari Door Courtesy Light Switch - 60599900Price on requestContact us for price and availability
1350335603Ferrari Conveyor LHD - 50335603Price on requestContact us for price and availability
1360981700Ferrari Conveyor RHD - 60981700$437.42Available, ships in 3-6 days
1350335504Ferrari Lining LHD - 50335504Price on requestContact us for price and availability
1360981800Ferrari Lining RHD - 60981800$128.01Available, ships in 3-6 days
1460124302Ferrari Inlet Vent - 60124302Price on requestContact us for price and availability
1560859800Ferrari Cover LHD - 60859800$81.02Available, ships in 3-6 days
1560985900Ferrari Cover RHD - 60985900Price on requestSpecial order, ships in 7-14 days
1660524800Ferrari Dash Panel LHD - 60524800Price on requestContact us to order
1660524600Ferrari Lining LHD - 60524600Price on requestContact us for price and availability
1660525000Ferrari Dash Panel RHD - 60525000$225.30Special order, ships in 7-14 days
1660525200Ferrari Lining RHD - 60525200Price on requestContact us for price and availability
17137486Ferrari Mondial T Control Switch - 137486$87.78In stock
1760922400Ferrari Switch Fuel Filler & Dashboard - 60922400$176.70Available, ships in 3-6 days
1860585300Ferrari Bracket - 60585300$48.61Available, ships in 3-6 days
1960584900Ferrari Magnet Lock - 60584900$165.01Special order, ships in 7-14 days
2060945000Ferrari Plate - 60945000$7.53Special order, ships in 7-14 days
2160922500Ferrari Plate - 60922500$25.45Available, ships in 3-6 days
2260946700Ferrari Cover LHD - 60946700Price on requestContact us for price and availability
2260947400Ferrari Cover RHD - 60947400$312.30Available, ships in 3-6 days
2350040500Ferrari Rubber Footrest LHD - 50040500Price on requestContact us for price and availability
2350338805Ferrari Rubber Footrest RHD - 50338805$54.41Available, ships in 3-6 days
2450341205Ferrari Under Pedal Carpet LHD - 50341205Price on requestContact us for price and availability
2450346709Ferrari Under Pedal Carpet RHD - 50346709Price on requestContact us for price and availability

All 512 BBi diagrams
