Ferrari 512 TR — Lubrication (diagram 021)

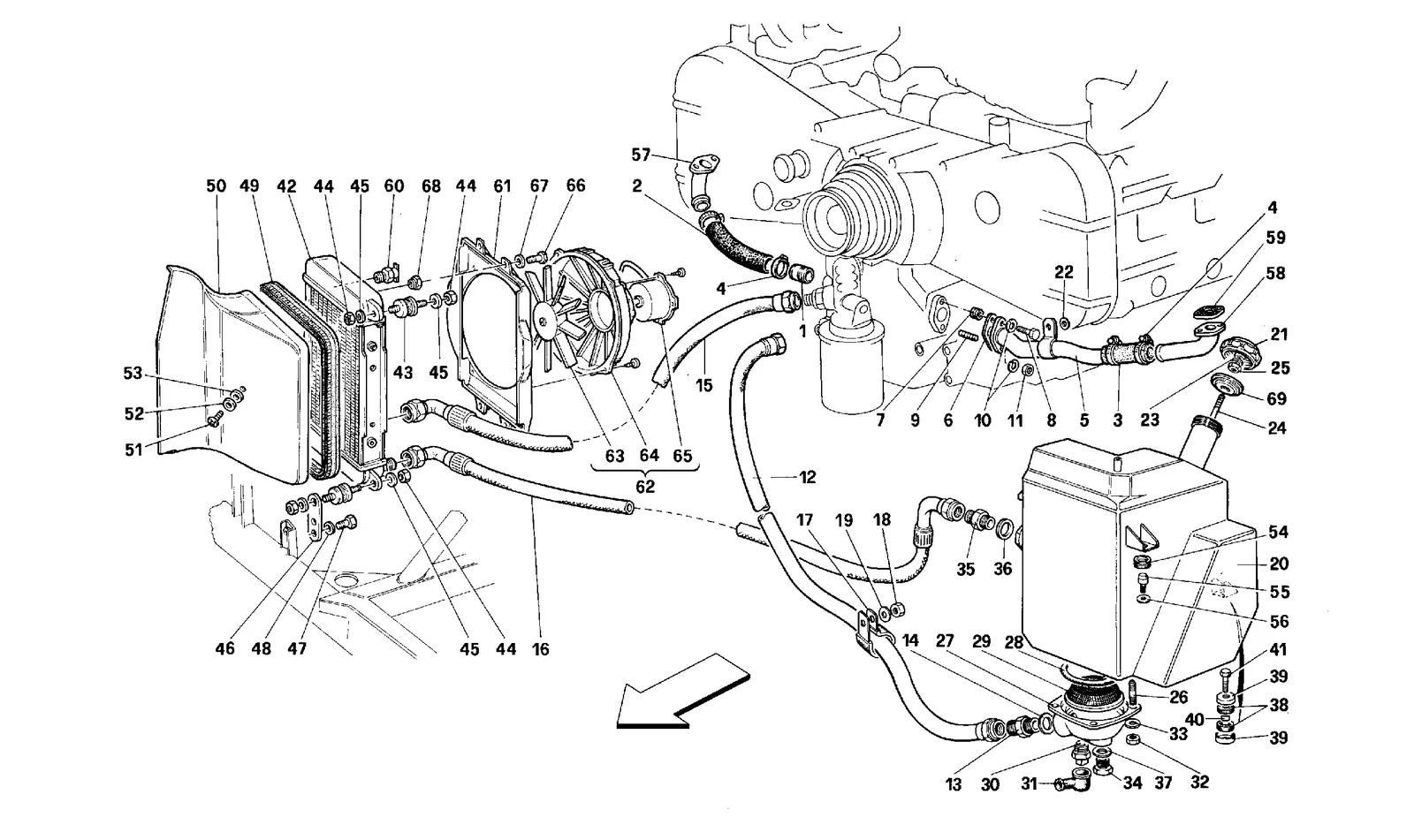

Exploded view of the lubrication on the Ferrari 512 TR, with 94 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 TR Lubrication exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1104561Ferrari Union - 104561$13.90Available, ships in 3-6 days
2122828Ferrari Breather Hose - 122828$31.35In stock
3122829Ferrari 512/Testarossa Breather Hose - 122829$31.35In stock
413000590Ferrari Hose Clip 25 - 40mm - 13000590$1.48Available, ships in 3-6 days
412173090Ferrari Hose Clamp 25-40 - 12173090SupersededOrder 13000590 instead
5149786Ferrari LH Cylinder Head Oil Exhaust Pipe - 149786$136.91Available, ships in 3-6 days
6150193Ferrari Oil Line Gasket - 150193$5.45In stock
6AW3500001Ferrari Testarossa Cam Cover Gasket Kit - AW3500001$339.50In stock
713525570Ferrari Heli-Coil - 13525570Price on requestContact us for price and availability
810902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
911500224Ferrari Stud - 11500224$0.82Available, ships in 3-6 days
10127494Ferrari Lock Washer - 127494$0.50In stock
11134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
12146906Ferrari Hose From Reservoir To Pump - 146906Price on requestContact us for price and availability
13138149Ferrari Union - 138149$90.95Special order, ships in 7-14 days
14898271Ferrari/Maserati Dowty Washer - 898271$28.23In stock
14144485Ferrari Dowty Washer - 144485SupersededOrder 898271 instead
15146905Ferrari Hose From Pump To Radiator - 146905Price on requestContact us for price and availability
16146904Ferrari Hose From Radiator To Reservoir - 146904Price on requestContact us for price and availability
17106195Ferrari P Clip Bracket - 106195$115.98Special order, ships in 7-14 days
18102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1812574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
1910519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
1914496401Ferrari Washer - 14496401SupersededOrder 10519424 instead
20125517Ferrari Oil Tank - 125517$1,316.27Special order, ships in 7-14 days
21145623Ferrari Oil Tank Cap - 145623Price on requestContact us for price and availability
2214496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
2312601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
24139646Ferrari Dipstick - 139646$38.24Available, ships in 3-6 days
2515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
2611500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
2611500424Ferrari Stud M6 x 9 Gambo 20 - 11500424$1.04Available, ships in 3-6 days
27125473Ferrari Suction - Oil Tank Lower Cover - 125473Price on requestContact us for price and availability
28125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
29100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
30148676Ferrari Oil Temperature Thermistor - 148676$227.87Available, ships in 3-6 days
30148676/AFerrari Sender Unit - 148676/A$286.83Available, ships in 3-6 days
31107003Ferrari Connector Rubber Boot - 107003$40.40Available, ships in 3-6 days
31107003/AFerrari Connector Rubber Boot - 107003/A$40.17Available, ships in 3-6 days
3410300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
35138150Ferrari Union - 138150$42.52In stock
36144487Ferrari Dowty Washer - 144487SupersededOrder 907923 instead
36907923Ferrari Dowty Washer - 907923$61.26Available, ships in 3-6 days
3710257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
38107978Ferrari Mounting Rubber - 107978$13.75In stock
39107979Ferrari Cap - 107979$21.58Available, ships in 3-6 days
40107980Ferrari Spacer D. 9 - 12 x 14 - 107980$11.83Available, ships in 3-6 days
41123029Ferrari Screw - 123029$0.54Available, ships in 3-6 days
42154568Ferrari Oil Cooler Radiator - 154568$1,415.76Available, ships in 3-6 days
42148519Ferrari Oil Cooler Radiator - 148519SupersededOrder 154568 instead
43102947Ferrari Vibration Dampening Support - 102947$8.31In stock
4512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
46149548Ferrari Bracket - 149548$2.97Available, ships in 3-6 days
4716296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
49149533Ferrari Gasket - 149533$30.07Available, ships in 3-6 days
50149339Ferrari Conveyor - 149339$55.43Available, ships in 3-6 days
5110902521Ferrari Bolt - 10902521Price on requestContact us for price and availability
5410397480Ferrari Ring - 10397480$2.73Available, ships in 3-6 days
55125708Ferrari Pin - 125708Price on requestSpecial order, ships in 7-14 days
56108242Ferrari Washer - 108242Price on requestContact us for price and availability
57122826Ferrari RH Oil Return Union - 122826Price on requestContact us for price and availability
58149808Ferrari LH Cylinder Head Oil Union - 149808$64.07Available, ships in 3-6 days
59150192Ferrari Oil Line Gasket - 150192$5.45In stock
60123277Ferrari 348/Mondial/Testarossa Oil Temp Switch - 123277$97.63In stock
61140809Ferrari Electro Fan Hood - 140809Price on requestContact us for price and availability
62153431Ferrari Electric Fan - 153431$293.71Available, ships in 3-6 days
63154223Ferrari Fan Blade - 154223$416.09Special order, ships in 7-14 days
64154224Ferrari Conveyor - 154224$318.19Special order, ships in 7-14 days
65154225Ferrari Fan Motor - 154225$348.11Special order, ships in 7-14 days
69180585Ferrari Oil Tank Cap Gasket - 180585$130.04Available, ships in 3-6 days
69145625Ferrari Oil Tank Cap Gasket - 145625SupersededOrder 180585 instead
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
124691Ferrari Dip Stick - 124691$56.79Available, ships in 3-6 days
118059Ferrari Gasket - 118059Price on requestContact us for price and availability
891997Ferrari Gasket - 891997SupersededOrder 898271 instead
109668Ferrari Heli Coil - 109668Price on requestContact us for price and availability
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
15896221Ferrari Nut - 15896221SupersededOrder 134041 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
139648Ferrari Plastic Oil Cap - 139648Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
158169Ferrari Stud - 158169$11.29Special order, ships in 7-14 days
11500221Ferrari Threaded Stud - 11500221SupersededOrder 11500224 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
