Ferrari 512 TR — Front Headlight Lifting Device (diagram 123)

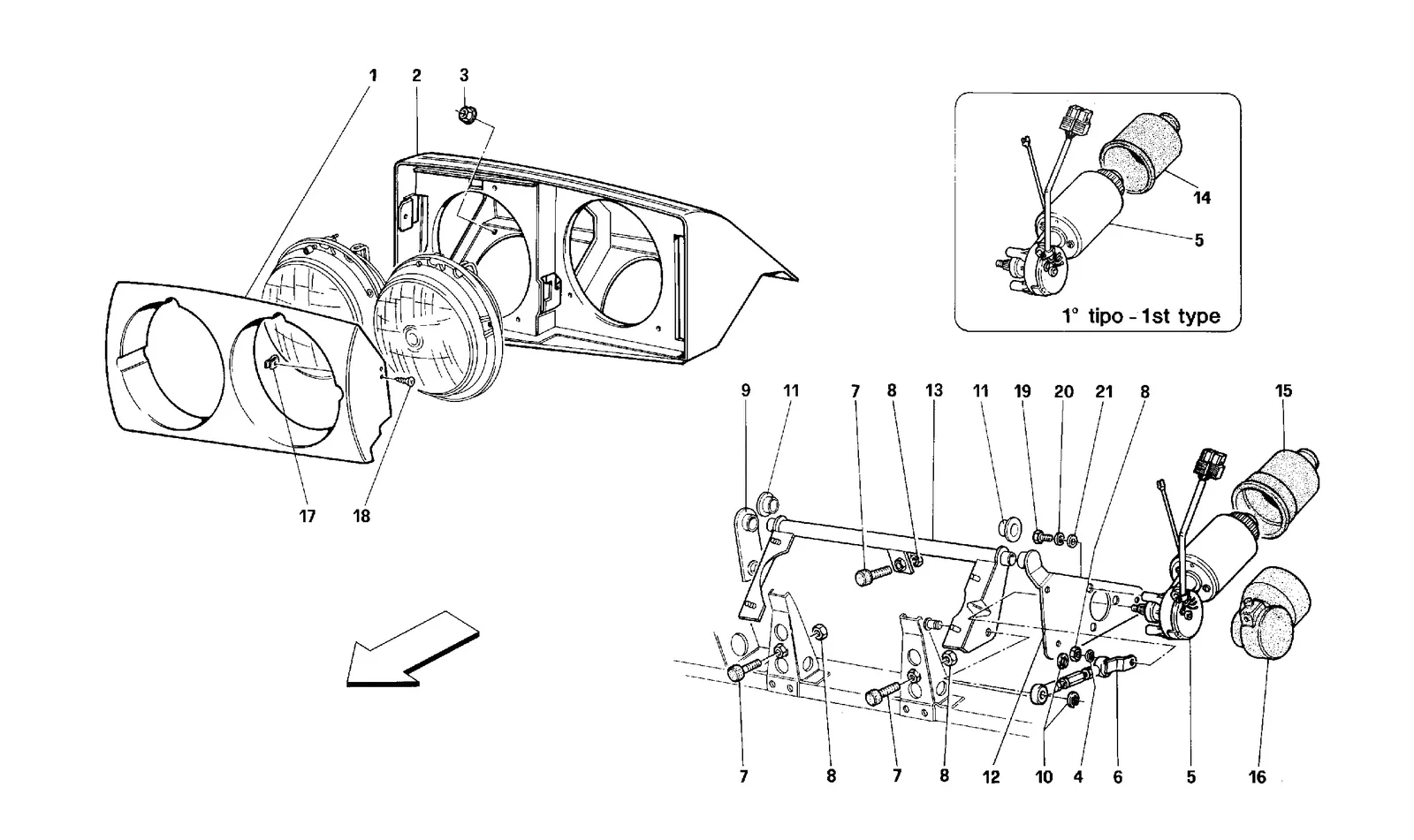

Exploded view of the front headlight lifting device on the Ferrari 512 TR, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 61527300 | Ferrari LH Head Lamp Surround - 61527300 | Price on request | Contact us for price and availability |
| 1 | 61527200 | Ferrari RH Head Lamp Surround - 61527200 | Price on request | Contact us for price and availability |
| 2 | 61527500 | Ferrari LH Head Lamp Housing - 61527500 | Price on request | Contact us for price and availability |
| 2 | 61527400 | Ferrari RH Head Lamp Housing - 61527400 | Price on request | Contact us for price and availability |
| 3 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 4 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 4 | 10615479 | Ferrari Washer - 10615479 | Price on request | Special order, ships in 7-14 days |
| 5 | 149134 | Ferrari RH Head Lamp Lifting Motor - 149134 | Superseded | Order 172534 instead |
| 5 | 149133 | Ferrari LH Head Lamp Lifting Motor - 149133 | Superseded | Order 172535 instead |
| 6 | 61268600 | Ferrari Head Lamp Connecting Rod - 61268600 | $175.70 | Available, ships in 3-6 days |
| 7 | 63346800 | Ferrari Bump Stop - 63346800 | $15.43 | Available, ships in 3-6 days |
| 8 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 9 | 61556100 | Ferrari LH Bracket - 61556100 | Price on request | Contact us for price and availability |
| 9 | 61556000 | Ferrari RH Bracket - 61556000 | Price on request | Contact us for price and availability |
| 10 | 11087876 | Ferrari Circlip - 11087876 | $0.98 | Available, ships in 3-6 days |
| 11 | 61575500 | Ferrari Bush For Bracket - 61575500 | Price on request | Contact us for price and availability |
| 12 | 61531300 | Ferrari LH Head Lamp Motor Support Bracket - 61531300 | Price on request | Contact us for price and availability |
| 12 | 61531200 | Ferrari RH Head Lamp Motor Support Bracket - 61531200 | Price on request | Contact us for price and availability |
| 13 | 61531100 | Ferrari LH Lifting Linkage For Lamp - 61531100 | Price on request | Contact us for price and availability |
| 13 | 61531000 | Ferrari RH Lifting Linkage For Lamp - 61531000 | Price on request | Contact us for price and availability |
| 14 | 149039 | Ferrari Protection - 149039 | $3.39 | Available, ships in 3-6 days |
| 15 | 60331402 | Ferrari Rubber Boot - 60331402 | $51.18 | Available, ships in 3-6 days |
| 16 | 60331204 | Ferrari RH Head Lamp Motor Rubber Cover - 60331204 | Price on request | Contact us for price and availability |
| 16 | 60331303 | Ferrari LH Head Lamp Motor Rubber Cover - 60331303 | Price on request | Contact us for price and availability |
| 17 | 60695800 | Ferrari Screw Clip - 60695800 | $2.13 | Available, ships in 3-6 days |
| 18 | 15914870 | Ferrari Screw - 15914870 | Price on request | Contact us for price and availability |
| 19 | 10902221 | Ferrari Bolt M6 x 16 - 10902221 | $1.92 | Available, ships in 3-6 days |
| 21 | 10519424 | Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424 | $0.06 | Available, ships in 3-6 days |
| 21 | 14496401 | Ferrari Washer - 14496401 | Superseded | Order 10519424 instead |
| 60727600 | Ferrari LH Head Lamp Lift Motor - 60727600 | Superseded | Order 172535 instead | |
| 60727500 | Ferrari RH Head Lamp Lift Motor - 60727500 | Superseded | Order 172534 instead | |
| 172534 | Ferrari Right Headlight Motor - 172534 | $1,100.00 | In stock | |
| 14496424 | Ferrari Washer - 14496424 | Superseded | Order 10519424 instead |
