Ferrari 550 Barchetta — Front Structures And Components (diagram 102)

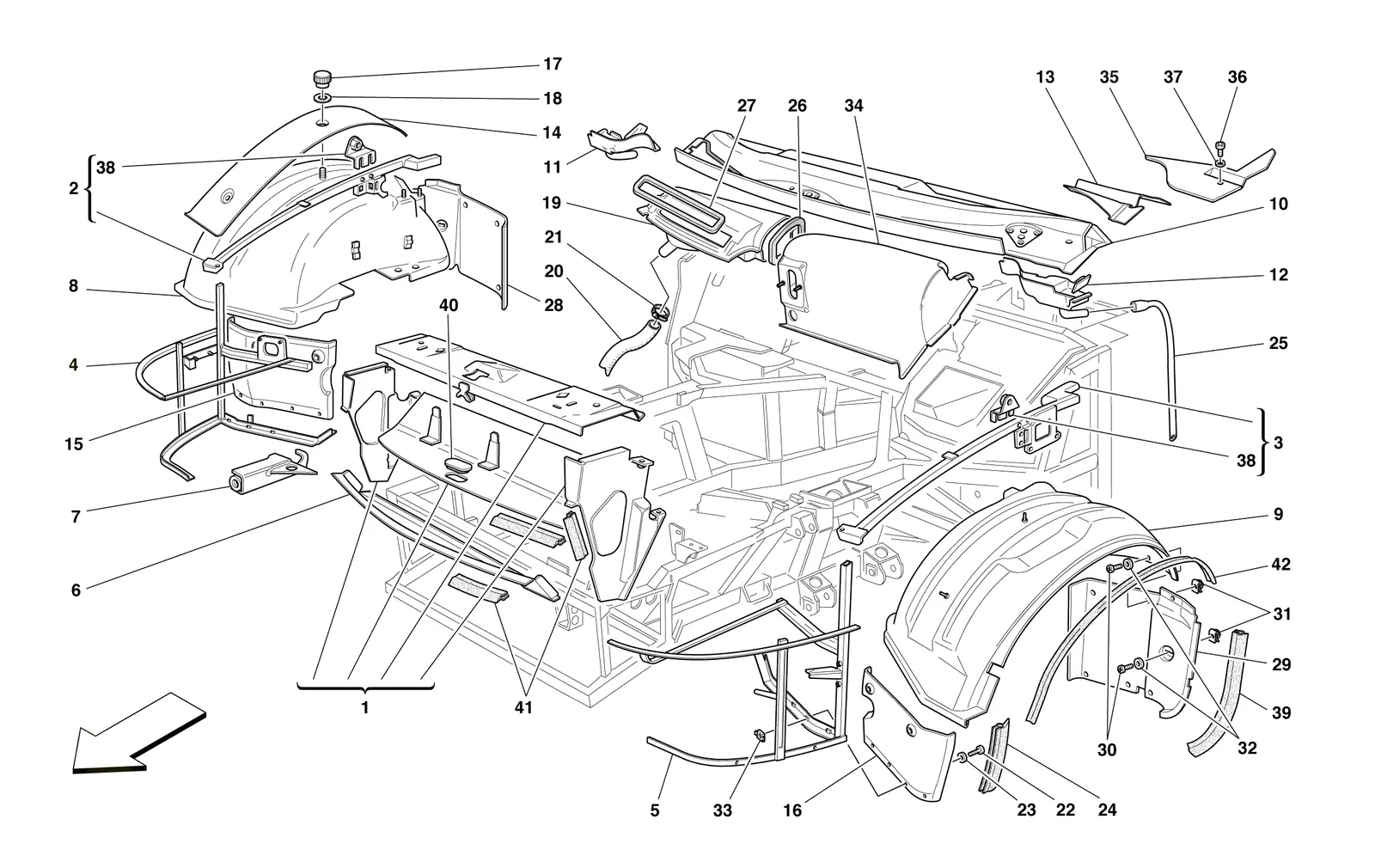

Exploded view of the front structures and components on the Ferrari 550 Barchetta, with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 550 Barchetta Front Structures And Components exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
164716800Ferrari Front Crossmember Complete - 64716800Price on requestContact us for price and availability
264945600Ferrari RH Side Frame LHD - 64945600$2,121.38Special order, ships in 7-14 days
265219500Ferrari RH Side Frame RHD - 65219500Price on requestContact us for price and availability
364945700Ferrari LH Side Frame LHD - 64945700Price on requestContact us for price and availability
365219600Ferrari LH Side Frame RHD - 65219600$2,331.20Available, ships in 3-6 days
465177700Ferrari RH Front Frame - 65177700Price on requestContact us for price and availability
466806400Ferrari RH Front Frame - 66806400Price on requestContact us for price and availability
565177800Ferrari LH Front Frame - 65177800Price on requestContact us for price and availability
566806500Ferrari LH Front Frame - 66806500Price on requestContact us for price and availability
664558400Ferrari Lower Crossmember Panel - 64558400$427.51Available, ships in 3-6 days
764943000Ferrari Front Tow Hook Bracket - 64943000$440.56Special order, ships in 7-14 days
864560200Ferrari RH Front Wheel Arch Panel LHD - 64560200Price on requestContact us for price and availability
865210600Ferrari RH Front Wheel Arch Panel RHD - 65210600Price on requestContact us for price and availability
964560300Ferrari LH Front Wheel Arch Panel LHD - 64560300Price on requestContact us for price and availability
965219400Ferrari LH Front Wheel Arch Panel RHD - 65219400$957.32Special order, ships in 7-14 days
1066488700Ferrari Scuttle Panel - 66488700$168.88Special order, ships in 7-14 days
1066756400Ferrari Scuttle Panel RHD - 66756400$168.88Special order, ships in 7-14 days
1164789400Ferrari RH Front Screen Panel - 64789400$132.15Special order, ships in 7-14 days
1264789500Ferrari LH Front Screen Panel - 64789500$132.15Special order, ships in 7-14 days
1366841200Ferrari LH Scuttle Plate - 66841200$293.71Special order, ships in 7-14 days
1366841100Ferrari RH Scuttle Plate - 66841100$293.71Special order, ships in 7-14 days
1465142100Ferrari Wheel Arch Cover Panel - 65142100$51.37Special order, ships in 7-14 days
1564902400Ferrari RH Front Gravel Guard - 64902400Price on requestContact us for price and availability
1664902500Ferrari LH Front Gravel Guard - 64902500Price on requestContact us for price and availability
1763198900Ferrari 456/550/575 Wheel Arch Nut - 63198900$94.78In stock
1813604115Ferrari Spacer 6.5 -15 x 10 - 13604115$2.80Available, ships in 3-6 days
1963200700Ferrari Air Ducting LHD - 63200700SupersededOrder 67801400 instead
1964281800Ferrari Air Ducting RHD - 64281800$1,841.62Available, ships in 3-6 days
2063200800Ferrari Drain Pipe LHD - 63200800Price on requestContact us for price and availability
2064537300Ferrari Drain Pipe RHD - 64537300$137.04Special order, ships in 7-14 days
2113000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
2210902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
2310519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2465260100Ferrari Wheel Arch Gasket - 65260100Price on requestContact us for price and availability
2565195300Ferrari Water Pipe - 65195300$12.46Special order, ships in 7-14 days
2665192200Ferrari Gasket - 65192200$11.08Special order, ships in 7-14 days
2763201100Ferrari Air Duct Seal - 63201100Price on requestContact us for price and availability
2864560400Ferrari RH Lower Front Wheelhouse - 64560400$694.08Special order, ships in 7-14 days
2964560500Ferrari RH Lower Front Wheelhouse - 64560500$163.17Special order, ships in 7-14 days
3013276477Ferrari Screw PZ M6 x 20 TCIC - 13276477$1.05Available, ships in 3-6 days
3162766300Ferrari Spire Clip M6 - 62766300$1.36Available, ships in 3-6 days
3360659100Ferrari Caged Captive Nut 6mm - 60659100$1.72Available, ships in 3-6 days
3465081800Ferrari AC Protection Panel LHD - 65081800$440.56Special order, ships in 7-14 days
34170688Ferrari AC Cover Panel - 170688$783.26Special order, ships in 7-14 days
3565194200Ferrari LH Lateral Cover - 65194200$28.25Special order, ships in 7-14 days
3565194100Ferrari RH Lateral Cover - 65194100$28.25Special order, ships in 7-14 days
3664460500Ferrari Screw M5 x 0.8 x 10 - 64460500$2.13Available, ships in 3-6 days
3712638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
3865886700Ferrari Bracket - 65886700Price on requestContact us for price and availability
3965747600Ferrari Gasket - 65747600Price on requestContact us for price and availability
4062797700Ferrari Rubber Plug - 62797700$3.95In stock
4163403200Ferrari Rubber Gasket - 63403200Price on requestContact us for price and availability
67801400Ferrari Air Ducting LHD - 67801400$342.66Special order, ships in 7-14 days
65500700Ferrari Air Ducting RHD - 65500700SupersededOrder 64281800 instead
67801500Ferrari Air Ducting RHD - 67801500SupersededOrder 64281800 instead
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
63198800Ferrari Wheel Arch Cover Panel - 63198800SupersededOrder 65142100 instead
