Ferrari 550 Maranello — Timing - Controls (diagram 006)

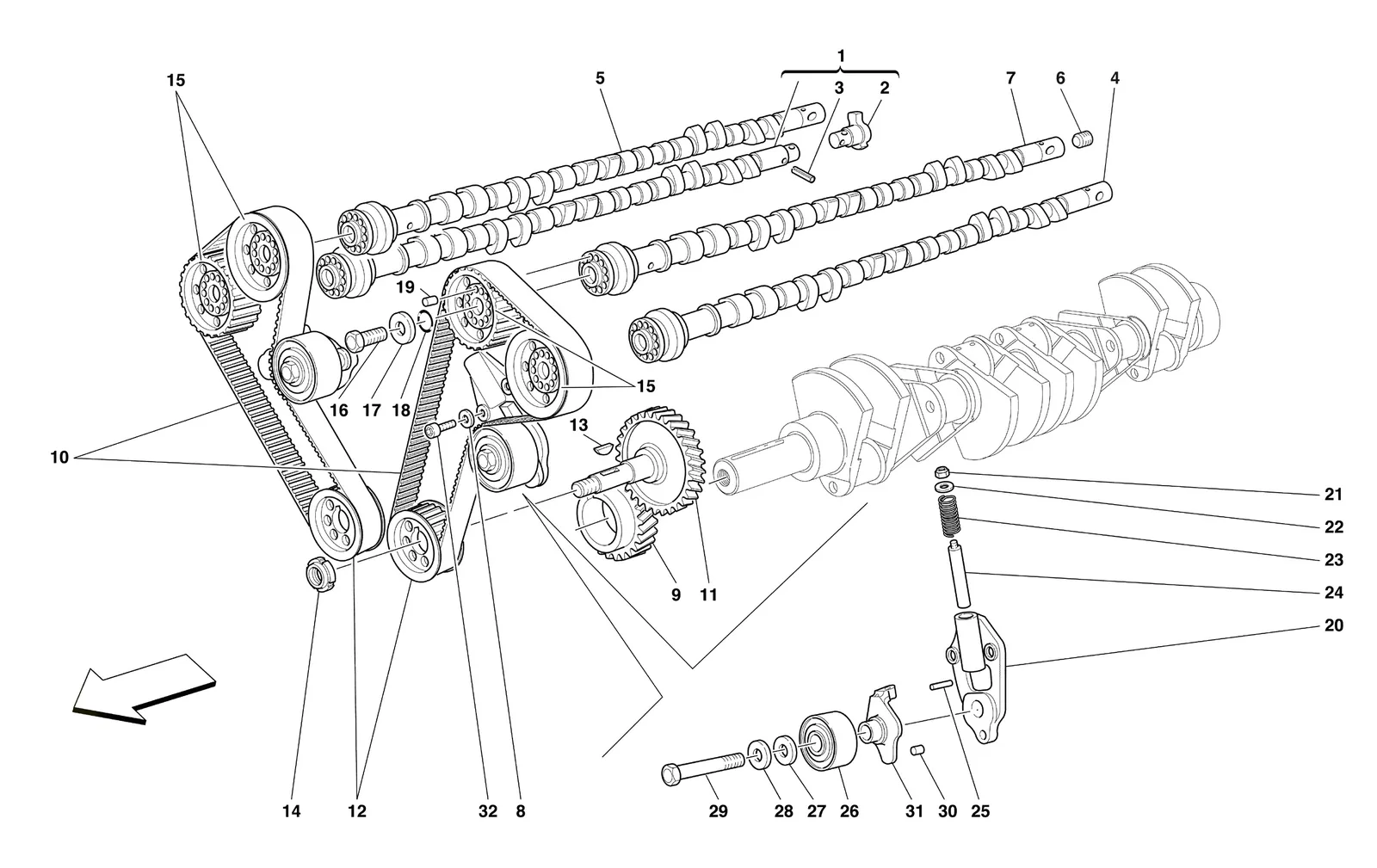

Exploded view of the timing - controls on the Ferrari 550 Maranello, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 550 Maranello Timing - Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1171460Ferrari RH Exhaust Camshaft - 171460$1,472.71Special order, ships in 7-14 days
2171450Ferrari Camshaft Coupling - 171450$542.57Special order, ships in 7-14 days
3149859Ferrari Dowel Pin - 149859$4.33Available, ships in 3-6 days
4168952Ferrari LH Exhaust Camshaft - 168952$1,369.36Special order, ships in 7-14 days
5167556Ferrari RH Inlet Camshaft - 167556$1,343.53Special order, ships in 7-14 days
610269550Ferrari Threaded Plug 14mm - 10269550$6.02Available, ships in 3-6 days
7167558Ferrari LH Inlet Camshaft - 167558$1,343.53Special order, ships in 7-14 days
811193874Ferrari Washer D.8.4-16x1.4 - 11193874$0.12Available, ships in 3-6 days
9168702Ferrari Gear - 168702$335.86Available, ships in 3-6 days
10AW4550000HFerrari Timing Kit - AW4550000H$615.00In stock
10AW4550000Ferrari Timing Kit - AW4550000$522.50In stock
10187744Ferrari Timing Belt - 187744$99.98In stock
10148515Ferrari Cam Drive Belt - 148515SupersededOrder 187744 instead
11168701Ferrari Driven Gear - 168701$620.08Available, ships in 3-6 days
12149928Ferrari Drive Pulley - 149928$416.09Available, ships in 3-6 days
1310206320Ferrari Woodruff Key - 10206320$4.39In stock
14RNT28Ferrari 28mm Ring Nut Socket - RNT28$114.40In stock
14TRCSKFerrari Testarossa Clutch Slave Cylinder Rebuild Kit - TRCSK$105.60In stock
14104919Ferrari Ring Nut - Lower Cam Gear - 104919$12.65In stock
15149927Ferrari Drive Gear - 149927$226.45Available, ships in 3-6 days
15159382Ferrari Drive Gear - 159382SupersededOrder 149927 instead
16146540Ferrari Cam Drive Retaining Bolt - 146540$26.02Available, ships in 3-6 days
17114802Ferrari Washer - 114802$16.22Available, ships in 3-6 days
18114808Ferrari Camshaft Bolt O-Ring - 114808$1.42In stock
19114803Ferrari Dowel - 114803$34.98Available, ships in 3-6 days
20149346Ferrari Belt Tensioner Housing - 149346$709.82Special order, ships in 7-14 days
21102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
22121558Ferrari Washer - 121558$3.70Available, ships in 3-6 days
23121249Ferrari Tensioner Spring - 121249$21.58In stock
24121047Ferrari Timing Tensioner Pin - 121047$16.40In stock
2513933570Ferrari Spring Pin - 13933570$0.44Special order, ships in 7-14 days
2670000933Ferrari Cam Belt Roller Bearing-70000933$215.60In stock
26171057AFerrari Tensioner Bearing-171057$168.99In stock
26PT550/2Ferrari Tensioner Pulley Kit - PT550/2$413.00In stock
26PT550Ferrari Tensioner Pulley - PT550$206.50In stock
26130872Ferrari Cam Belt Tensioner Pulley - 130872SupersededOrder 70000933 instead
27111460Ferrari Spacer - 111460$8.88Available, ships in 3-6 days
28102824Ferrari Washer - 102824$18.35Available, ships in 3-6 days
29149461Ferrari Screw - 149461Price on requestContact us for price and availability
30125717Ferrari Dowel - 125717$6.32Available, ships in 3-6 days
31121045Ferrari Support Plate - 121045$1,811.65Available, ships in 3-6 days
31171060Ferrari Support Plate - 171060$144.38Special order, ships in 7-14 days
3214306424Ferrari Screw M8 x 25mm - 14306424SupersededOrder 14306421 instead
154297Ferrari Drive Gear - 154297SupersededOrder 168702 instead
154298Ferrari Gear - 154298SupersededOrder 168702 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
