Ferrari 550 Maranello — Fuel Supply System (diagram 009)

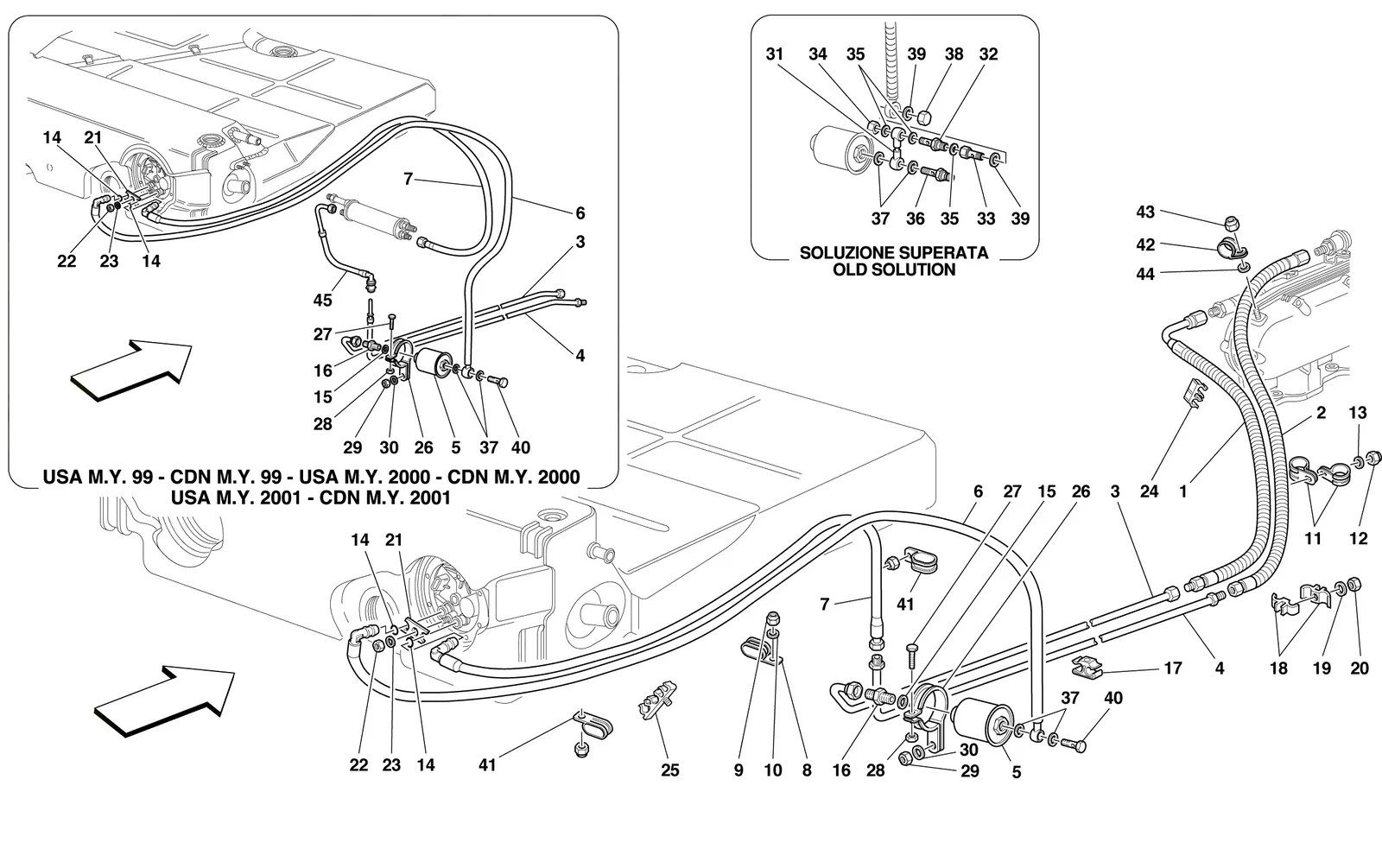

Exploded view of the fuel supply system on the Ferrari 550 Maranello, with 87 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 550 Maranello Fuel Supply System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1178525Ferrari 550 Fuel Pipe - 178525$242.00In stock
1178524Ferrari RH Fuel Delivery Pipe RHD - 178524$636.39Available, ships in 3-6 days
1178523Ferrari LH Fuel Delivery Pipe RHD - 178523$611.91Available, ships in 3-6 days
1166741Ferrari RH Fuel Delivery Pipe LHD - 166741SupersededOrder 178525 instead
1173858Ferrari RH Fuel Delivery Pipe RHD - 173858SupersededOrder 178524 instead
1166742Ferrari LH Fuel Delivery Pipe LHD - 166742SupersededOrder 178522 instead
1173857Ferrari LH Fuel Delivery Pipe RHD - 173857SupersededOrder 178523 instead
1178522Ferrari LH Delivery Pipe LHD - 178522$660.87Special order, ships in 7-14 days
2179164Ferrari 550 Fuel Return Pipe-179164$240.90In stock
2179356Ferrari 550 Fuel Pipe - 179356$361.90In stock
2179165Ferrari LH Fuel Return Pipe LHD - 179165$856.69Special order, ships in 7-14 days
2179162Ferrari LH Fuel Return Pipe RHD - 179162$807.74Special order, ships in 7-14 days
2171452Ferrari RH Fuel Return Pipe LHD - 171452Price on requestContact us for price and availability
2173860Ferrari RH Fuel Return Pipe RHD - 173860SupersededOrder 179356 instead
2171453Ferrari LH Fuel Return Pipe LHD - 171453SupersededOrder 178303 instead
2173859Ferrari LH Fuel Return Pipe RHD - 173859SupersededOrder 179164 instead
3166738Ferrari RH Fuel Delivery Pipe - 166738Price on requestContact us for price and availability
3179366Ferrari RH Fuel Delivery Pipe - 179366$115.02Special order, ships in 7-14 days
3166739Ferrari LH Fuel Delivery Pipe - 166739Price on requestContact us for price and availability
4166740Ferrari RH/LH Fuel Delivery Pipe - 166740$151.74Special order, ships in 7-14 days
4179365Ferrari RH Fuel Return Pipe - 179365$367.14Special order, ships in 7-14 days
4178777Ferrari LH Fuel Return Pipe - 178777$149.29Special order, ships in 7-14 days
5186922Ferrari Fuel Filter - 186922$64.85In stock
5152212Ferrari Fuel Filter - 152212$39.37Available, ships in 3-6 days
6170432Ferrari RH/LH Fuel Rear Delivery Pipe - 170432$440.56Available, ships in 3-6 days
6166736Ferrari RH/LH Fuel Rear Delivery Pipe - 166736SupersededOrder 170432 instead
7170431Ferrari RH/LH Fuel Rear Return Pipe - 170431$195.79Available, ships in 3-6 days
7182726Ferrari RH/LH Fuel Rear Return Pipe - 182726$1,272.82Special order, ships in 7-14 days
7166737Ferrari RH/LH Fuel Rear Return Pipe - 166737SupersededOrder 170431 instead
7178778Ferrari RH/LH Fuel Rear Return Pipe - 178778$1,272.82Special order, ships in 7-14 days
861712500Ferrari P Clip Bracket - 61712500$2.29In stock
8138478Ferrari Bracket P Clip With Sheath - 138478$9.99Special order, ships in 7-14 days
9102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1012643724Ferrari/Maserati Washer - 12643724$0.20In stock
1014499324Ferrari Washer - 14499324SupersededOrder 12643724 instead
1110441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
14127816Ferrari Sealing Ring - 127816$6.00In stock
1510261060Ferrari/Maserati Copper Crush Washer - 10261060$0.26In stock
16109797Ferrari Fuel Union - 109797$69.66Available, ships in 3-6 days
17141699Ferrari Pipe Retaining Clip - 141699$2.63In stock
1862658800Ferrari Clip - 62658800Price on requestContact us for price and availability
21129316Ferrari Plate - 129316Price on requestContact us for price and availability
2214084211Ferrari Nut - 14084211Price on requestContact us for price and availability
2312601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
24140730Ferrari Clip - 140730$0.38Special order, ships in 7-14 days
25156548Ferrari Clip - 156548$32.60Special order, ships in 7-14 days
26152885Ferrari Fuel Filter Bracket - 152885$15.35In stock
2710902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
28102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
29101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
3012646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
31173034Ferrari Fuel Union - 173034$73.41Special order, ships in 7-14 days
32120098Ferrari Fuel Pump Non-Return Check Valve - 120098$108.79In stock
33173037Ferrari Fuel Union - 173037$41.59Special order, ships in 7-14 days
34113976NFerrari Fuel Pump Cap Nut - 113976N$55.92In stock
3410183217Ferrari End Cap Plug - 10183217Price on requestContact us for price and availability
3510298460Ferrari Washer - 10298460$1.10In stock
36171996Ferrari Fuel Union/Valve - 171996$150.09Special order, ships in 7-14 days
3710280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
3810182817Ferrari Nut - 10182817$4.33Special order, ships in 7-14 days
40178719Ferrari Banjo Bolt Union - 178719Price on requestContact us for price and availability
41139512Ferrari P Clip Bracket With Sheath - 139512Price on requestContact us for price and availability
4210441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
45180943Ferrari Fuel Line - 180943$139.49Special order, ships in 7-14 days
45179363Ferrari RH Fuel Tube - 179363$75.86Special order, ships in 7-14 days
45179364Ferrari LH Fuel Tube - 179364$75.86Special order, ships in 7-14 days
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
103403Ferrari Gasket - 103403SupersededOrder 10280060 instead
178303Ferrari LH Return Pipe - 178303$807.74Special order, ships in 7-14 days
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
100501Ferrari Washer - 100501SupersededOrder 10280060 instead
100511Ferrari Washer - 100511SupersededOrder 10280060 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
95108Ferrari Washer - 95108SupersededOrder 10280060 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
