Ferrari 550 Maranello — Battery (diagram 054)

Exploded view of the battery on the Ferrari 550 Maranello, with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

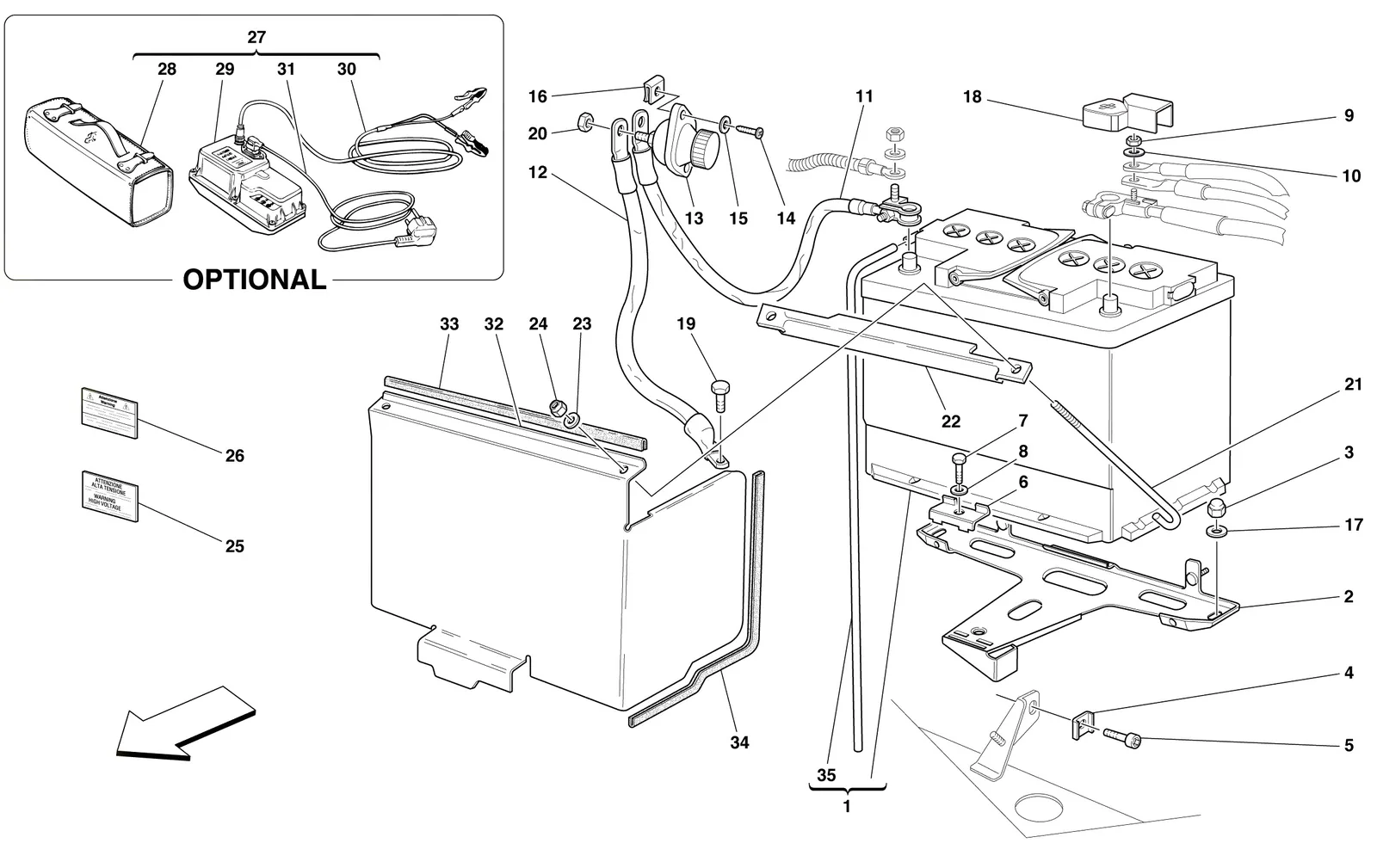

Ferrari 550 Maranello Battery exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
161933900Ferrari Battery 12V-70AH-420A - 61933900SupersededOrder 180055 instead
1156575Ferrari Battery 12V-70AH-420A RHD - 156575Price on requestContact us for price and availability
1180087Ferrari Battery 12V-74AH-400A LHD - 180087SupersededOrder 180055 instead
1190000Ferrari Battery 12V-70AH-640A RHD - 190000Price on requestSpecial order, ships in 7-14 days
2154320Ferrari Battery Support Plate LHD - 154320$230.06Special order, ships in 7-14 days
2172556Ferrari Battery Support Plate RHD - 172556$205.58Special order, ships in 7-14 days
2171918Ferrari Battery Support Plate LHD - 171918$205.58Special order, ships in 7-14 days
3150595Ferrari/Maserati Brass Domed Nut - 150595$1.86In stock
4155599Ferrari Bracket - 155599$4.37Special order, ships in 7-14 days
514306224Ferrari Screw M8 x 16 - 14306224$0.38Available, ships in 3-6 days
6154324Ferrari Bracket - 154324$87.82Special order, ships in 7-14 days
716043724Ferrari Screw - 16043724$0.35Available, ships in 3-6 days
814499421Ferrari Washer - 14499421$0.38Available, ships in 3-6 days
9101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
1012638524Ferrari Flat Washer 8.15x15x1.5 - 12638524$0.12Available, ships in 3-6 days
11167502Ferrari Battery Cable - 167502Price on requestContact us for price and availability
11183651Ferrari Battery Cable LHD - 183651$115.02Special order, ships in 7-14 days
12167501Ferrari Battery Cable - 167501Price on requestContact us for price and availability
12183650Ferrari Battery Cable - 183650$110.13Special order, ships in 7-14 days
13139607Ferrari Battery Master Switch - 139607Price on requestContact us for price and availability
1415688275Ferrari Screw - 15688275Price on requestContact us for price and availability
1512637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
1661067800Ferrari Spire Clip - 61067800Price on requestContact us for price and availability
1712646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
18144727Ferrari Battery Protection Cap - 144727$82.81Available, ships in 3-6 days
18144727/AFerrari Battery Protection Cap - 144727/A$153.64Available, ships in 3-6 days
1916296421Ferrari Screw - 16296421Price on requestContact us for price and availability
20102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
21171904Ferrari Battery Tie Rod - 171904SupersededOrder 189130 instead
21189130Ferrari Battery Tie Rod - 189130$115.02Special order, ships in 7-14 days
22171903Ferrari Battery Clamp - 171903Price on requestContact us for price and availability
2310519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2314496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
24102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
25113404Ferrari High Voltage Warning Plate - 113404$7.65In stock
26184205Ferrari Battery Exclusion Plate - 184205Price on requestContact us for price and availability
2770000904Ferrari Battery Charge Kit 230V - 70000904Price on requestContact us for price and availability
2770000905Ferrari Battery Charge Kit 110V - 70000905Price on requestContact us for price and availability
2770000909Ferrari Battery Charge Kit - 70000909Price on requestContact us for price and availability
2770000906Ferrari Battery Charge Kit 230V - 70000906Price on requestContact us for price and availability
2865699200Ferrari Case For Charger - 65699200Price on requestContact us for price and availability
29177791Ferrari Battery Charger 230V - 177791$1,117.46Available, ships in 3-6 days
29177792Ferrari Battery Charger 110V - 177792$3,613.35Special order, ships in 7-14 days
30177793Ferrari Power Cable With Croc Clips - 177793Price on requestContact us for price and availability
31177794Ferrari Power Cable - 177794$46.48Special order, ships in 7-14 days
31177795Ferrari Power Cable - 177795$36.69Special order, ships in 7-14 days
31178294Ferrari Power Cable - 178294$112.57Special order, ships in 7-14 days
31177796Ferrari Power Cable - 177796$73.41Special order, ships in 7-14 days
32178884Ferrari Battery Heat Shield LHD - 178884Price on requestContact us for price and availability
32188068Ferrari Battery Heat Shield LHD - 188068$110.13Available, ships in 3-6 days
33179906Ferrari Seal - 179906Price on requestContact us for price and availability
34179907Ferrari Seal - 179907Price on requestContact us for price and availability
35180056Ferrari Tube For Battery - 180056Price on requestContact us for price and availability
118060Ferrari Battery 12V 66AH 300A - 118060SupersededOrder 180055 instead
157496Ferrari Battery 12V-70Ah-400A - 157496SupersededOrder 180055 instead
188066Ferrari Battery 12V-74Ah 400A LHD - 188066SupersededOrder 180055 instead
174802Ferrari Battery 12V-80Ah 450A LHD - 174802SupersededOrder 180055 instead
175803Ferrari Battery 12V-80Ah 450A RHD - 175803Price on requestContact us for price and availability
180055Ferrari Battery 74AH - 180055$516.73Special order, ships in 7-14 days
116752Ferrari Battery Master Switch - 116752Price on requestContact us for price and availability
123677Ferrari Battery Master Switch - 123677Price on requestContact us for price and availability
177449Ferrari Battery Protection Cap - 177449Price on requestContact us for price and availability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
16043721Ferrari Bolt - 16043721Price on requestContact us for price and availability
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
15688208Ferrari Screw - 15688208Price on requestContact us for price and availability
15688278Ferrari Screw - 15688278Price on requestContact us for price and availability
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
