Ferrari 550 Maranello — Frame And Stuctures (diagram 101)

Exploded view of the frame and stuctures on the Ferrari 550 Maranello, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

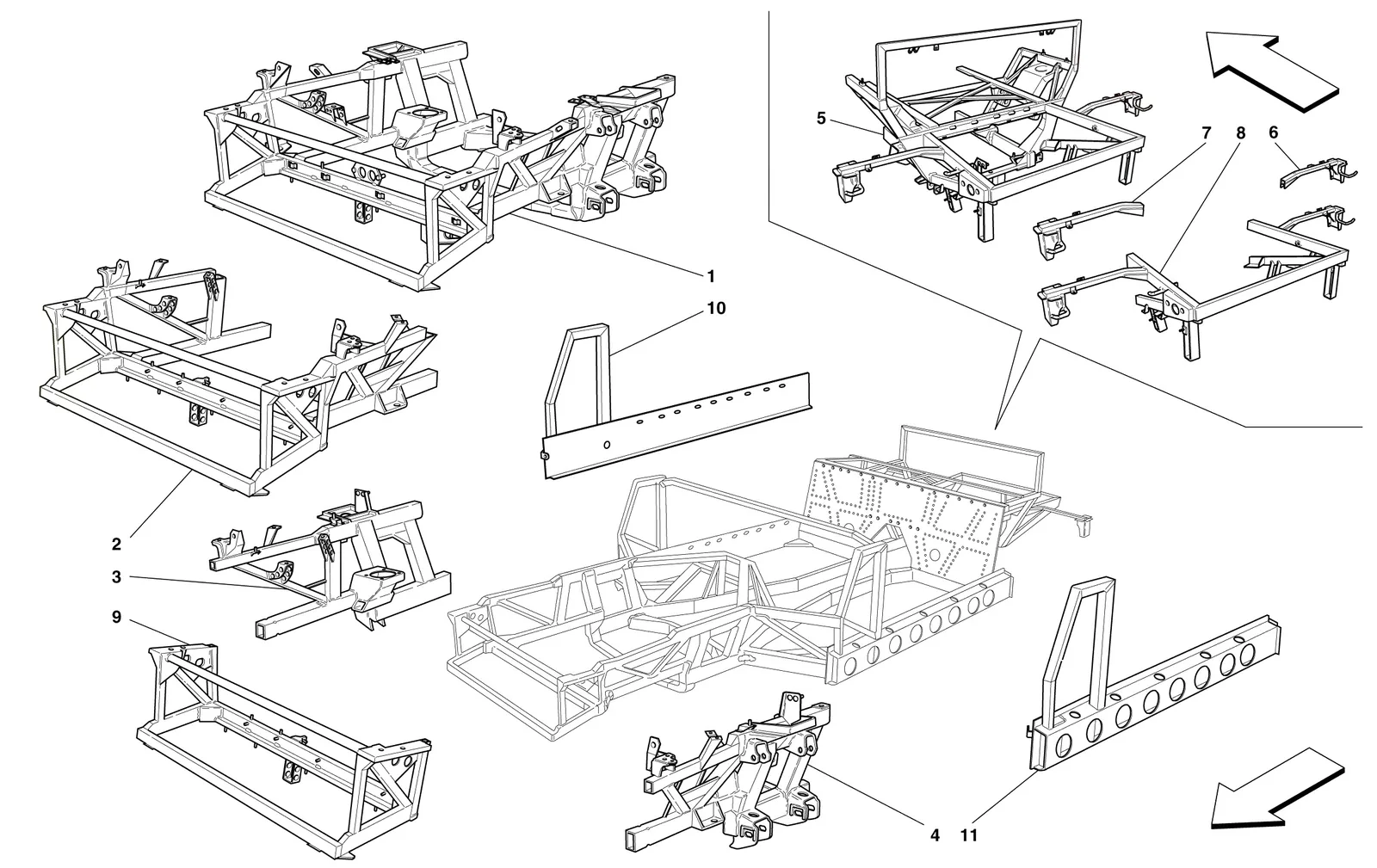

Ferrari 550 Maranello Frame And Stuctures exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
170000136Ferrari Front Frame Complete LHD - 70000136Price on requestContact us for price and availability
170000138Ferrari Front Frame Complete RHD - 70000138Price on requestContact us for price and availability
270000137Ferrari Front Half Frame Complete LHD - 70000137Price on requestContact us for price and availability
270000139Ferrari Front Half Frame Complete RHD - 70000139Price on requestContact us for price and availability
370000147Ferrari RH Front Side Frame Complete - 70000147Price on requestContact us for price and availability
470000148Ferrari LH Front Side Frame Complete - 70000148Price on requestContact us for price and availability
570000140Ferrari Rear Frame Complete LHD - 70000140$8,268.79Contact us to order
570000168Ferrari Rear Frame Complete LHD - 70000168$12,830.97Contact us to order
570000142Ferrari Rear Frame Complete RHD - 70000142Price on requestContact us for price and availability
570000167Ferrari Rear Frame Complete - 70000167Price on requestContact us for price and availability
670000163Ferrari RH Rear Crossmember - 70000163Price on requestContact us for price and availability
770000164Ferrari LH Rear Crossmember - 70000164Price on requestContact us for price and availability
870000141Ferrari Rear Frame - 70000141Price on requestContact us for price and availability
970000172Ferrari Front Part Frame LHD - 70000172Price on requestContact us for price and availability
970000173Ferrari Front Part Frame RHD - 70000173Price on requestContact us for price and availability
1070000178Ferrari RH Side Frame - 70000178Price on requestContact us for price and availability
1170000179Ferrari LH Side Frame - 70000179Price on requestContact us for price and availability

All 550 Maranello diagrams
