Ferrari 575M Maranello — Crankcase - Covers (diagram 002)

Exploded view of the crankcase - covers on the Ferrari 575M Maranello, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

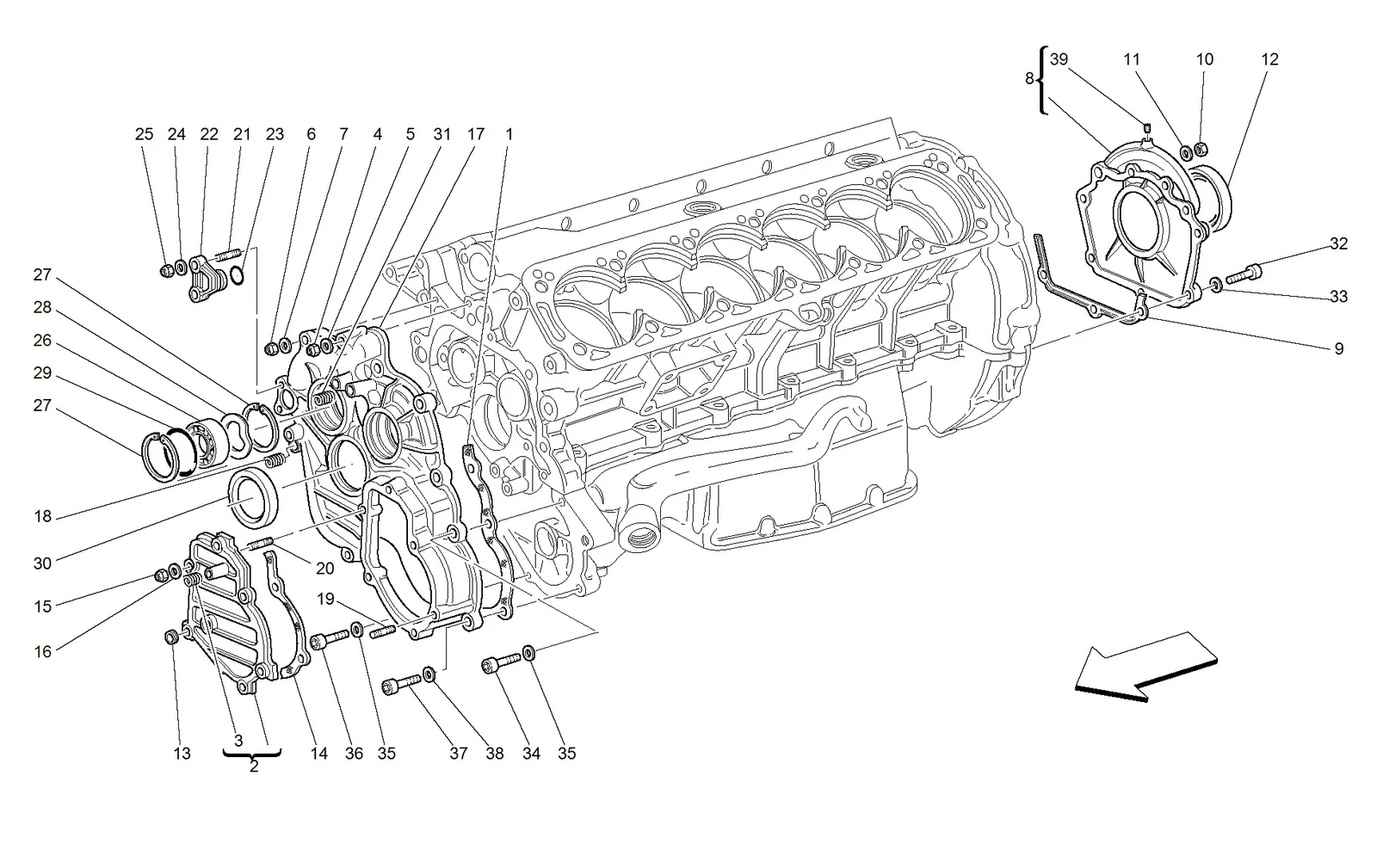

Ferrari 575M Maranello Crankcase - Covers exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1154527Ferrari Gasket Large Front Cover - 154527$71.98Available, ships in 3-6 days
2157120Ferrari Small Front Cover - 157120$246.52Available, ships in 3-6 days
313525570Ferrari Heli-Coil - 13525570Price on requestContact us for price and availability
4101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
512601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
6102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
712601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
8141343Ferrari Rear Engine Cover - 141343$682.14Available, ships in 3-6 days
9141291Ferrari Rear Crankcase Cover Gasket - 141291$53.92In stock
1015896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
1112620474Ferrari Wavy Washer - 12620474$0.12Available, ships in 3-6 days
12200323Ferrari Rear Crankshaft Seal - 200323$43.13In stock
12163989Ferrari Rear Main Crankshaft Seal - 163989SupersededOrder 200323 instead
1310269550Ferrari Threaded Plug 14mm - 10269550$6.02Available, ships in 3-6 days
14157121Ferrari Front Crankcase Cover Gasket - 157121$19.03In stock
17157119Ferrari Front Cover - 157119Price on requestContact us for price and availability
1813525470Ferrari Heli Coil - 13525470$1.05Available, ships in 3-6 days
1913541024Ferrari Stud - 13541024$0.69Available, ships in 3-6 days
2013540824Ferrari Stud - 13540824Price on requestContact us for price and availability
22151159Ferrari Plug - 151159$56.27Special order, ships in 7-14 days
23109724Ferrari O-Ring - 109724$2.48In stock
26170787Ferrari Cam Drive Bearing - 170787$163.90In stock
2711060576Ferrari Snap Ring - 11060576$2.70Available, ships in 3-6 days
28133377Ferrari Timing Gear Conic Washer - 133377$18.40In stock
29136140Ferrari O-Ring Gasket - 136140$2.15In stock
30134714Ferrari Camshaft Seal - 134714$21.98In stock
3214305424Ferrari Allen Screw M6 x 25mm - 14305424$0.12Available, ships in 3-6 days
3311197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
3614306024Ferrari Screw 50mm - 14306024Price on requestContact us for price and availability
3714306524Ferrari Screw M8 x 30mm - 14306524$0.65Available, ships in 3-6 days
3811193874Ferrari Washer D.8.4-16x1.4 - 11193874$0.12Available, ships in 3-6 days
3910275550Ferrari Plug - 10275550Price on requestContact us for price and availability
156828Ferrari Allen Screw - 156828Price on requestContact us for price and availability
109668Ferrari Heli Coil - 109668Price on requestContact us for price and availability
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
105055Ferrari Oil Seal - 105055SupersededOrder 134714 instead
106244Ferrari Oil Seal - 106244SupersededOrder 200323 instead
110314Ferrari Oil Seal - 110314SupersededOrder 134714 instead
40000230Ferrari Oil Seal - 40000230SupersededOrder 200323 instead
136527Ferrari Rear Main Oil Seal - 136527SupersededOrder 200323 instead
14306521Ferrari Screw - 14306521SupersededOrder 14306524 instead
14306426Ferrari Seat Retaining Bolt - 14306426SupersededOrder 14306524 instead
13540821Ferrari Stud - 13540821Price on requestContact us for price and availability
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 575M Maranello diagrams
