Ferrari 575M Maranello — Oil Tank For Servosteering And Serpentine (diagram 050)

Exploded view of the oil tank for servosteering and serpentine on the Ferrari 575M Maranello, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

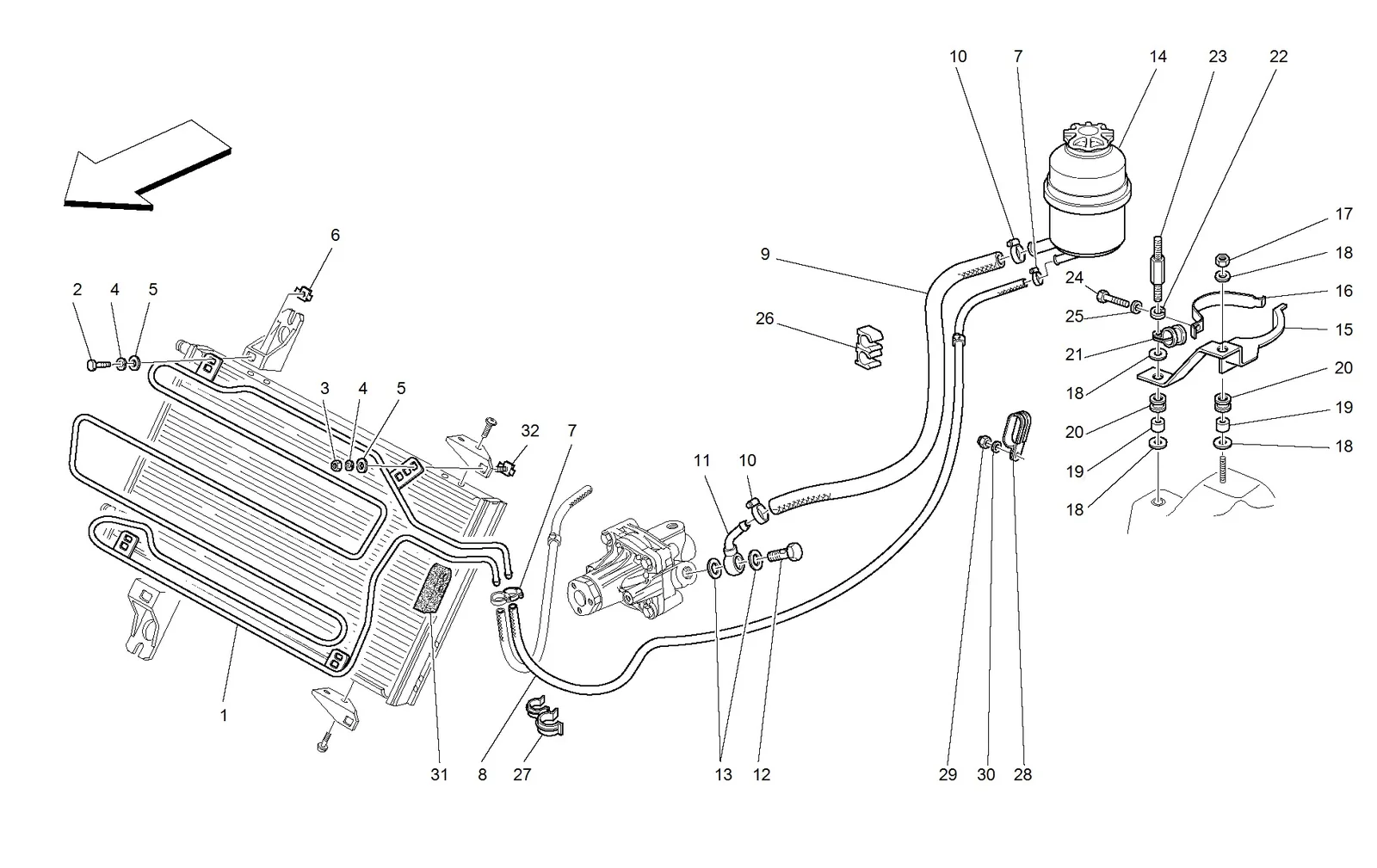

Ferrari 575M Maranello Oil Tank For Servosteering And Serpentine exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1177360Ferrari PAS oil cooler - 177360$685.34Available, ships in 3-6 days
210902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
315896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
4127494Ferrari Lock Washer - 127494$0.50In stock
512643724Ferrari/Maserati Washer - 12643724$0.20In stock
660659100Ferrari Caged Captive Nut 6mm - 60659100$1.72Available, ships in 3-6 days
7161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
8179377Ferrari Pipe - 179377$318.19Available, ships in 3-6 days
8186912Ferrari Pipe - 186912$489.54Special order, ships in 7-14 days
9179381Ferrari Power Steering Hose - Pump to Reservoir - 179381$75.90In stock
9193216Ferrari Hose - 193216$139.49Special order, ships in 7-14 days
1013000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
11155449Ferrari Union - 155449$685.34Special order, ships in 7-14 days
12155448Ferrari Banjo Bolt - 155448$342.66Special order, ships in 7-14 days
1310261560Copper Washer-10261560$0.83In stock
14170877Ferrari Oil Tank For Servosteering - 170877$123.09Available, ships in 3-6 days
15173586Ferrari Bracket - 173586$173.76Special order, ships in 7-14 days
15183077Ferrari Bracket - 183077$127.27Special order, ships in 7-14 days
16171746Ferrari Tank Bracket - 171746$78.95Special order, ships in 7-14 days
16173587Ferrari Clamp RHD - 173587$137.04Special order, ships in 7-14 days
17102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
19103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
20103549Ferrari Grommet - 103549$2.80In stock
2110441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
23189070Ferrari Stud - 189070$225.17Special order, ships in 7-14 days
2410902124Ferrari Screw - 10902124$0.29In stock
2512601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
26190219Ferrari Clip - 190219$9.99Available, ships in 3-6 days
26172847Ferrari Clip - 172847$0.84Special order, ships in 7-14 days
27171358Ferrari Clip - 171358$0.37Available, ships in 3-6 days
27140730Ferrari Clip - 140730$0.38Special order, ships in 7-14 days
2861712500Ferrari P Clip Bracket - 61712500$2.29In stock
3012639724Ferrari Washer - 12639724$0.08Available, ships in 3-6 days
3165141300Ferrari Seal - 65141300Price on requestContact us for price and availability
3214662495Ferrari Captive Bolt M6 x 12 SP.1 - 14662495$0.82Available, ships in 3-6 days
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
178052Ferrari Clip - 178052$3.26Available, ships in 3-6 days
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 575M Maranello diagrams
