Ferrari 575M Maranello — Tyres Pressure Control System -Not For J- (diagram 058)

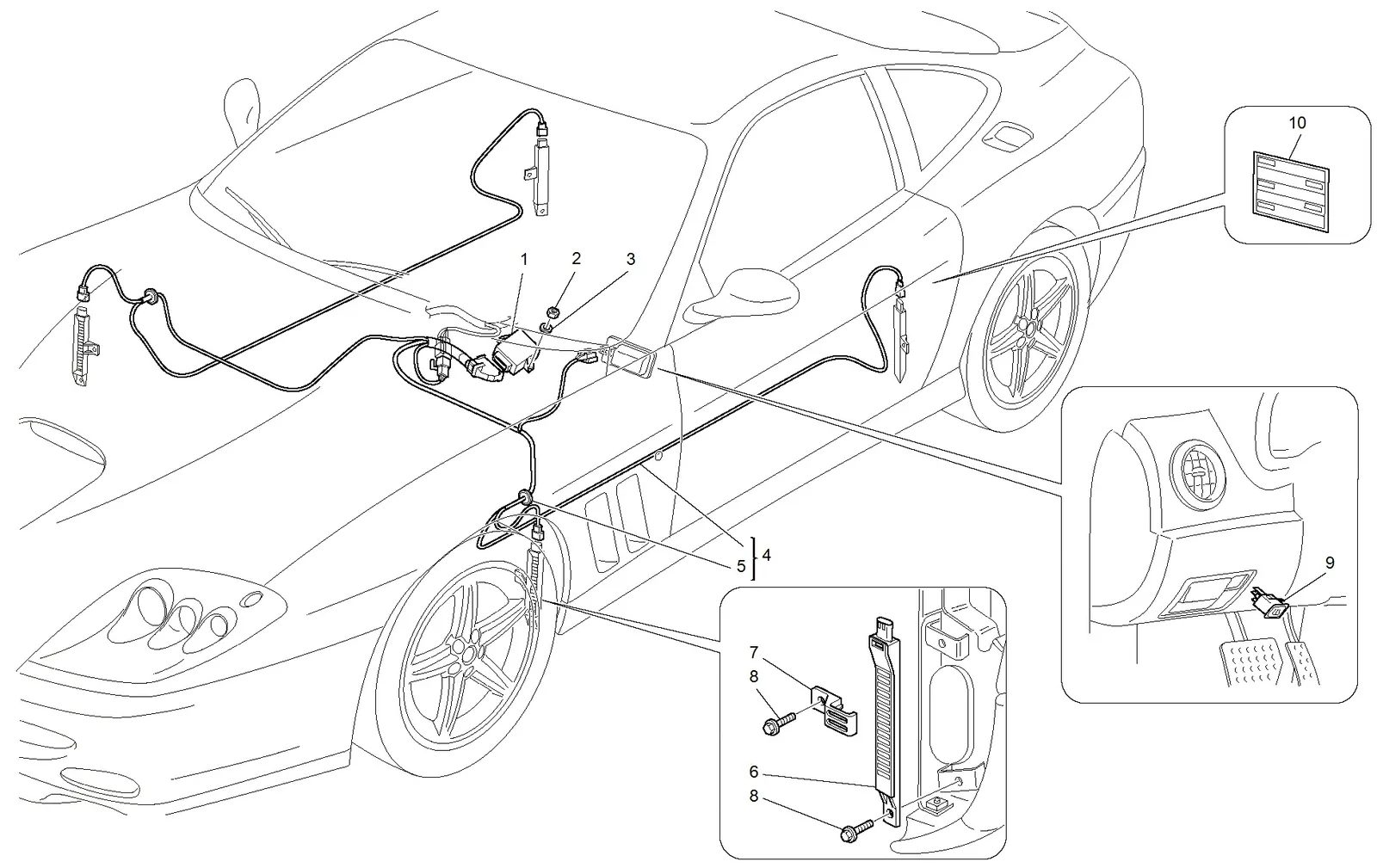

Exploded view of the tyres pressure control system -not for j- on the Ferrari 575M Maranello, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 211762 | Ferrari Tyre Pressure Control Ecu - 211762 | $881.17 | Available, ships in 3-6 days |
| 1 | 211763 | Ferrari Tyre Pressure Control Ecu - 211763 | $930.12 | Special order, ships in 7-14 days |
| 1 | 185183 | Ferrari Tyre Pressure Control Ecu - 185183 | Superseded | Order 211762 instead |
| 1 | 199768 | Ferrari Tyre Pressure Control Ecu - 199768 | Superseded | Order 211762 instead |
| 1 | 207778 | Ferrari Tyre Pressure Control Ecu - 207778 | Superseded | Order 211762 instead |
| 1 | 185332 | Ferrari Tyre Pressure Control Ecu - 185332 | Superseded | Order 211763 instead |
| 1 | 199769 | Ferrari Tyre Pressure Control Ecu - 199769 | Superseded | Order 211763 instead |
| 1 | 207779 | Ferrari Tyre Pressure Control Ecu - 207779 | Superseded | Order 211763 instead |
| 2 | 169180 | Ferrari Nyloc Nut M5 x 6.3 - 169180 | $0.31 | Available, ships in 3-6 days |
| 3 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 4 | 200727 | Ferrari Tyre Presure Control Cables LHD - 200727 | Price on request | Contact us for price and availability |
| 4 | 200726 | Ferrari Tyre Presure Control Cables RHD - 200726 | $758.79 | Special order, ships in 7-14 days |
| 4 | 185185 | Ferrari Tyre Presure Control Cables LHD - 185185 | Price on request | Contact us for price and availability |
| 4 | 189729 | Ferrari Tyre Presure Control Cables RHD - 189729 | Price on request | Contact us for price and availability |
| 5 | 185188 | Ferrari Cable Grommet - 185188 | $5.00 | Special order, ships in 7-14 days |
| 6 | 185184 | Ferrari Tyre Pressure Control Antenna - 185184 | $71.78 | Available, ships in 3-6 days |
| 6 | 195588 | Ferrari Tyre Pressure Control Antenna - 195588 | Price on request | Contact us for price and availability |
| 6 | 185333 | Ferrari Tyre Pressure Control Antenna - 185333 | Price on request | Contact us for price and availability |
| 7 | 187504 | Ferrari Antenna Clip - 187504 | Price on request | Contact us for price and availability |
| 8 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 9 | 184615 | Ferrari Tyre Pressure Gauge Switch - 184615 | Superseded | Order 208848 instead |
| 9 | 195271 | Ferrari Dummy Switch - 195271 | $112.57 | Special order, ships in 7-14 days |
| 10 | 194621 | Ferrari Tyre Pressure Warning Label - 194621 | $36.86 | Special order, ships in 7-14 days |
| 10 | 218182 | Ferrari Tyre Pressure Warning Label - 218182 | $110.61 | Special order, ships in 7-14 days |
| 12574115 | Ferrari Nut - 12574115 | Superseded | Order 169180 instead | |
| 12577811 | Ferrari Nut - 12577811 | Superseded | Order 169180 instead | |
| 12574111 | Ferrari Nyloc Nut - 12574111 | Superseded | Order 169180 instead | |
| 12574121 | Ferrari Nyloc Nut White - 12574121 | Superseded | Order 169180 instead | |
| 208848 | Ferrari Tyre Gauge Switch - 208848 | $110.13 | Special order, ships in 7-14 days |
