Ferrari 575M Maranello — Frame And Structures (diagram 101)

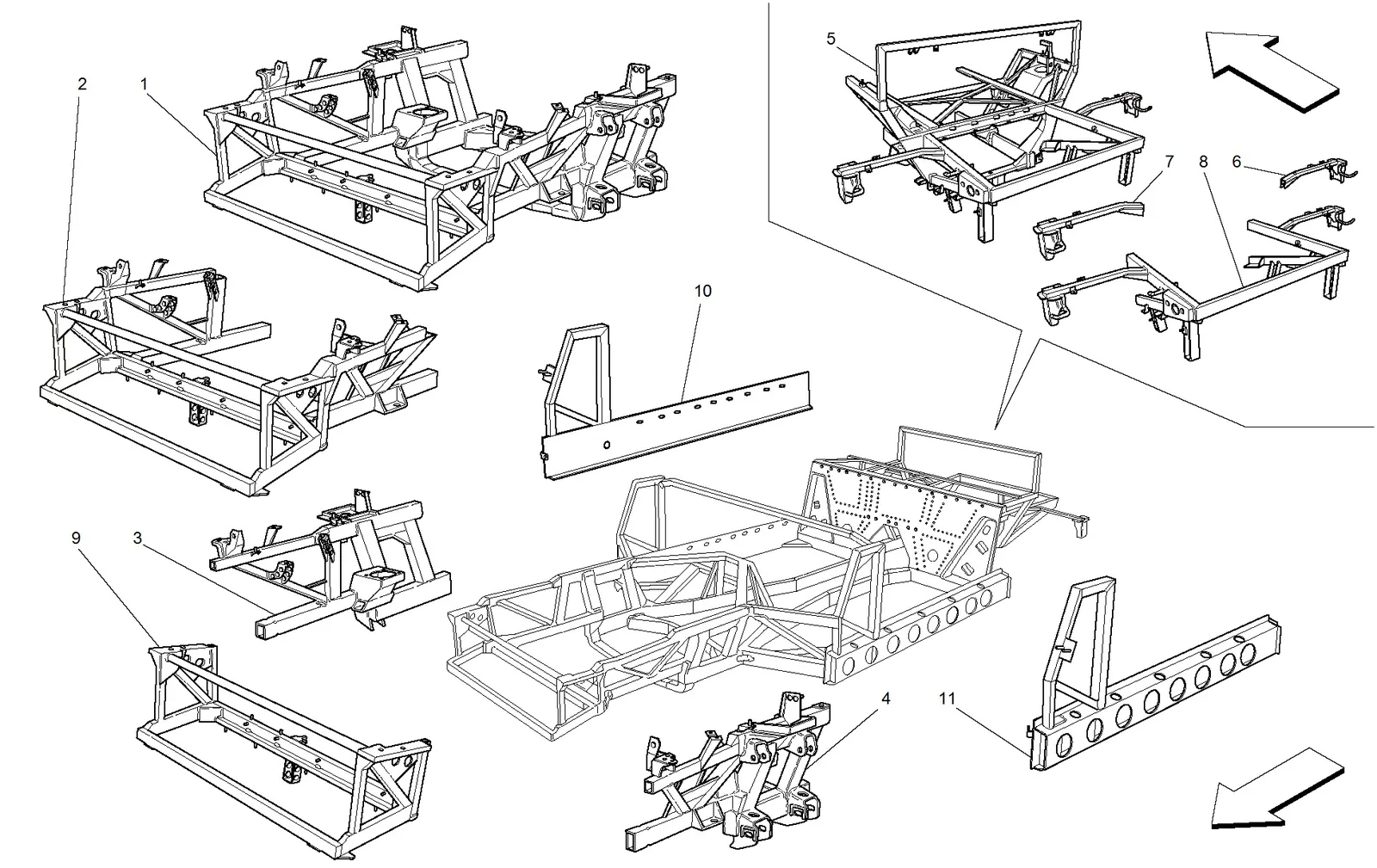

Exploded view of the frame and structures on the Ferrari 575M Maranello, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 575M Maranello Frame And Structures exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
170000155Ferrari Front Frame Complete LHD - 70000155Price on requestContact us for price and availability
170000157Ferrari Front Frame Complete RHD - 70000157$25,217.83Contact us to order
270000156Ferrari Front Half Frame Complete LHD - 70000156Price on requestContact us for price and availability
270000158Ferrari Front Half Frame Complete RHD - 70000158Price on requestContact us for price and availability
370000162Ferrari RH Front Side Frame - 70000162Price on requestContact us for price and availability
470000160Ferrari LH Front Side Frame - 70000160Price on requestContact us for price and availability
570000169Ferrari Rear Frame Complete LHD - 70000169Price on requestContact us for price and availability
570000171Ferrari Rear Frame Complete - 70000171$12,830.97Contact us to order
570000170Ferrari Rear Frame Complete RHD - 70000170Price on requestContact us for price and availability
670000163Ferrari RH Rear Crossmember - 70000163Price on requestContact us for price and availability
770000164Ferrari LH Rear Crossmember - 70000164Price on requestContact us for price and availability
870000141Ferrari Rear Frame - 70000141Price on requestContact us for price and availability
970000176Ferrari Front Frame LHD - 70000176Price on requestContact us for price and availability
970000177Ferrari Front Frame RHD - 70000177Price on requestContact us for price and availability
1070000182Ferrari RH Side Spar - 70000182Price on requestContact us for price and availability
1170000183Ferrari LH Side Spar - 70000183Price on requestContact us for price and availability
