Ferrari 575M Maranello — Engine Compartment Fire-Proof Insulations -Valid For Gd- (diagram 109)

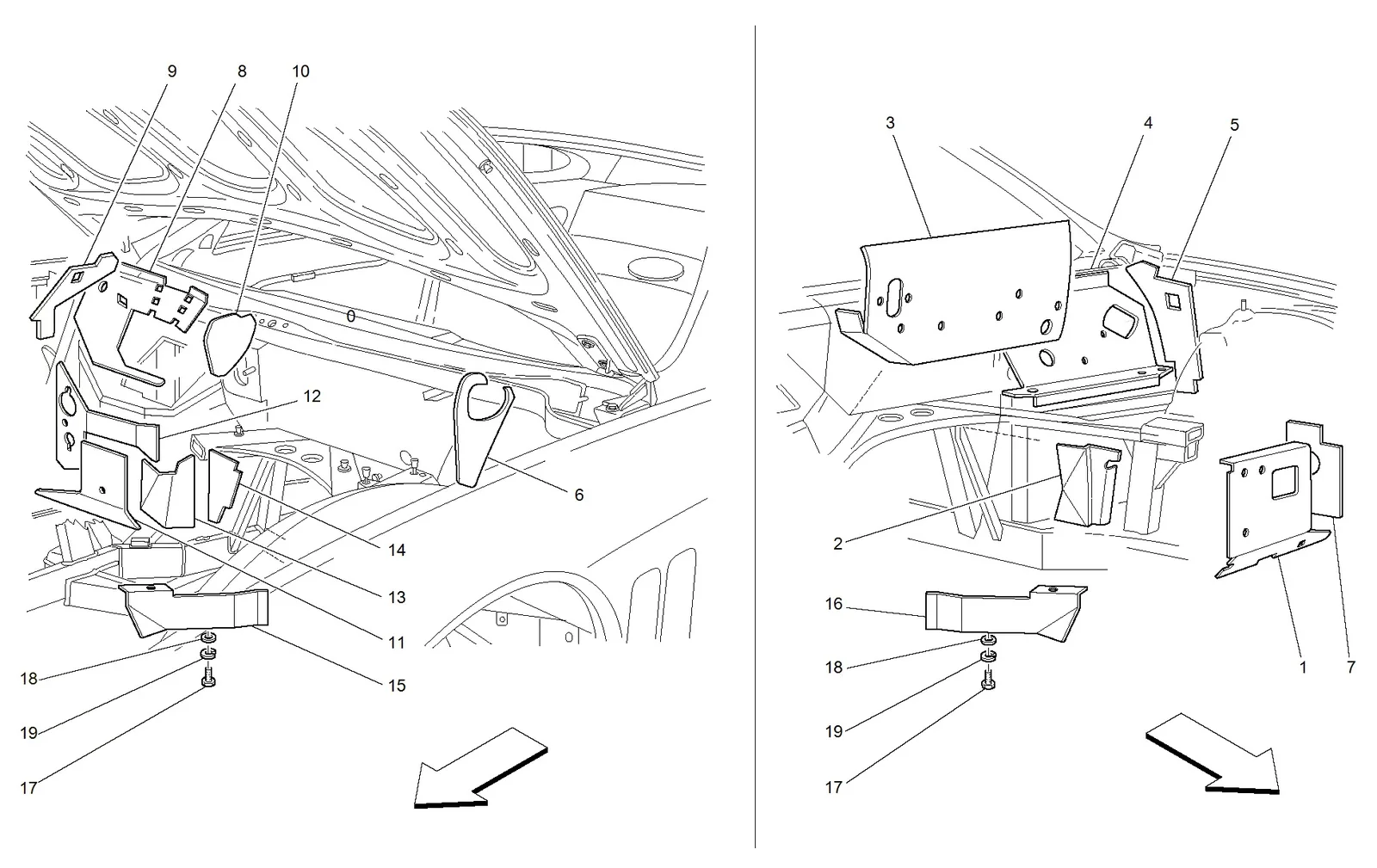

Exploded view of the engine compartment fire-proof insulations -valid for gd- on the Ferrari 575M Maranello, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 67086900 | Ferrari LH Fire-Proof Lower Front Insulation - 67086900 | Price on request | Contact us for price and availability |
| 2 | 67087200 | Ferrari LH Tunnel Lateral Insulation - 67087200 | Price on request | Contact us for price and availability |
| 3 | 67085900 | Ferrari Outer Wall Central Insulation - 67085900 | Price on request | Contact us for price and availability |
| 4 | 67086800 | Ferrari LH Upper Front Anti-Heat Insulation - 67086800 | Price on request | Contact us for price and availability |
| 5 | 67086700 | Ferrari LH Outer Front Fire-Proof Insulation - 67086700 | Price on request | Contact us for price and availability |
| 6 | 67086000 | Ferrari LH Outer Fire-Proof Insulation For AC Unit - 67086000 | Price on request | Contact us for price and availability |
| 7 | 67087000 | Ferrari LH Lateral Fire-Proof Insulation - 67087000 | Price on request | Contact us for price and availability |
| 8 | 67086200 | Ferrari RH Upper Fire-Proof Insulation - 67086200 | Price on request | Contact us for price and availability |
| 9 | 67086600 | Ferrari RH Outer Front Fire-Proof Insulation - 67086600 | Price on request | Contact us for price and availability |
| 10 | 67086100 | Ferrari RH AC Unit Insulation - 67086100 | Price on request | Contact us for price and availability |
| 11 | 67086400 | Ferrari RH Lower Front Fire-Proof Insulation - 67086400 | Price on request | Contact us for price and availability |
| 12 | 67086300 | Ferrari RH Upper Front Fire-Proof Insulation - 67086300 | Price on request | Contact us for price and availability |
| 13 | 67086500 | Ferrari RH Fire-Proof Lower Lateral Insulation - 67086500 | Price on request | Contact us for price and availability |
| 14 | 67087100 | Ferrari RH Tunnel Lateral Insulation - 67087100 | Price on request | Contact us for price and availability |
| 15 | 66084300 | Ferrari Insulation - 66084300 | $166.42 | Special order, ships in 7-14 days |
| 16 | 66084400 | Ferrari Insulation - 66084400 | $166.42 | Special order, ships in 7-14 days |
| 17 | 10902170 | Ferrari Screw - 10902170 | $0.46 | Special order, ships in 7-14 days |
| 18 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
| 18 | 12643770 | Ferrari Washer - 12643770 | Superseded | Order 12648978 instead |
| 19 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead | |
| 10516471 | Ferrari Washer - 10516471 | Superseded | Order 127494 instead | |
| 10516473 | Ferrari Washer - 10516473 | Superseded | Order 127494 instead | |
| 10516477 | Ferrari Washer - 10516477 | Superseded | Order 127494 instead | |
| - | 66927000 | Ferrari Series Of Outer Fire -Proof Insulation - 66927000 | $1,911.57 | Special order, ships in 7-14 days |
