Ferrari 575M Maranello — Dashboard Drawer (diagram 128)

Exploded view of the dashboard drawer on the Ferrari 575M Maranello, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

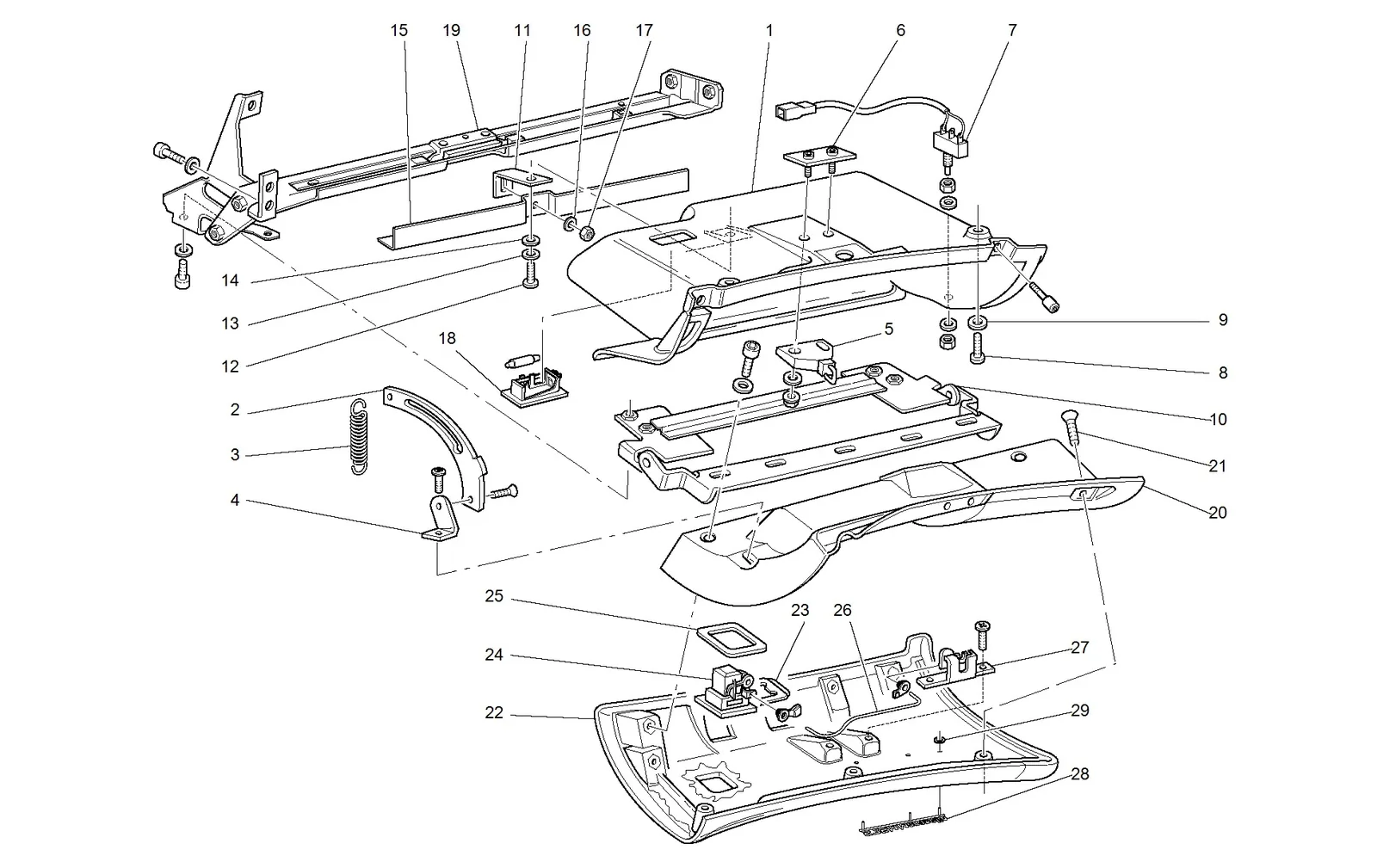

Ferrari 575M Maranello Dashboard Drawer exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
166617500Ferrari Dashboard Drawer LHD - 66617500Price on requestContact us for price and availability
166283100Ferrari Dashboard Drawer LHD - 66283100$930.12Special order, ships in 7-14 days
166638600Ferrari Dashboard Drawer RHD - 66638600Price on requestContact us for price and availability
166632200Ferrari Dashboard Drawer RHD - 66632200$2,447.75Special order, ships in 7-14 days
263765700Ferrari Lever - 63765700$23.23Special order, ships in 7-14 days
363876700Ferrari Spring - 63876700$9.76Special order, ships in 7-14 days
464580800Ferrari Bracket - 64580800$127.27Special order, ships in 7-14 days
465024600Ferrari Bracket - 65024600$73.41Special order, ships in 7-14 days
565258900Ferrari Striker Plate - 65258900$83.20Special order, ships in 7-14 days
663765300Ferrari Plate - 63765300$7.32Special order, ships in 7-14 days
7184403Ferrari Micro Switch - 184403$97.88Special order, ships in 7-14 days
813275977Ferrari Screw - 13275977$3.03Special order, ships in 7-14 days
910519478Ferrari Washer - 10519478$16.83Available, ships in 3-6 days
1065026800Ferrari Glove Box Hinge - 65026800$587.44Special order, ships in 7-14 days
1066839700Ferrari Hinge - 66839700$367.14Special order, ships in 7-14 days
1165115900Ferrari Bracket - 65115900$17.12Special order, ships in 7-14 days
1213272272Ferrari Screw - 13272272Price on requestContact us for price and availability
1312599076Ferrari Screw - 12599076Price on requestContact us for price and availability
1412643724Ferrari/Maserati Washer - 12643724$0.20In stock
1565366000Ferrari Angle Piece For Insulation Fixing - 65366000$26.89Special order, ships in 7-14 days
1612638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
1612638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
17113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
18139517Ferrari Glove Box Dome Lamp - 139517Price on requestContact us for price and availability
1966839400Ferrari Bracket - 66839400$367.14Special order, ships in 7-14 days
1966831800Ferrari Bracket - 66831800Price on requestContact us for price and availability
2065024900Ferrari Door Frame RHD - 65024900$342.66Special order, ships in 7-14 days
2067292300Ferrari Door Frame LHD - 67292300$440.56Special order, ships in 7-14 days
2185691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
2165212000Ferrari Screw 5x8 - 65212000SupersededOrder 85691900 instead
2363769000Ferrari Fork - 63769000$9.76Special order, ships in 7-14 days
2464926500Ferrari Glove Box Button - 64926500Price on requestContact us for price and availability
2563768900Ferrari Plate - 63768900$2.59Special order, ships in 7-14 days
2664653900Ferrari Tie Rod - 64653900$39.14Special order, ships in 7-14 days
2665166800Ferrari Tie Rod - 65166800$83.20Special order, ships in 7-14 days
2763768800Ferrari Glove Box Lock - 63768800$575.51Available, ships in 3-6 days
2866284000Ferrari Motif "575M Maranello" - 66284000$193.35Special order, ships in 7-14 days
2965993800Ferrari Clip - 65993800$0.06Available, ships in 3-6 days
13272216Ferrari Screw - 13272216Price on requestContact us for price and availability
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
