Ferrari 575M Maranello — Instruments (diagram 130)

Exploded view of the instruments on the Ferrari 575M Maranello, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

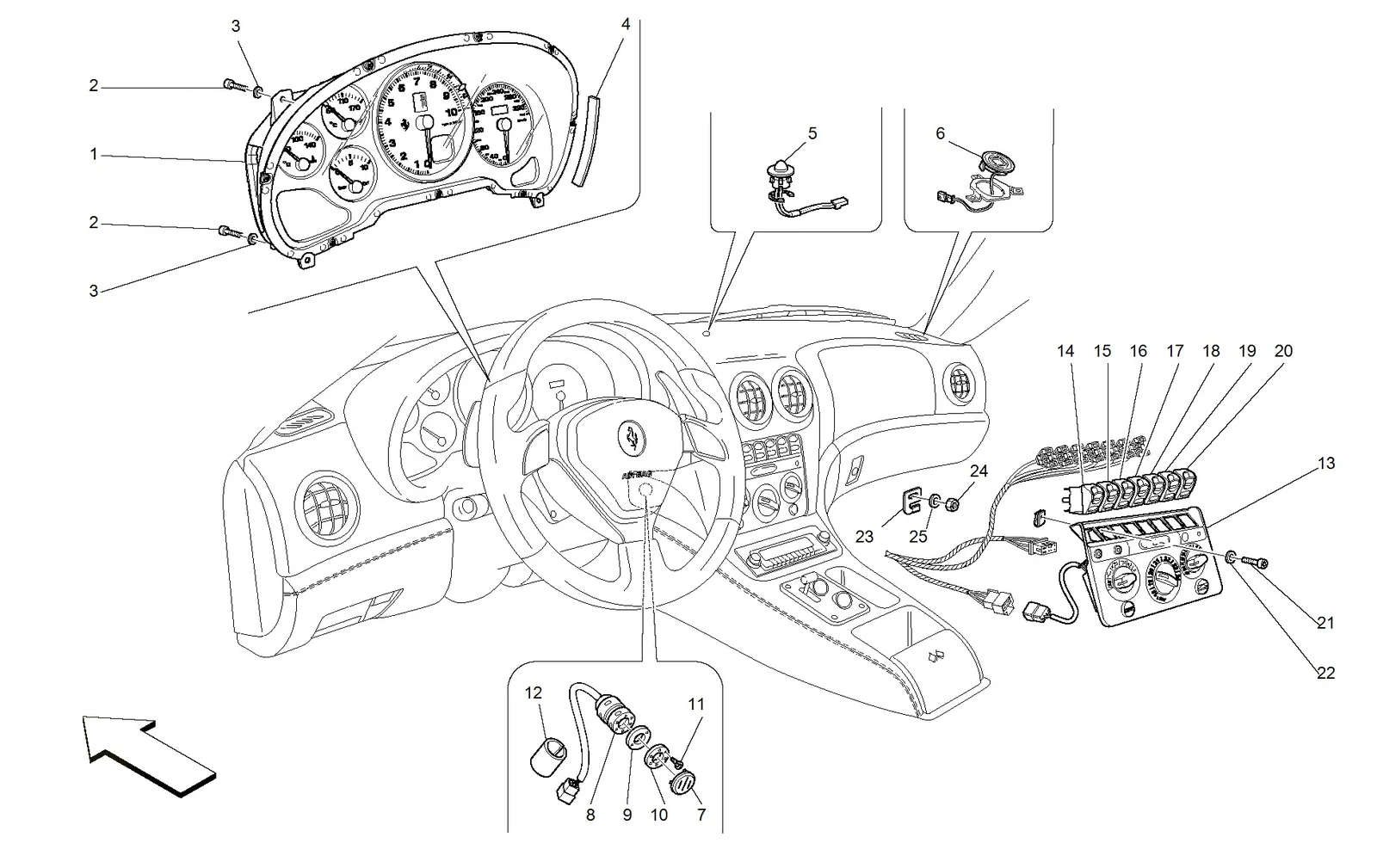

Ferrari 575M Maranello Instruments exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1191202Ferrari Dash Unit - 191202Price on requestContact us to order
1197666Ferrari Dash Unit - 197666Price on requestContact us to order
1211858Ferrari Dash Unit LHD - 211858Price on requestContact us to order
1189433Ferrari Dash Unit - 189433Price on requestContact us to order
1197669Ferrari Dash Unit - 197669Price on requestContact us to order
1211861Ferrari Dash Unit LHD - 211861Price on requestContact us to order
1192235Ferrari Dash Unit - 192235Price on requestContact us to order
1197667Ferrari Dash Unit - 197667Price on requestContact us to order
1211859Ferrari Dash Unit - 211859Price on requestContact us to order
1189434Ferrari Dash Unit - 189434Price on requestContact us to order
1197670Ferrari Dash Unit - 197670Price on requestContact us to order
1211862Ferrari Dash Unit - 211862$10,045.18Contact us to order
1192236Ferrari Dash Unit - 192236SupersededOrder 211860 instead
1197668Ferrari Dash Unit - 197668SupersededOrder 211860 instead
1211860Ferrari Dash Unit RHD - 211860$9,257.23Contact us to order
1189435Ferrari Dash Unit - 189435SupersededOrder 211863 instead
1197671Ferrari Dash Unit - 197671SupersededOrder 211863 instead
1211863Ferrari Dash Unit RHD - 211863$10,045.18Contact us to order
215687270Ferrari Screw - 15687270$0.73Available, ships in 3-6 days
314496277Ferrari Washer - 14496277$1.48Available, ships in 3-6 days
467112700Ferrari Felt Spacer - 67112700Price on requestContact us for price and availability
564692400Ferrari Solar Radiation Sensor - 64692400$282.82Special order, ships in 7-14 days
6184678Ferrari Dashboard Speaker - 184678$67.43Special order, ships in 7-14 days
6184679Ferrari Dashboard Speaker - 184679Price on requestContact us for price and availability
763994500Ferrari Grille Cover - 63994500$12.38Available, ships in 3-6 days
863934200Ferrari Temperature Sensor - Interior - 63934200$169.68Special order, ships in 7-14 days
963994700Ferrari Washer - 63994700Price on requestContact us for price and availability
1063994600Ferrari Washer - 63994600Price on requestContact us for price and availability
1115915977Ferrari Screw - 15915977Price on requestContact us for price and availability
12179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
1366280400Ferrari AC Dash Control Unit - Celcius - 66280400Price on requestContact us for price and availability
1366403300Ferrari AC Dash Control Unit - Farenheit - 66403300Price on requestContact us for price and availability
14182899Ferrari LH Window Switch - 182899$619.81Available, ships in 3-6 days
15180732Ferrari Asr Exclusion Switch - 180732$124.81Special order, ships in 7-14 days
16180735Ferrari Sport Switch - 180735Price on requestContact us for price and availability
17180734Ferrari Switch - Heated Rear Window - 180734Price on requestContact us to order
18180733Ferrari Rear Fog Lamp Switch - 180733$210.49Special order, ships in 7-14 days
18180687Ferrari Dummy Switch - 180687Price on requestContact us for price and availability
19182932Ferrari Parking Light Switch - 182932Price on requestContact us for price and availability
20182898Ferrari RH Window Switch - 182898$161.52Special order, ships in 7-14 days
2162771900Ferrari Screw D. 4.2 x 16 TBIC - 62771900$0.54Available, ships in 3-6 days
2212637824Ferrari Washer - 12637824$0.13Available, ships in 3-6 days
23155751Ferrari Clip - 155751$8.49Available, ships in 3-6 days
2413046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
14040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
13046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
64428200Ferrari Screw - 64428200Price on requestContact us for price and availability

All 575M Maranello diagrams
