Ferrari 575M Maranello — Outside Finishings (diagram 132)

Exploded view of the outside finishings on the Ferrari 575M Maranello, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

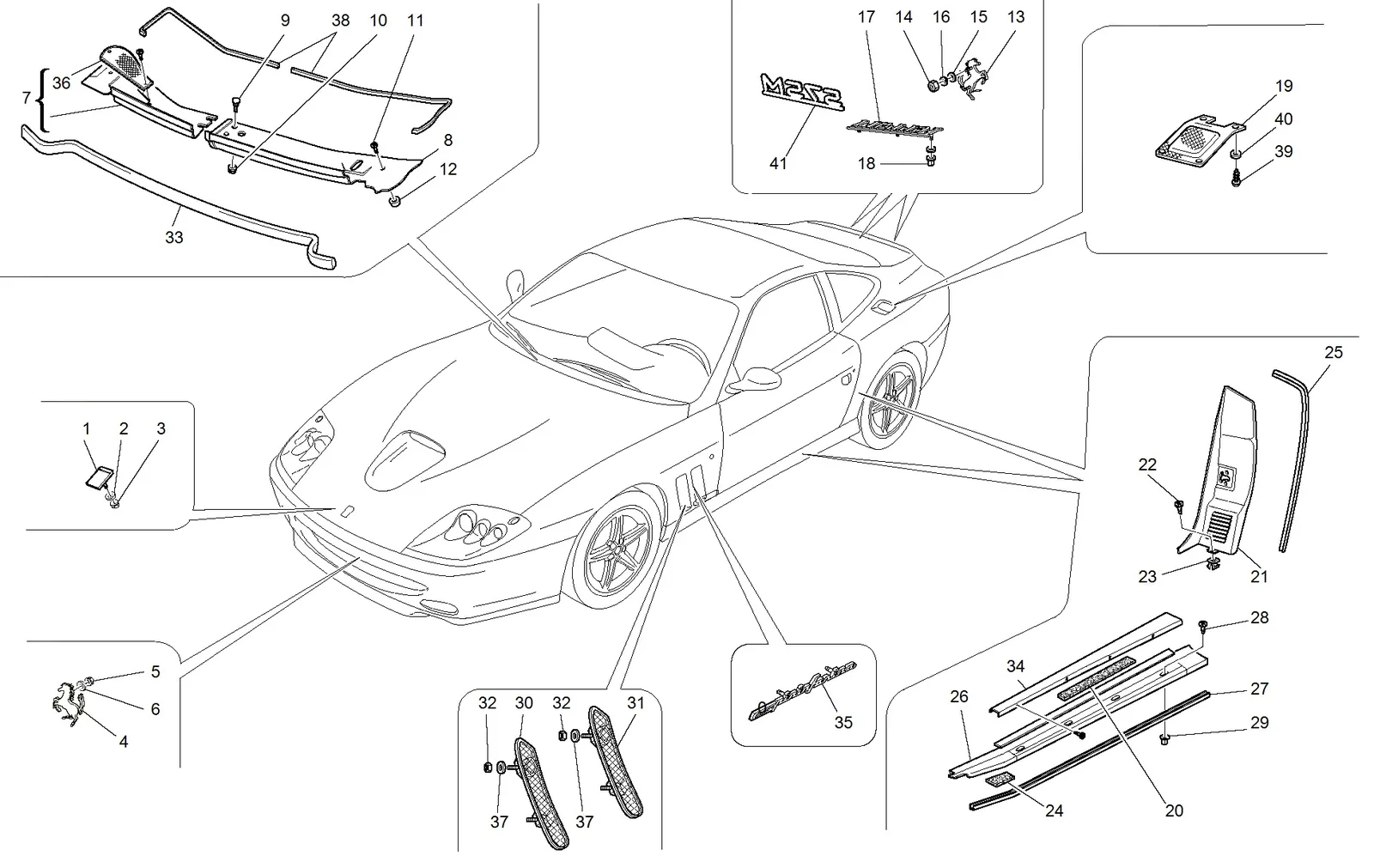

Ferrari 575M Maranello Outside Finishings exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
162673100Ferrari Front Nose Badge -Adhesive Type - 62673100$394.83Available, ships in 3-6 days
212638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
364449900Ferrari Domed Nuts For Underpanel M5 x 8 - 64449900$14.11Available, ships in 3-6 days
3113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
467904300Ferrari Horse Motif - 67904300$102.77Special order, ships in 7-14 days
466406800Ferrari Prancing Horse Motif - 66406800$117.47Special order, ships in 7-14 days
516101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
516101715Ferrari Nut - 16101715SupersededOrder 16101711 instead
612600474Ferrari Washer - 12600474$0.06Available, ships in 3-6 days
764789200Ferrari RH Outer Moulding LHD - 64789200$609.19Special order, ships in 7-14 days
765241700Ferrari RH Outer Moulding RHD - 65241700$1,000.84Special order, ships in 7-14 days
864948500Ferrari LH Outer Moulding LHD - 64948500Price on requestContact us for price and availability
865241900Ferrari LH Outer Moulding RHD - 65241900$1,000.84Special order, ships in 7-14 days
915965814Ferrari Screw - 15965814Price on requestContact us for price and availability
10159601Ferrari Nyloc Nut M6 x 1 x 9 - 159601$0.40Available, ships in 3-6 days
1162771900Ferrari Screw D. 4.2 x 16 TBIC - 62771900$0.54Available, ships in 3-6 days
1262765000Ferrari Bush For Armrest - 62765000$3.89Available, ships in 3-6 days
1363233900Ferrari Motif / Prancing Horse Emblem - 63233900$172.03In stock
1462790300Ferrari Nyloc Nut 4x5 - 62790300$0.52Available, ships in 3-6 days
1560995100Ferrari Washer - 60995100$5.44Available, ships in 3-6 days
1610519224Ferrari Washer - 10519224$0.12Available, ships in 3-6 days
1763482200Ferrari Rear Emblem / Motif - 63482200$114.05In stock
1888074800Ferrari Emblem Mounting Clip - 88074800$1.10In stock
1860324506Ferrari Safety Clip - 60324506SupersededOrder 88074800 instead
1966081400Ferrari Rear Wing Intake Grille - 66081400$65.24Special order, ships in 7-14 days
2065357500Ferrari Pad - 65357500$6.29Available, ships in 3-6 days
2164557600Ferrari LH Door Pillar Cover - 64557600$83.16Available, ships in 3-6 days
2164557500Ferrari RH Door Pillar Cover - 64557500Price on requestContact us for price and availability
2216083501Ferrari Trim Screw 4x12 - 16083501$0.12Available, ships in 3-6 days
2314211580Ferrari Clip - 14211580$12.15Available, ships in 3-6 days
2465357600Ferrari Pad - 65357600$15.43Available, ships in 3-6 days
2565182400Ferrari RH Door Gasket - 65182400$132.69Special order, ships in 7-14 days
2565182500Ferrari LH Door Gasket - 65182500$132.69Special order, ships in 7-14 days
2665596800Ferrari LH Kick Plate - 65596800Price on requestContact us for price and availability
2665596700Ferrari RH Kick Plate - 65596700Price on requestContact us for price and availability
2665599700Ferrari Aluminium Shield - 65599700$318.19Special order, ships in 7-14 days
2664552300Ferrari LH Kick Plate - 64552300Price on requestContact us for price and availability
2664552200Ferrari RH Kick Plate - 64552200$318.19Special order, ships in 7-14 days
2764787700Ferrari Rubber For Kick Plate - 64787700$193.96Available, ships in 3-6 days
2862564800Ferrari Screw M6 x 10 - 62564800$4.54Available, ships in 3-6 days
3064656800Ferrari RH Front Grille - 64656800Price on requestContact us for price and availability
3064656900Ferrari LH Front Grille - 64656900Price on requestContact us for price and availability
3164657000Ferrari RH Rear Grille - 64657000$416.48Available, ships in 3-6 days
3164657100Ferrari LH Rear Grille - 64657100$500.40Special order, ships in 7-14 days
3214059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
3214039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
3364718700Ferrari Rubber Gasket - 64718700$191.44Special order, ships in 7-14 days
3465221700Ferrari LH Kick Plate Insert - 65221700$139.49Special order, ships in 7-14 days
3465221600Ferrari RH Kick Plate Insert - 65221600$139.49Special order, ships in 7-14 days
3564780500Ferrari Pininfarina Script Motif - 64780500$116.11Available, ships in 3-6 days
3663897800Ferrari 456/550/575 Pollen Filter - 63897800$131.77In stock
3664241800Ferrari Pollen Filter Complete RHD - 64241800$216.00Available, ships in 3-6 days
3712638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
3712638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
3862948800Ferrari Gasket - 62948800$7.72Available, ships in 3-6 days
3915689675Ferrari Screw - 15689675Price on requestContact us for price and availability
4167966200Ferrari Boot Motif - 67966200$129.70Available, ships in 3-6 days
63213100Ferrari LH Kick Plate Insert - 63213100SupersededOrder 65221700 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
63213000Ferrari RH Kick Plate Insert - 63213000SupersededOrder 65221600 instead
10519201Ferrari Washer - 10519201SupersededOrder 10519224 instead
10519281Ferrari Washer - 10519281SupersededOrder 10519224 instead
12600479Ferrari Washer - 12600479$0.38Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead

All 575M Maranello diagrams
