Ferrari 599 GTB Fiorano — Cooling System - Radiator And Header Tank (diagram 022)

Exploded view of the cooling system - radiator and header tank on the Ferrari 599 GTB Fiorano, with 129 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

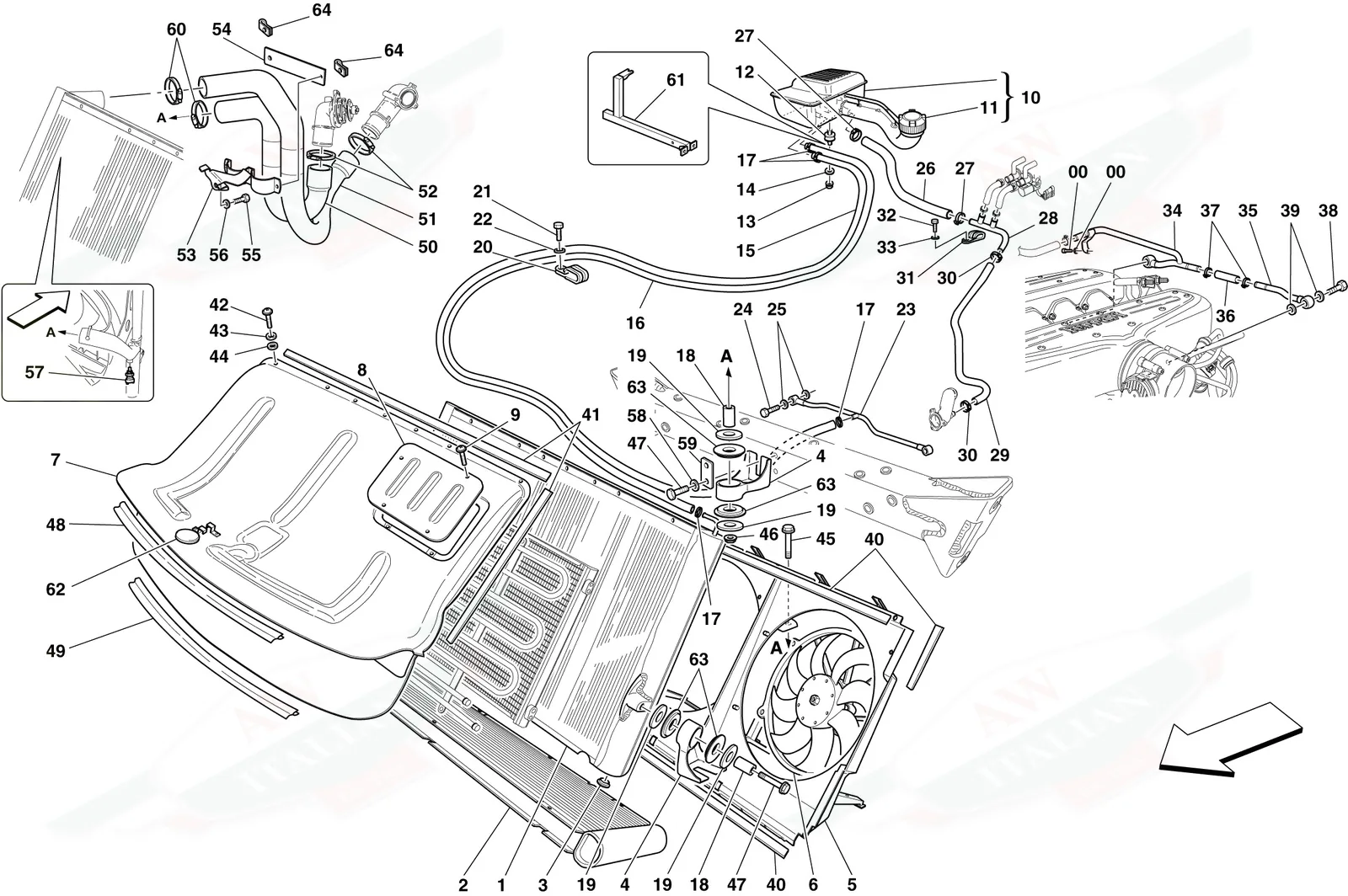

Ferrari 599 GTB Fiorano Cooling System - Radiator And Header Tank exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1227454Ferrari Water Radiator - 227454$7,098.53Special order, ships in 7-14 days
2213499Ferrari Engine Oil Radiator - 213499$6,541.36Special order, ships in 7-14 days
3138926Ferrari Rubber Spacer - 138926$8.72Available, ships in 3-6 days
4213559Ferrari Centre Mounting Bracket For Radiator - 213559$85.64Special order, ships in 7-14 days
5220330Ferrari Fan Cover - 220330$758.79Special order, ships in 7-14 days
6212730Ferrari Electric Fan - 212730$1,076.99Special order, ships in 7-14 days
767891100Ferrari Water Radiator Duct - 67891100$1,150.42Special order, ships in 7-14 days
769370900Ferrari Water Radiator Duct - 69370900$1,272.82Special order, ships in 7-14 days
869012000Ferrari Cover Plate - 69012000$66.07Special order, ships in 7-14 days
985692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
965366700Ferrari Screw 5x12 TBEI - 65366700$1.74Available, ships in 3-6 days
10217364Ferrari Header Tank Complete - 217364SupersededOrder 235263 instead
10235263Ferrari Header Tank Complete - 235263$1,150.42Special order, ships in 7-14 days
11195999Ferrari Header Tank Cap - 195999$83.20Available, ships in 3-6 days
12102947Ferrari Vibration Dampening Support - 102947$8.31In stock
1315896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14127494Ferrari Lock Washer - 127494$0.50In stock
15218593Ferrari Water Hose D. 6-13X1800 - 218593SupersededOrder 899765 instead
15250802Ferrari Pipe From Radiator To Header Tank - 250802SupersededOrder 899765 instead
16218592Ferrari Water Hose D. 6-13X1600 - 218592SupersededOrder 899765 instead
16250801Ferrari Pipe From Engine To Header Tank - 250801SupersededOrder 899765 instead
17177995Ferrari Clamp - 177995$2.18Available, ships in 3-6 days
18216582Ferrari Bush D.17 - 12.6 x 32mm - 216582$9.56Special order, ships in 7-14 days
18227431Ferrari Bush D.17-8.5 L.32Mm - 227431$8.03Available, ships in 3-6 days
19227430Ferrari Washer D.50-8.5 - 227430$4.12Available, ships in 3-6 days
19216581Ferrari Washer D.50-12. - 216581$4.10Special order, ships in 7-14 days
2010442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
2116286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
2212620474Ferrari Wavy Washer - 12620474$0.12Available, ships in 3-6 days
23220821Ferrari Water Tube - 220821$149.29Special order, ships in 7-14 days
24211847Ferrari Pipe Union - 211847$327.81Special order, ships in 7-14 days
2510260160Ferrari Copper Washer D. 10 - 14 x 1 - 10260160$1.99Available, ships in 3-6 days
26218148Ferrari Pipe From Connector To Header Tank - 218148$41.59Special order, ships in 7-14 days
27186680Ferrari Pipe Clip - 186680$2.80Special order, ships in 7-14 days
2867944600Ferrari 4-Way Connector - 67944600$132.15Special order, ships in 7-14 days
29202612Ferrari Preformed Pipe D.20-28 - 202612SupersededOrder 260570 instead
29232219Ferrari Preformed Pipe D.20-28 - 232219SupersededOrder 260570 instead
29254103Ferrari Preformed Pipe D.20-28 - 254103SupersededOrder 260570 instead
3013000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
3110441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
3216296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
3312601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
34224464Ferrari RH Cylinder Head Water Pipe - 224464SupersededOrder 248423 instead
34229341Ferrari RH Cylinder Head Water Pipe - 229341SupersededOrder 248423 instead
34239981Ferrari RH Cylinder Head Water Pipe - 239981SupersededOrder 248423 instead
34248423Ferrari RH Cylinder Head Water Pipe - 248423$611.91Special order, ships in 7-14 days
35210980Ferrari LH Cylinder Head Water Pipe - 210980SupersededOrder 239553 instead
35239553Ferrari LH Cylinder Head Water Pipe - 239553$514.01Special order, ships in 7-14 days
36210726Ferrari Connector Pipe - 210726SupersededOrder 235080 instead
36235080Ferrari Rubber Sleeve H2O D.14.5X - 235080$102.77Special order, ships in 7-14 days
36203784Ferrari Rubber Sleeve For H2o D.14.5 - 203784SupersededOrder 235080 instead
37178053Ferrari Clip - 178053$2.64In stock
3713433370Ferrari Clip - 13433370$1.61Available, ships in 3-6 days
38203787Ferrari Union - 203787$17.38Special order, ships in 7-14 days
3910259960Ferrari Copper Washer - 10259960$1.21In stock
40217759Ferrari Rubber 100X10x3mm - 217759$10.77Special order, ships in 7-14 days
40217760Ferrari Rubber 40X10x3mm - 217760$10.77Special order, ships in 7-14 days
40225467Ferrari Rubber 410X10x3mm - 225467$21.51Special order, ships in 7-14 days
40225468Ferrari Rubber 200X10x3mm - 225468$21.51Special order, ships in 7-14 days
4169250700Ferrari Upper Gasket - 69250700$4.10Available, ships in 3-6 days
4169250800Ferrari Lower Gasket - 69250800$4.10Available, ships in 3-6 days
4169250900Ferrari Lateral Gasket - 69250900$10.41Available, ships in 3-6 days
4169850200Ferrari Center Gasket - 69850200$4.10Available, ships in 3-6 days
4216285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
43166467Ferrari Wavy Washer D. 5 - 10 mm - 166467$1.80Available, ships in 3-6 days
4412638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
4516287734Ferrari Screw M8 x 50 - 16287734$2.59Available, ships in 3-6 days
4516290234Ferrari Screw 12X1.25X - 16290234$3.24Special order, ships in 7-14 days
4614058519Ferrari Flanged Nut M8 x 8 - 14058519$0.46Available, ships in 3-6 days
4614058729Ferrari Nut 12X1.25 - 14058729$3.03Special order, ships in 7-14 days
4716287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
4869365000Ferrari Guard - 69365000SupersededOrder 80783800 instead
4880783800Ferrari Gasket - 80783800$145.74Special order, ships in 7-14 days
4869966800Ferrari Gasket L.338mm - 69966800SupersededOrder 80784000 instead
4880784000Ferrari Gasket L.338mm - 80784000$52.19Special order, ships in 7-14 days
4869966900Ferrari Gasket L.518mm - 69966900$69.59Special order, ships in 7-14 days
4880784100Ferrari Gasket L.518mm - 80784100$630.95Special order, ships in 7-14 days
4969365100Ferrari Guard - 69365100SupersededOrder 80783900 instead
4980783900Ferrari Gasket - 80783900$50.03Special order, ships in 7-14 days
50214555Ferrari Water Delivery Pipe - 214555SupersededOrder 251426 instead
50251426Ferrari Water Delivery Pipe - 251426$660.87Special order, ships in 7-14 days
51209972Ferrari Radiator Hose - 209972$954.60Special order, ships in 7-14 days
5213000790Ferrari Hose Clip 40-60cm - 13000790$1.44Available, ships in 3-6 days
53226317Ferrari Support Sleeve - 226317$97.88Special order, ships in 7-14 days
54226395Ferrari Support Sleeve - 226395SupersededOrder 226394 instead
54226394Ferrari Support Seal - 226394$19.30Special order, ships in 7-14 days
5612647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
57180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
5812601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
59223456Ferrari Plate - 223456$112.57Special order, ships in 7-14 days
6013000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
6168574500Ferrari Bracket - 68574500$215.38Special order, ships in 7-14 days
6214507387Ferrari Plug - 14507387$3.89Special order, ships in 7-14 days
6461081400Ferrari Clip M.5 - 61081400Price on requestContact us for price and availability
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
242640Ferrari Connector Pipe - 242640SupersededOrder 235080 instead
12180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
13432908Ferrari Pipe Clip - 13432908Price on requestContact us for price and availability
13432970Ferrari Pipe Clip - 13432970$2.80Special order, ships in 7-14 days
899765Ferrari Pipe From Radiator To Header Tank - 899765$660.87Special order, ships in 7-14 days
11617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
260570Ferrari Tubo Acqua Preform. Cpl Di G - 260570$465.05Special order, ships in 7-14 days
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 599 GTB Fiorano diagrams
