Ferrari 599 GTO — Antitheft System Ecus And Devices (diagram 138)

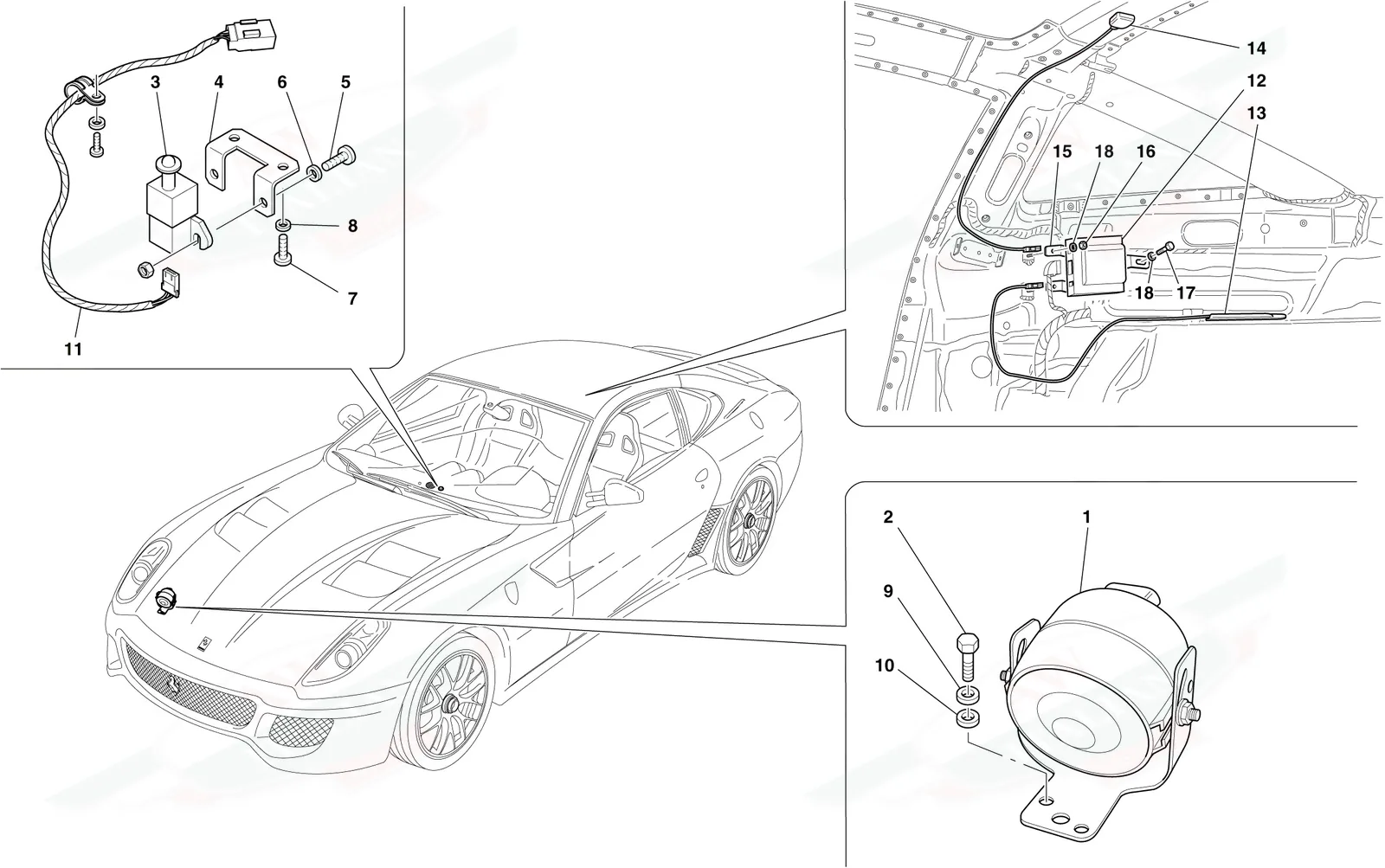

Exploded view of the antitheft system ecus and devices on the Ferrari 599 GTO, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 201541 | Ferrari Antitheft Siren ECU Complete - 201541 | Superseded | Order 295120 instead |
| 1 | 295120 | Ferrari Antitheft Siren ECU Complete - 295120 | $391.61 | Available, ships in 3-6 days |
| 1 | 242307 | Ferrari Antitheft Siren ECU Complete - 242307 | Superseded | Order 295120 instead |
| 2 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 3 | 239744 | Ferrari Two-Tone Infoled - 239744 | $193.35 | Special order, ships in 7-14 days |
| 4 | 69157200 | Ferrari Bracket - 69157200 | $21.51 | Special order, ships in 7-14 days |
| 5 | 15689675 | Ferrari Screw - 15689675 | Price on request | Contact us for price and availability |
| 5 | 15643970 | Ferrari Screw TBIC 4.2x9.5 - 15643970 | $0.46 | Available, ships in 3-6 days |
| 6 | 12601174 | Ferrari Wavy Washer 5mm - 12601174 | $0.12 | Available, ships in 3-6 days |
| 7 | 13273977 | Ferrari Screw - 13273977 | $0.52 | Available, ships in 3-6 days |
| 8 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 9 | 12620374 | Ferrari Washer 5.30-12x0.8 - 12620374 | $0.12 | Available, ships in 3-6 days |
| 10 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 11 | 216212 | Ferrari Infoled Cable - 216212 | $48.93 | Special order, ships in 7-14 days |
| 11 | 264959 | Ferrari Infoled Cable - 264959 | Superseded | Order 216212 instead |
| 12 | 235627 | Ferrari ADR5 Satellite Anti-Theft System ECU - 235627 | Price on request | Contact us for price and availability |
| 12 | 316923 | Ferrari ADR10 Satellite Anti-Theft System ECU - 316923 | $4,991.11 | Special order, ships in 7-14 days |
| 13 | 226131 | Ferrari GSM Antenna - 226131 | $97.88 | Special order, ships in 7-14 days |
| 14 | 226130 | Ferrari GPS Antenna - 226130 | $158.81 | Available, ships in 3-6 days |
| 15 | 217835 | Ferrari Control Unit Fixing Bracket - 217835 | $318.19 | Special order, ships in 7-14 days |
| 16 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 16 | 15896210 | Ferrari Nut 6x5 - 15896210 | $0.08 | Available, ships in 3-6 days |
| 17 | 10902424 | Ferrari Bolt M6 x 20 - 10902424 | $0.27 | Available, ships in 3-6 days |
| 18 | 12647727 | Ferrari Washer 6X21 - 12647727 | $0.12 | Special order, ships in 7-14 days |
| 307603 | Ferrari ADR10 Satellite Anti-Theft System ECU - 307603 | $6,529.70 | Special order, ships in 7-14 days | |
| 277442 | Ferrari ADR5 Satellite Anti-Theft System ECU - 277442 | Superseded | Order 316923 instead | |
| 188253 | Ferrari Bicolor Warning Light - 188253 | Superseded | Order 239744 instead | |
| 10902324 | Ferrari Screw M6 x 18 - 10902324 | $0.27 | Available, ships in 3-6 days | |
| 12601171 | Ferrari Washer - 12601171 | Superseded | Order 12601174 instead | |
| 12604174 | Ferrari Washer - 12604174 | $0.06 | Available, ships in 3-6 days | |
| 12604178 | Ferrari Washer - 12604178 | Superseded | Order 12601174 instead | |
| 12605270 | Ferrari Washer - 12605270 | Superseded | Order 12601174 instead | |
| 12605274 | Ferrari Washer - 12605274 | Superseded | Order 12601174 instead | |
| 660525 | Ferrari Washer - 660525 | Superseded | Order 12601174 instead | |
| 12647729 | Ferrari Washer 6.45-21X - 12647729 | $0.13 | Special order, ships in 7-14 days | |
| 12601179 | Ferrari Wavy Washer 5mm - 12601179 | Superseded | Order 12601174 instead |
