Ferrari 599 SA Aperta — Tyre Pressure Monitoring System (diagram 048)

Exploded view of the tyre pressure monitoring system on the Ferrari 599 SA Aperta, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

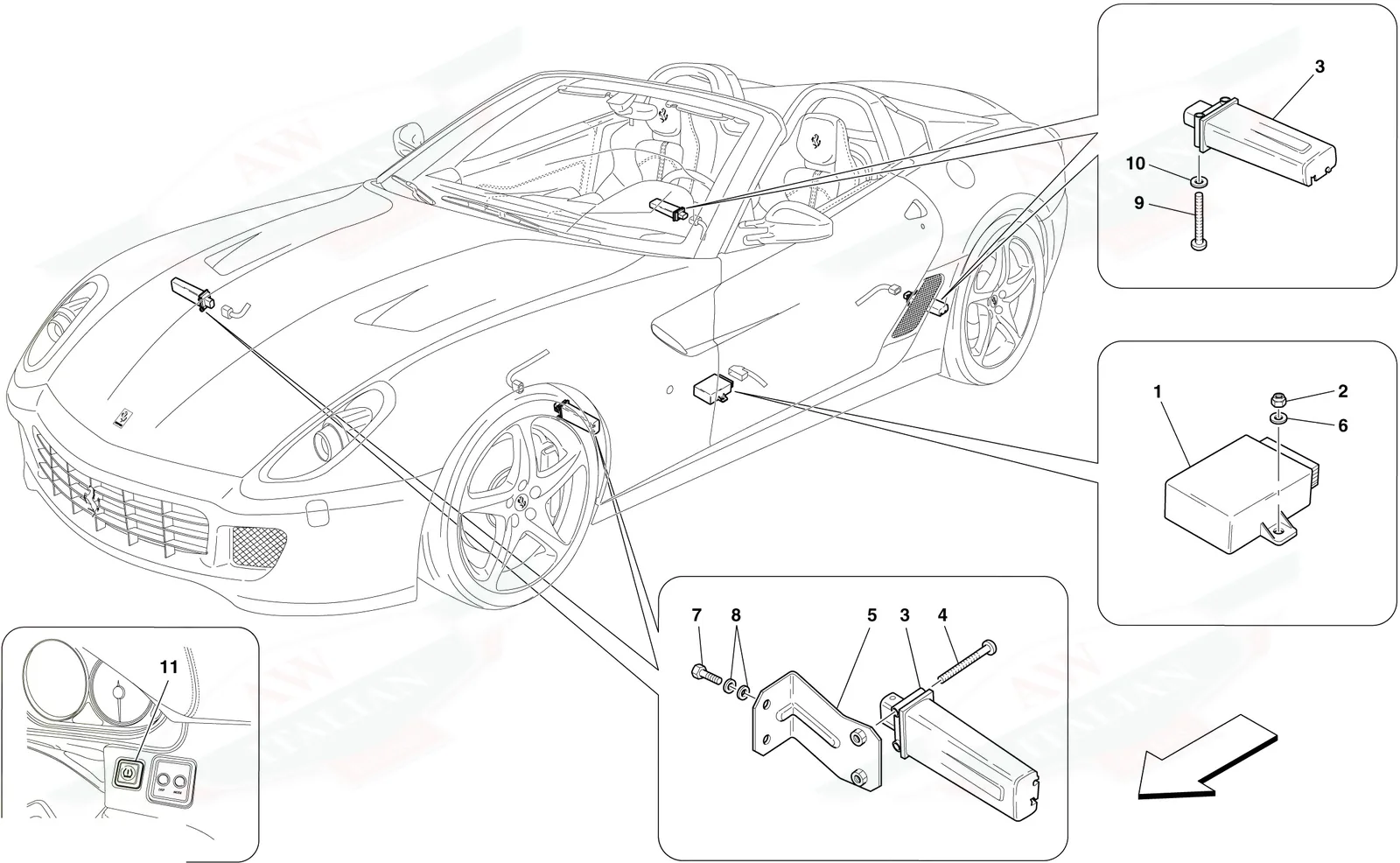

Ferrari 599 SA Aperta Tyre Pressure Monitoring System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1235303Ferrari Tyre Pressure Control Unit - 235303Price on requestContact us for price and availability
214059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
214039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
3224562Ferrari Tyre Pressure Control Antenna - 224562$304.58Special order, ships in 7-14 days
3224563Ferrari Tyre Pressure Control Antenna - 224563$282.82Available, ships in 3-6 days
413272824Ferrari Screw - 13272824Price on requestContact us for price and availability
5191535Ferrari Bracket - 191535$24.21Special order, ships in 7-14 days
612620374Ferrari Washer 5.30-12x0.8 - 12620374$0.12Available, ships in 3-6 days
716285014Ferrari Screw - 16285014$3.47Available, ships in 3-6 days
812601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
965071800Ferrari Screw M5 x 0.8 x 40 TBEI - 65071800$2.59Available, ships in 3-6 days
11208848Ferrari Tyre Gauge Switch - 208848$110.13Special order, ships in 7-14 days
244750Ferrari Bracket - 244750SupersededOrder 191535 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
191443Ferrari Tyre Pressure Control Antenna - 191443SupersededOrder 224562 instead
191444Ferrari Tyre Pressure Control Antenna - 191444$228.43Available, ships in 3-6 days
200811Ferrari Tyre Pressure Control Unit - 200811Price on requestContact us for price and availability
221360Ferrari Tyre Pressure Control Unit - 221360Price on requestContact us for price and availability
184615Ferrari Tyre Pressure Gauge Switch - 184615SupersededOrder 208848 instead
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
12605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
12601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead
