Ferrari 599 SA Aperta — Luggage Compartment Insulation (diagram 111)

Exploded view of the luggage compartment insulation on the Ferrari 599 SA Aperta, with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

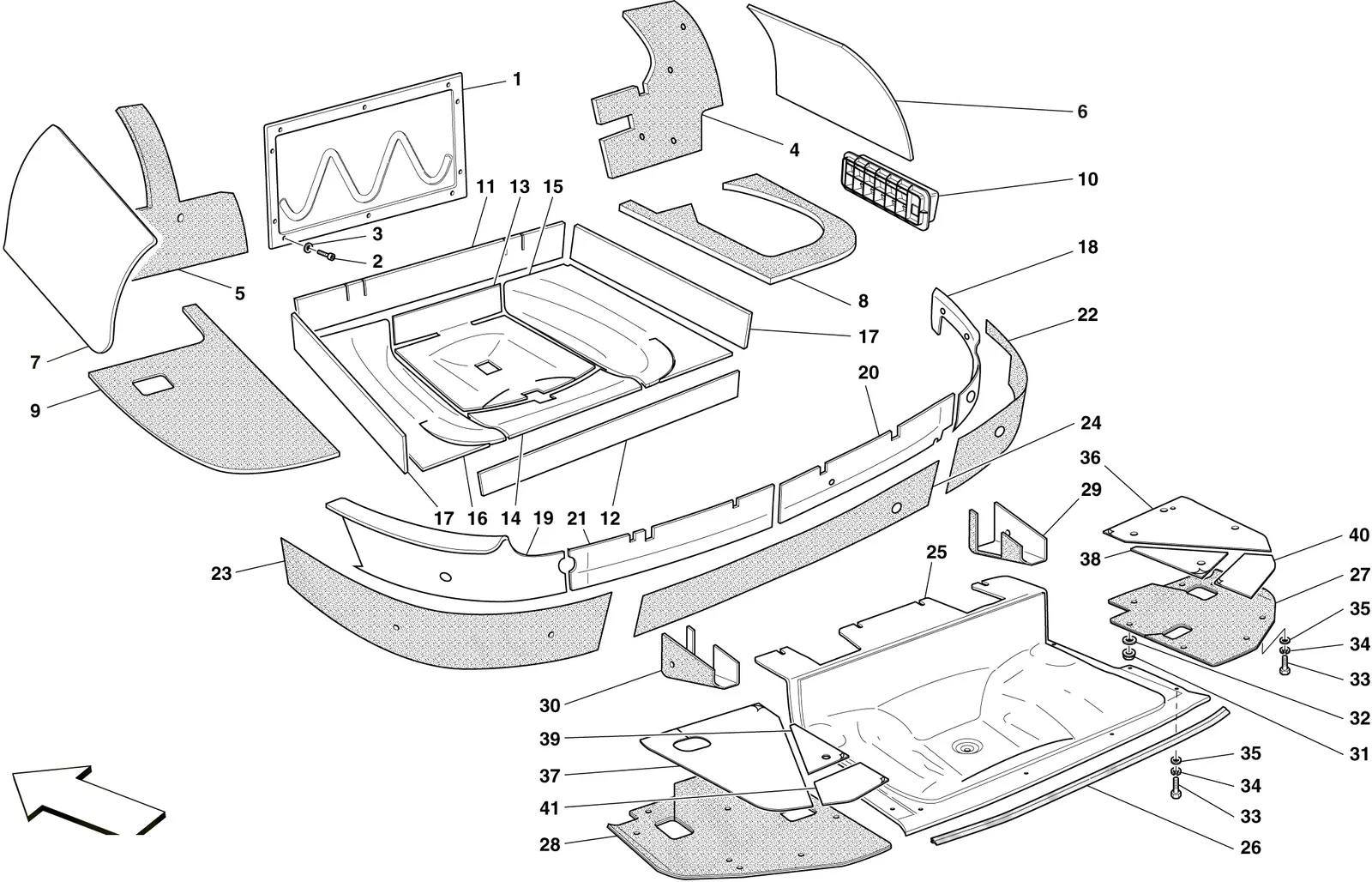

Ferrari 599 SA Aperta Luggage Compartment Insulation exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
169356700Ferrari Shield - 69356700$200.69Special order, ships in 7-14 days
168570600Ferrari Shield - 68570600$171.31Special order, ships in 7-14 days
213272011Ferrari Screw 4x12 - 13272011$0.44Available, ships in 3-6 days
312642801Ferrari Washer - 12642801$0.19Available, ships in 3-6 days
480210200Ferrari RH Wheelhouse Insulation - 80210200$163.97Special order, ships in 7-14 days
580210300Ferrari LH Wheelhouse Insulation - 80210300$203.15Special order, ships in 7-14 days
680210400Ferrari RH Fender Insulation - 80210400$183.56Special order, ships in 7-14 days
780210500Ferrari LH Fender Insulation - 80210500$183.56Special order, ships in 7-14 days
880210600Ferrari RH Lateral Insulation - 80210600$269.23Special order, ships in 7-14 days
980210700Ferrari LH Lateral Insulation - 80210700$514.01Special order, ships in 7-14 days
1067163000Ferrari Air Outlet - 67163000$34.25Special order, ships in 7-14 days
1180210800Ferrari Front Spare Wheel Insulation - 80210800$269.23Special order, ships in 7-14 days
1280210900Ferrari Insulation - 80210900$68.50Special order, ships in 7-14 days
1380211000Ferrari Spare Wheel Insulation - 80211000$391.61Special order, ships in 7-14 days
1480211100Ferrari Rear Insulation - 80211100$391.61Special order, ships in 7-14 days
1580211200Ferrari RH Lateral Insulation - 80211200$68.50Special order, ships in 7-14 days
1680211300Ferrari LH Lateral Insulation - 80211300$68.50Special order, ships in 7-14 days
1780211400Ferrari Lateral Spare Wheel Insulation - 80211400$110.13Special order, ships in 7-14 days
1868570200Ferrari RH Rear Insulation - 68570200$214.59Available, ships in 3-6 days
1880211500Ferrari RH Rear Insulation - 80211500SupersededOrder 68570200 instead
1980211600Ferrari LH Rear Insulation - 80211600$163.97Available, ships in 3-6 days
2080211700Ferrari RH Vertical Insulation - 80211700$342.66Special order, ships in 7-14 days
2180211800Ferrari LH Vertical Insulation - 80211800$342.66Special order, ships in 7-14 days
2280211900Ferrari RH Insulation - 80211900$73.41Special order, ships in 7-14 days
2380212000Ferrari LH Insulation - 80212000$80.75Special order, ships in 7-14 days
2480212100Ferrari Insulation - 80212100$83.20Special order, ships in 7-14 days
2569715700Ferrari Spare Wheel Heat Shield Complete - 69715700$2,676.21Available, ships in 3-6 days
2668315100Ferrari Gasket - 68315100$10.41Available, ships in 3-6 days
2780212400Ferrari RH Shelf Insulation - 80212400Price on requestContact us for price and availability
2880212500Ferrari LH Shelf Insulation - 80212500$367.14Special order, ships in 7-14 days
2980212600Ferrari RH Insulation - 80212600Price on requestContact us for price and availability
3080212700Ferrari LH Insulation - 80212700$58.73Special order, ships in 7-14 days
3114059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
3212648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
3212643770Ferrari Washer - 12643770SupersededOrder 12648978 instead
3310902380Ferrari Screw - 10902380$4.33Special order, ships in 7-14 days
34127494Ferrari Lock Washer - 127494$0.50In stock
3680212800Ferrari RH Lower Shield - 80212800$660.87Special order, ships in 7-14 days
3780212900Ferrari LH Lower Shield - 80212900$660.87Special order, ships in 7-14 days
3880213000Ferrari RH Lower Inner Shield - 80213000$193.35Special order, ships in 7-14 days
3980213100Ferrari LH Lower Inner Shield - 80213100$193.35Special order, ships in 7-14 days
4080213200Ferrari RH Lower Rear Shield - 80213200$41.59Special order, ships in 7-14 days
4180213300Ferrari LH Lower Rear Shield - 80213300$29.34Special order, ships in 7-14 days
68569000Ferrari Front Spare Wheel Insulation - 68569000SupersededOrder 80210800 instead
68569500Ferrari Insulation - 68569500SupersededOrder 80210900 instead
68570100Ferrari Insulation - 68570100SupersededOrder 80211100 instead
68572900Ferrari Insulation - 68572900SupersededOrder 80212100 instead
68569100Ferrari Lateral Spare Wheel Insulation - 68569100SupersededOrder 80211400 instead
68569400Ferrari LH Fender Insulation - 68569400$342.66Special order, ships in 7-14 days
68572800Ferrari LH Insulation - 68572800SupersededOrder 80212000 instead
69701600Ferrari LH Insulation - 69701600SupersededOrder 80212700 instead
68568600Ferrari LH Lateral Insulation - 68568600SupersededOrder 80211300 instead
68570000Ferrari LH Lateral Insulation - 68570000SupersededOrder 80210700 instead
69833600Ferrari LH Lower Inner Shield - 69833600SupersededOrder 80213100 instead
69833700Ferrari LH Lower Rear Shield - 69833700$34.25Special order, ships in 7-14 days
69716600Ferrari LH Lower Shield - 69716600$110.13Special order, ships in 7-14 days
68572500Ferrari LH Shelf Insulation - 68572500SupersededOrder 80212500 instead
69367800Ferrari LH Vertical Insulation - 69367800SupersededOrder 80211800 instead
68570500Ferrari LH Wheelhouse Insulation - 68570500SupersededOrder 80210300 instead
68572700Ferrari RH External Insulation Panel - 68572700SupersededOrder 80211900 instead
68569300Ferrari RH Fender Insulation - 68569300SupersededOrder 80210400 instead
68572400Ferrari RH Insulation - 68572400Price on requestContact us for price and availability
69701500Ferrari RH Insulation - 69701500Price on requestContact us for price and availability
68568500Ferrari RH Lateral Insulation - 68568500SupersededOrder 80211200 instead
68569900Ferrari RH Lateral Insulation - 68569900SupersededOrder 80210600 instead
69833400Ferrari RH Lower Inner Shield - 69833400SupersededOrder 80213000 instead
69833500Ferrari RH Lower Rear Shield - 69833500SupersededOrder 80213200 instead
69716500Ferrari RH Lower Shield - 69716500SupersededOrder 80212800 instead
68569200Ferrari RH Vertical Insulation - 68569200$342.66Special order, ships in 7-14 days
68570400Ferrari RH Wheelhouse Insulation - 68570400SupersededOrder 80210200 instead
68568700Ferrari Spare Wheel Insulation - 68568700SupersededOrder 80211000 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead

All 599 SA Aperta diagrams
